TE Connectivity HPI Series Vertical Cable PCB Header, 11 Contact(s), 1.5 mm Pitch, 1 Row(s)
- RS Stock No.:
- 508-328
- Mfr. Part No.:
- 1-1775441-1
- Brand:
- TE Connectivity
Subtotal (1 bag of 1200 units)*
£178.64
(exc. VAT)
£214.37
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £178.64 | £0.149 |
*price indicative
- RS Stock No.:
- 508-328
- Mfr. Part No.:
- 1-1775441-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | HPI | |
| Current | 3A | |
| Pitch | 1.5mm | |
| Number of Contacts | 11 | |
| Housing Material | Thermoplastic | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Mount Type | Cable | |
| Connector System | Wire-to-Wire | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Crimp | |
| Row Pitch | 1.5mm | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UL 94V-0 | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series HPI | ||
Current 3A | ||
Pitch 1.5mm | ||
Number of Contacts 11 | ||
Housing Material Thermoplastic | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Mount Type Cable | ||
Connector System Wire-to-Wire | ||
Minimum Operating Temperature -55°C | ||
Termination Type Crimp | ||
Row Pitch 1.5mm | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UL 94V-0 | ||
Voltage 250 V | ||
- COO (Country of Origin):
- CN

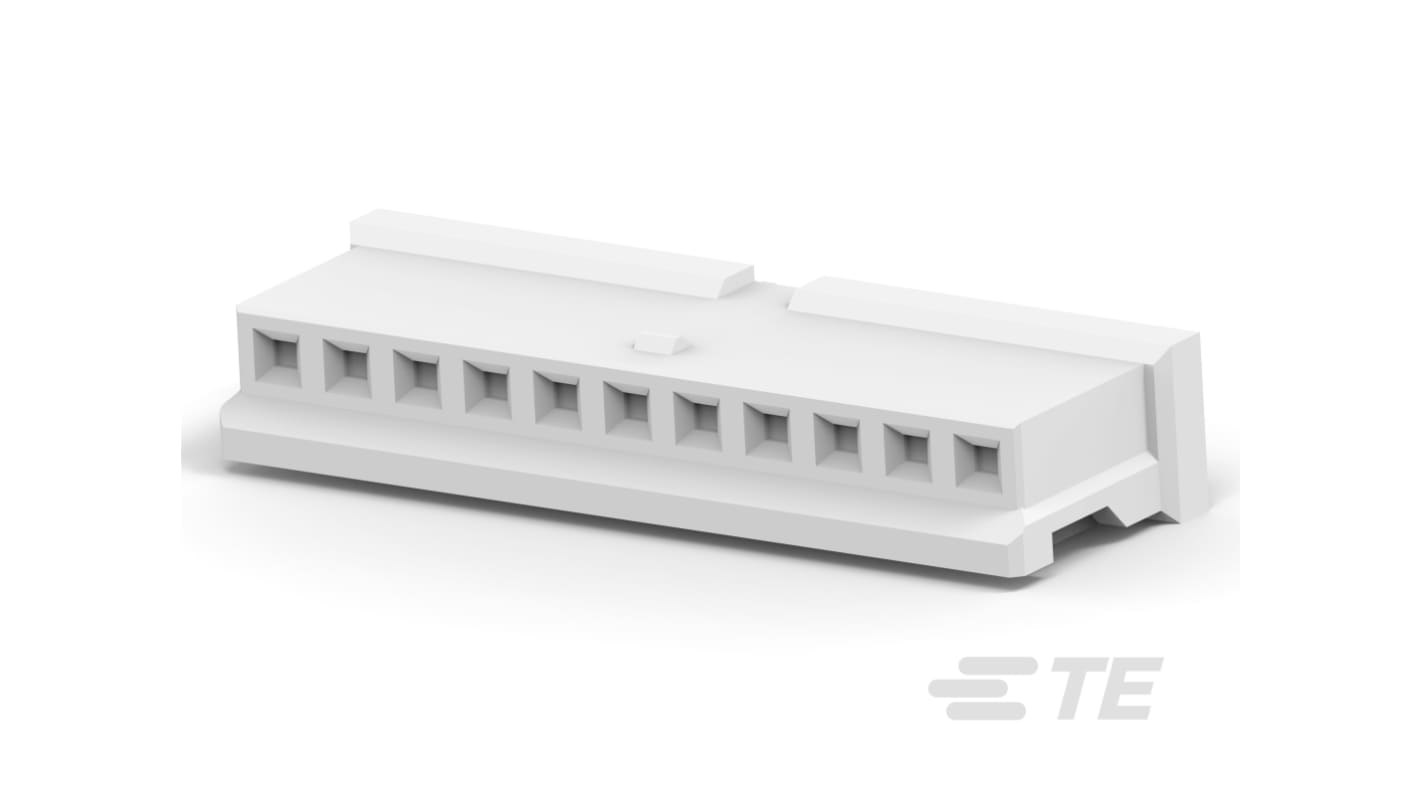

The TE Connectivity Housing receptacle is meticulously designed for crimping wire-to-wire connections. With robust thermoplastic construction and a UL 94V-0 flammability rating, it assures safety and reliability in various applications. Sporting an 11-position configuration and a compact 1.5 mm centreline pitch, this connector excels in space-constrained environments while maintaining performance. Ideal for power and signal circuit applications, it combines functionality with ease of use. Additionally, its cable mount design ensures secure and stable connections, making it a preferred choice among engineers. This connector not only meets industry standards but also pairs seamlessly with a variety of compatible parts, ensuring flexibility in design. Suitable for temperatures ranging from -55 to 105 °C, it upholds its integrity even in demanding conditions.
Designed for crimping to facilitate easy assembly
Offers an 11 position layout for versatile connectivity
Constructed from thermoplastic for enhanced durability
Reduces installation complexity with cable mount design
Complies with significant safety standards for peace of mind
Compatible with other parts in the series for extensive connectivity options
