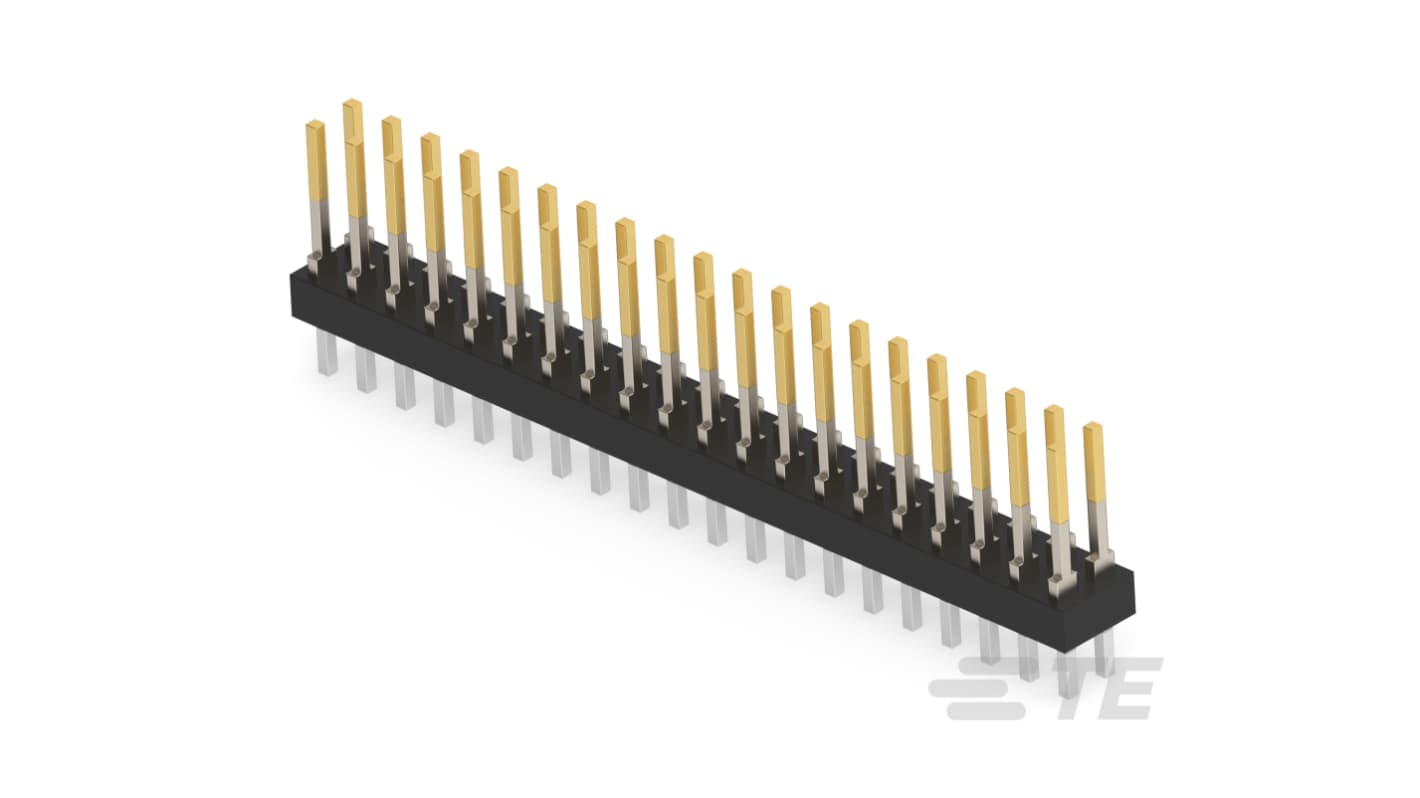

TE Connectivity AMPMODU Series Vertical Board PCB Header, 40 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded
- RS Stock No.:
- 506-992
- Distrelec Article No.:
- 304-53-862
- Mfr. Part No.:
- 2-87227-0
- Brand:
- TE Connectivity
Subtotal (1 pack of 20 units)*
£196.26
(exc. VAT)
£235.51
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £196.26 | £9.813 |
*price indicative
- RS Stock No.:
- 506-992
- Distrelec Article No.:
- 304-53-862
- Mfr. Part No.:
- 2-87227-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | AMPMODU | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Number of Contacts | 40 | |
| Housing Material | Thermoplastic | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Row Pitch | 2.54mm | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Tail Pin Length | 3.18mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series AMPMODU | ||
Current 3A | ||
Pitch 2.54mm | ||
Number of Contacts 40 | ||
Housing Material Thermoplastic | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Board-to-Board | ||
Mount Type Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Row Pitch 2.54mm | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Tail Pin Length 3.18mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- MX
The TE Connectivity PCB Mount Header is an innovative solution designed for vertical, board-to-board connectivity. This component seamlessly integrates with a variety of circuit applications, ensuring reliable performance and efficiency. Its unshrouded header type allows for easy mating with other connectors, offering versatility in different circuit designs, while maintaining a compact footprint. With a 40-position layout and a 2.54 mm centerline, it caters to high-density configurations, making it ideal for space-constrained applications. The robust construction features gold plating for optimum conductivity and durability, ensuring long-lasting connection integrity. Enhanced insulation resistance and dielectric withstand capabilities position this header as a standout choice for contemporary electronic assemblies, while the thermoplastic housing withstands various operational demands.
Designed for board-to-board configurations, simplifying connections between PCBs
Optimized for high-density designs, perfect for compact electronic devices
Unshrouded design facilitates easier mating with compatible connectors
Gold plating enhances conductivity, ensuring reliable performance
Robust thermoplastic housing guarantees durability under various conditions
