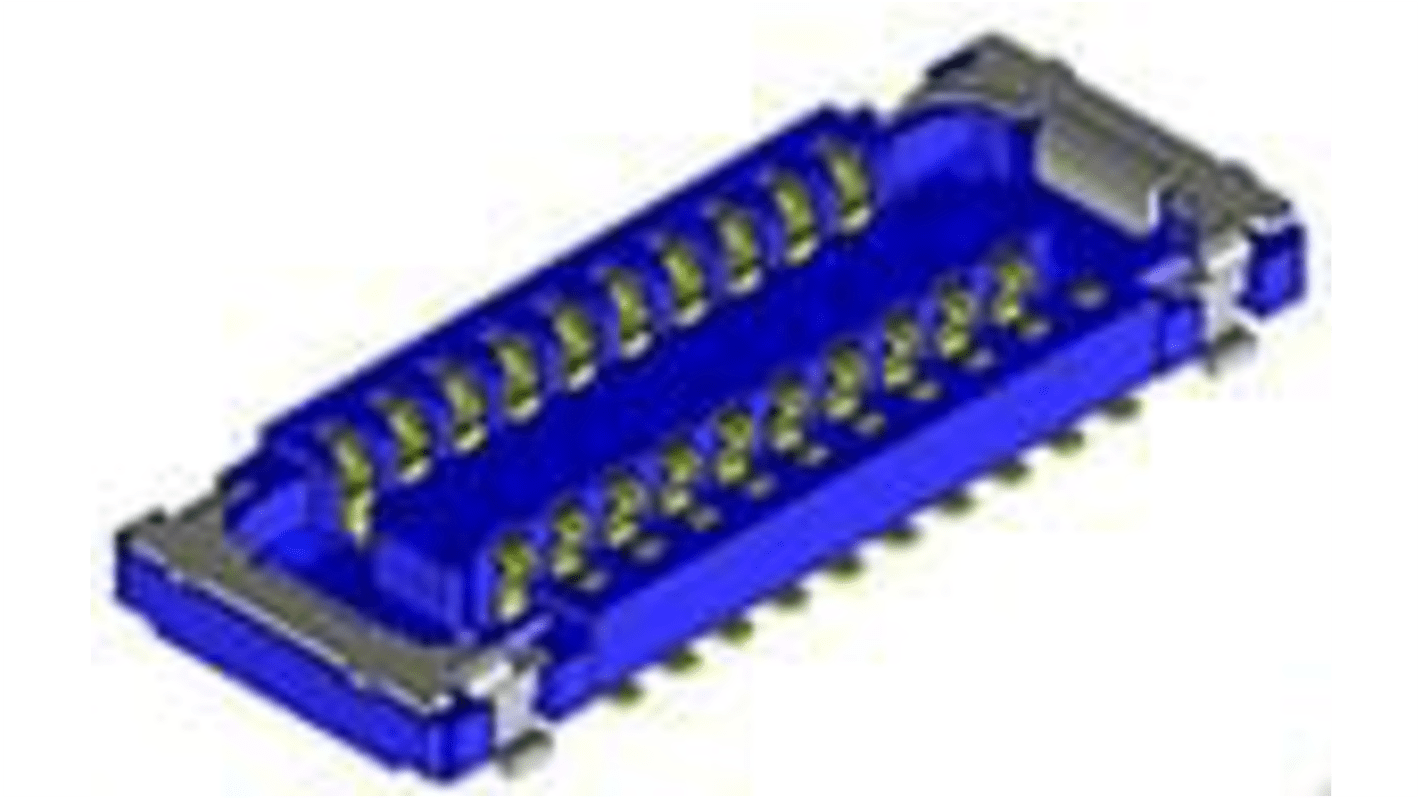

Molex 50377 Series Vertical Board PCB Header, 24 Contact(s), 0.4 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 482-337
- Mfr. Part No.:
- 503772-2410
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£1,585.72
(exc. VAT)
£1,902.86
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,585.72 | £0.529 |
*price indicative
- RS Stock No.:
- 482-337
- Mfr. Part No.:
- 503772-2410
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 50377 | |
| Pitch | 0.4mm | |
| Current | 0.3A | |
| Number of Contacts | 24 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 0.4mm | |
| Termination Type | Surface Mount | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | REACH, RoHS | |
| Voltage | 50 V | |
| Distrelec Product Id | 304-56-504 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 50377 | ||
Pitch 0.4mm | ||
Current 0.3A | ||
Number of Contacts 24 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Board | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 0.4mm | ||
Termination Type Surface Mount | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals REACH, RoHS | ||
Voltage 50 V | ||
Distrelec Product Id 304-56-504 | ||
- COO (Country of Origin):
- JP
The TE Connectivity 0.40mm pitch board-to-board connector epitomises innovation and reliability in compact applications. Designed for seamless integration in electronic devices, it delivers superior performance with a dual-row, vertical orientation and a meticulous 0.80mm stacking height. The surface mount design ensures ease of installation and enhances space efficiency, making it ideal for modern PCB designs. Constructed with a copper alloy metal and gold plating for both mating and termination, this connector not only guarantees robust electrical connections but also enhances the product's durability against environmental stresses. With a focus on compatibility and compliance, it meets stringent RoHS requirements, reassuring customers of its environmental responsibility. Furthermore, the connector supports up to 24 circuits, ensuring versatility in various applications.
Supports up to 30 mating cycles for longevity
Black resin provides a low-halogen option, promoting safer disposal
Designed for signal transmission, ensuring high fidelity of data transfer
Embossed tape on reel packaging enhances protection during shipment
Operates effectively across a temperature range of -40° to +85°C
PCB retention features ensure secure placement on the board
