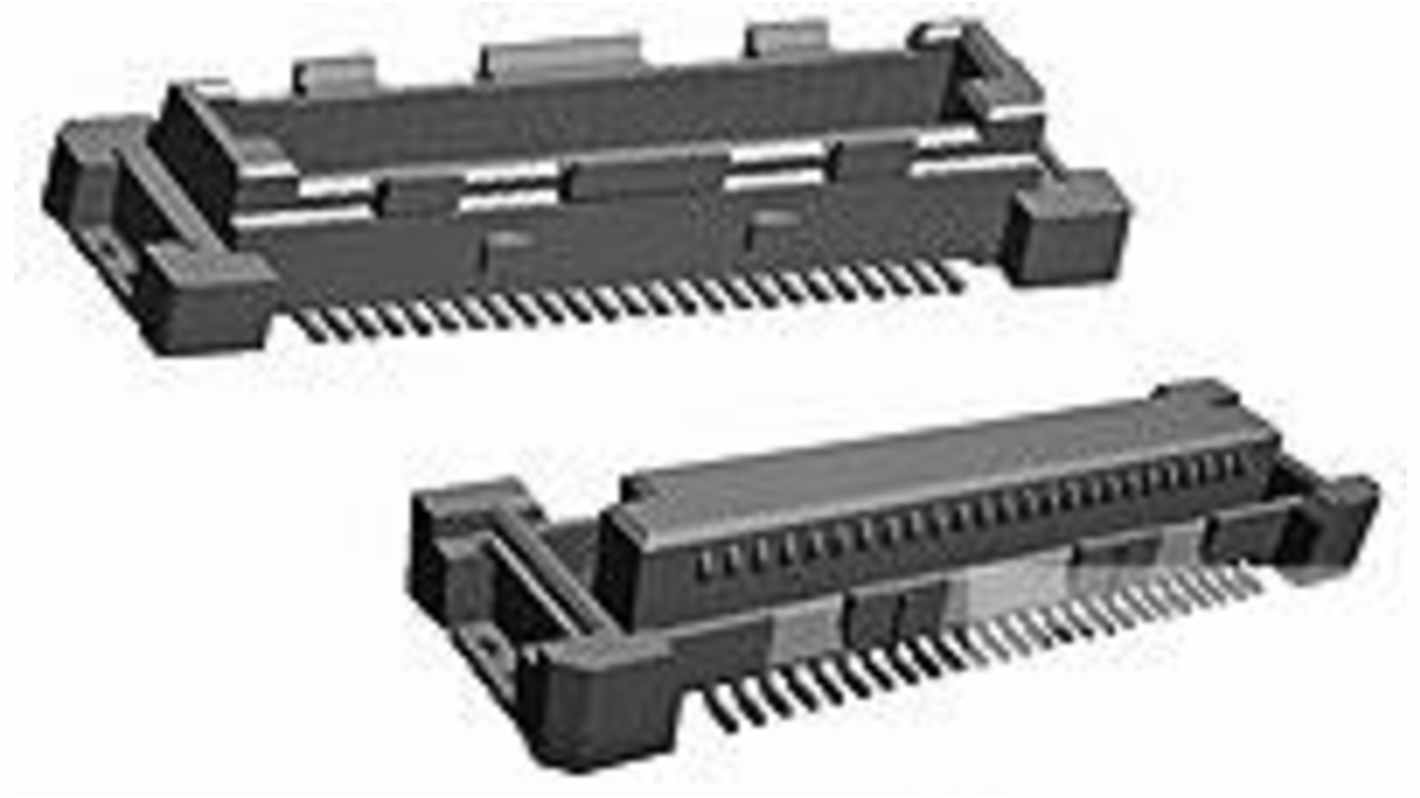

TE Connectivity 5316135 Series Board PCB Header, 0.6 mm Pitch, Unshrouded
- RS Stock No.:
- 478-166
- Distrelec Article No.:
- 304-65-299
- Mfr. Part No.:
- 5316135-3
- Brand:
- TE Connectivity
Subtotal (1 tray of 50 units)*
£195.74
(exc. VAT)
£234.89
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £195.74 | £3.915 |
*price indicative
- RS Stock No.:
- 478-166
- Distrelec Article No.:
- 304-65-299
- Mfr. Part No.:
- 5316135-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | 5316135 | |
| Pitch | 0.6mm | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Board | |
| Contact Plating | Tin | |
| Termination Type | Solder | |
| Row Pitch | 0.6mm | |
| Maximum Operating Temperature | 260°C | |
| Standards/Approvals | 2016 No Restricted Materials Above Threshold, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Out of Scope, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series 5316135 | ||
Pitch 0.6mm | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Board | ||
Contact Plating Tin | ||
Termination Type Solder | ||
Row Pitch 0.6mm | ||
Maximum Operating Temperature 260°C | ||
Standards/Approvals 2016 No Restricted Materials Above Threshold, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Out of Scope, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant | ||
- COO (Country of Origin):
- CN
The TE Connectivity Refined board-to-board connector embodies the perfect synergy of precision and reliability for advanced electronic applications. Designed with a free height of 0.6mm, it ensures optimal stacking performance while maintaining excellent solder process capabilities, withstanding temperatures of up to 260°C. The intelligent design makes it compatible with a range of high-speed applications, allowing for confident integration into various devices. With its low halogen content and compliance with stringent EU regulations, this connector not only guarantees superior functionality but also reinforces commitments to environmental responsibility. Its durable construction and robust specifications contribute to enhanced longevity and performance across diverse operational conditions, making it an ideal choice for engineers seeking dependable connectivity solutions.
Offers a free height measurement to accommodate diverse assembly needs
Complies with EU RoHS and ELV directives for responsible sourcing
Low halogen formulation promotes environmentally-friendly use
Solder process capability supports advanced manufacturing techniques
Versatile design suited for a range of board-to-board applications
Maintains high-performance standards while ensuring efficient space utilisation
