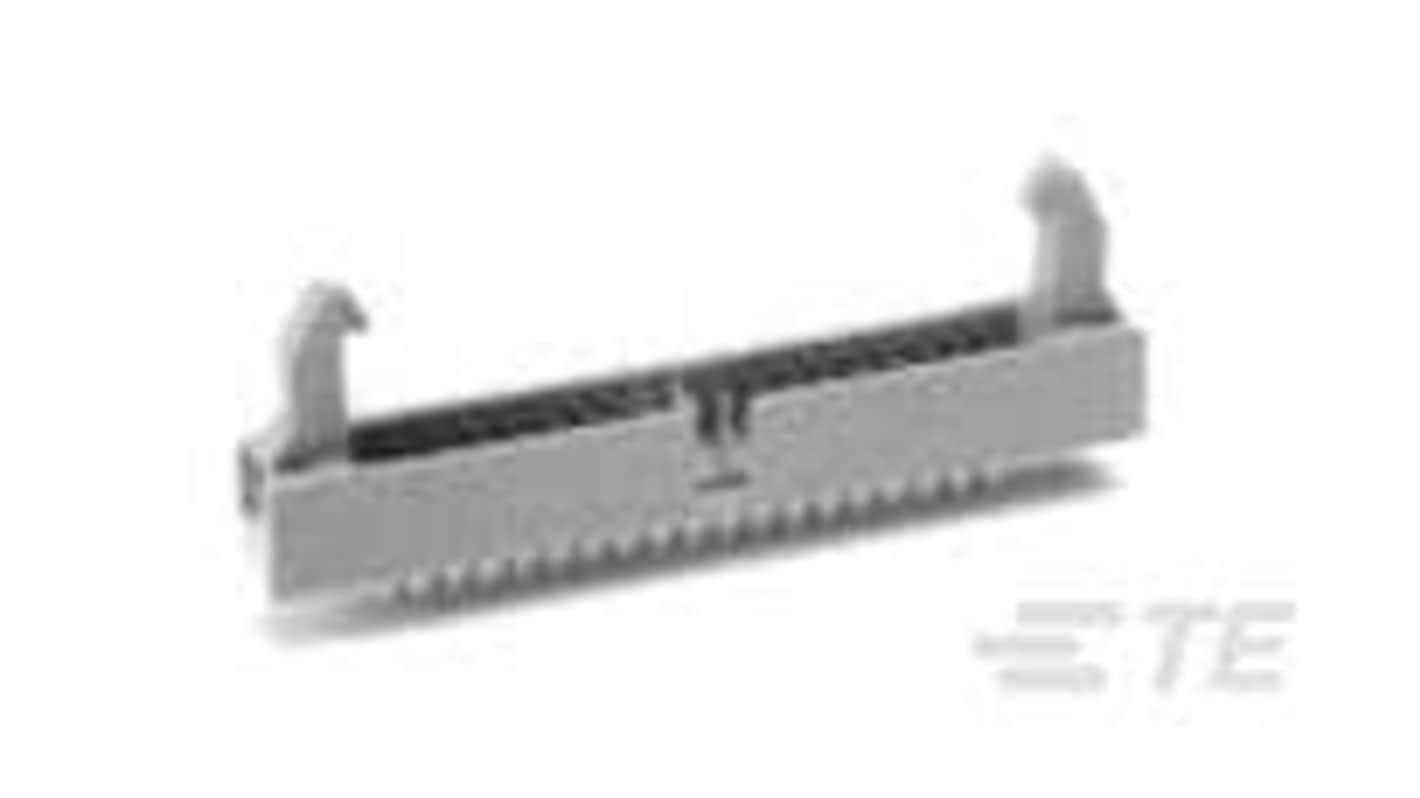

TE Connectivity AMP Series Vertical Board PCB Header, 16 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 25 units)*

£166.42

(exc. VAT)

£199.70

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£166.42£6.657

*price indicative

RS Stock No.:
476-021
Mfr. Part No.:
1761686-6
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Header

Series

AMP

Current

1A

Pitch

2.54mm

Housing Material

Polybutylene Terephthalate

Number of Contacts

16

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Mount Type

Board

Connector System

Wire-to-Board

Contact Material

Phosphor Bronze

Contact Plating

Gold

Minimum Operating Temperature

65°C

Termination Type

Solder

Row Pitch

2.54mm

Maximum Operating Temperature

105°C

Tail Pin Length

2.6mm

Contact Gender

Male

Standards/Approvals

UL 94 V-0

Voltage

250 V

Distrelec Product Id

304-52-612

COO (Country of Origin):
CN
The TE Connectivity Ribbon cable connector is a versatile solution designed for wire-to-board applications. It features a low-profile design, making it ideal for compact spaces while ensuring reliable connections. With 16 positions and a .1 inch (2.54 mm) centreline, this connector is engineered for optimal performance in various electronic setups. The vertical, through-hole solder configuration enhances stability and facilitates easy integration into printed circuit boards. Constructed from robust materials, it supports high-temperature operating conditions, making it suitable for demanding environments. Its compatibility with AMP-Latch receptacles ensures seamless connectivity with a variety of components.

Offers enhanced mating retention with an ejection latch for secure connections

Features a housing material rated for high temperatures, ensuring durability

Designed with a mating square post dimension that optimises alignment

Utilises gold plating in the contact mating area for improved conductivity

Supports wave soldering capabilities, simplifying installation processes

Accommodates a wide operating temperature range, enhancing versatility

Delivers superior insulation resistance to safeguard against electrical interference

Backed by compliance with industry standards, assuring quality and safety
