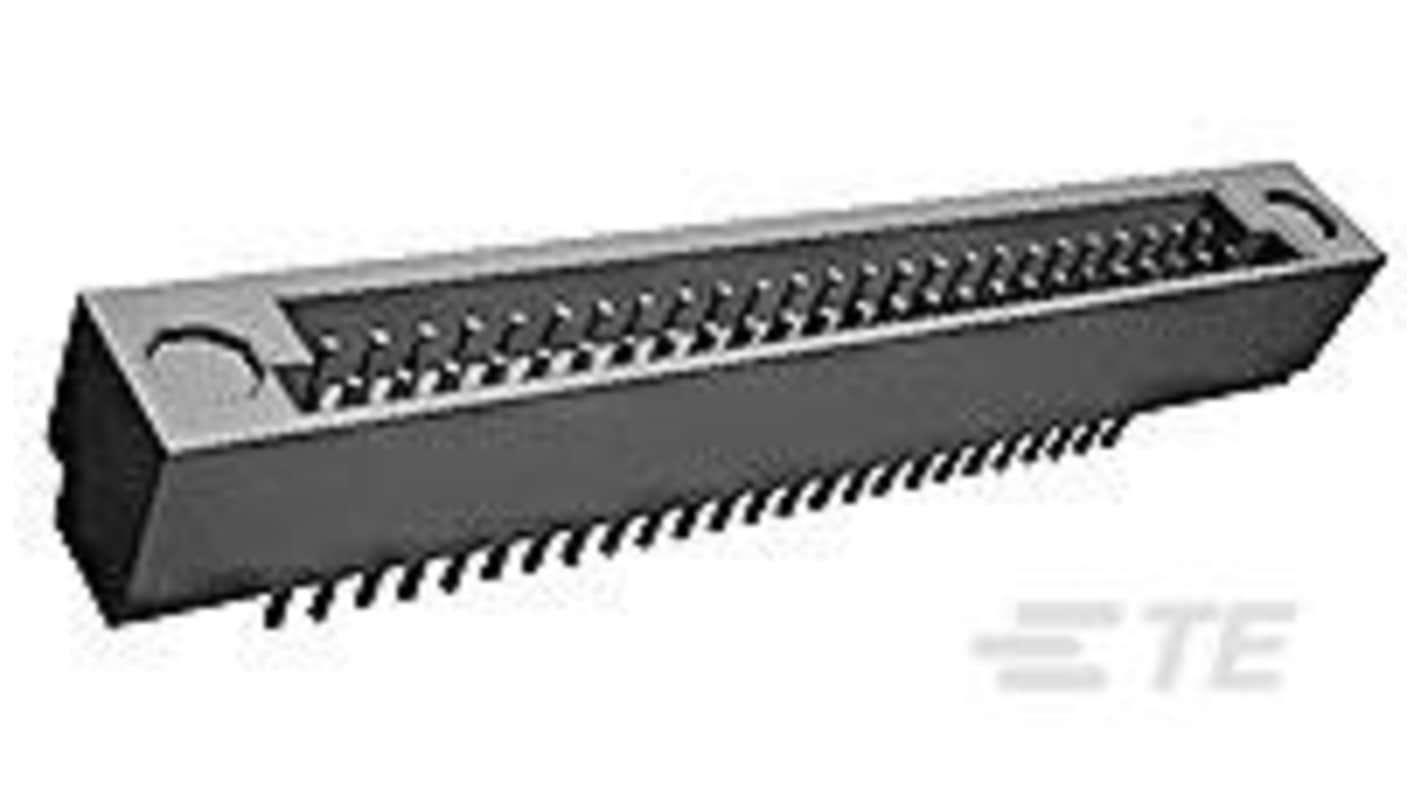

TE Connectivity AMP-HDI Series Vertical Board PCB Header, 150 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 475-313
- Mfr. Part No.:
- 1-532429-4
- Brand:
- TE Connectivity
Subtotal (1 tube of 8 units)*
£208.66
(exc. VAT)
£250.39
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £208.66 | £26.083 |
*price indicative
- RS Stock No.:
- 475-313
- Mfr. Part No.:
- 1-532429-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | AMP-HDI | |
| Product Type | PCB Header | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Number of Contacts | 150 | |
| Housing Material | Polyphenylene Sulphide | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | 65°C | |
| Termination Type | Solder | |
| Row Pitch | 2.54mm | |
| Tail Pin Length | 18.62mm | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | UL 94 V-0 | |
| Distrelec Product Id | 304-53-513 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series AMP-HDI | ||
Product Type PCB Header | ||
Current 3A | ||
Pitch 2.54mm | ||
Number of Contacts 150 | ||
Housing Material Polyphenylene Sulphide | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Minimum Operating Temperature 65°C | ||
Termination Type Solder | ||
Row Pitch 2.54mm | ||
Tail Pin Length 18.62mm | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals UL 94 V-0 | ||
Distrelec Product Id 304-53-513 | ||
- COO (Country of Origin):
- US
The TE Connectivity PCB Mount Header is designed for vertical, board-to-board applications, offering an ideal solution for connecting multiple circuits with precision and reliability. With 150 positions and a compact 2.54 mm centreline, this fully shrouded connector ensures secure and effective signal transfer, making it an excellent choice for a variety of electronic assembly needs. Its through-hole, press-fit termination method simplifies installation, promoting both efficiency and ease of use. Constructed from robust materials, it supports a wide operating temperature range, ensuring dependable performance even under challenging conditions. The design also embodies stringent compliance standards, affirming its suitability for diverse applications in various industries.
Designed for reliable board-to-board connectivity
Optimised for high-density applications with 150 positions
Fully shrouded housing enhances signal integrity
Through-hole press-fit termination enables straightforward installation
Constructed to withstand a wide operating temperature range
Black housing aesthetically blends with various circuit designs
Meets high industry standards for insulation resistance
