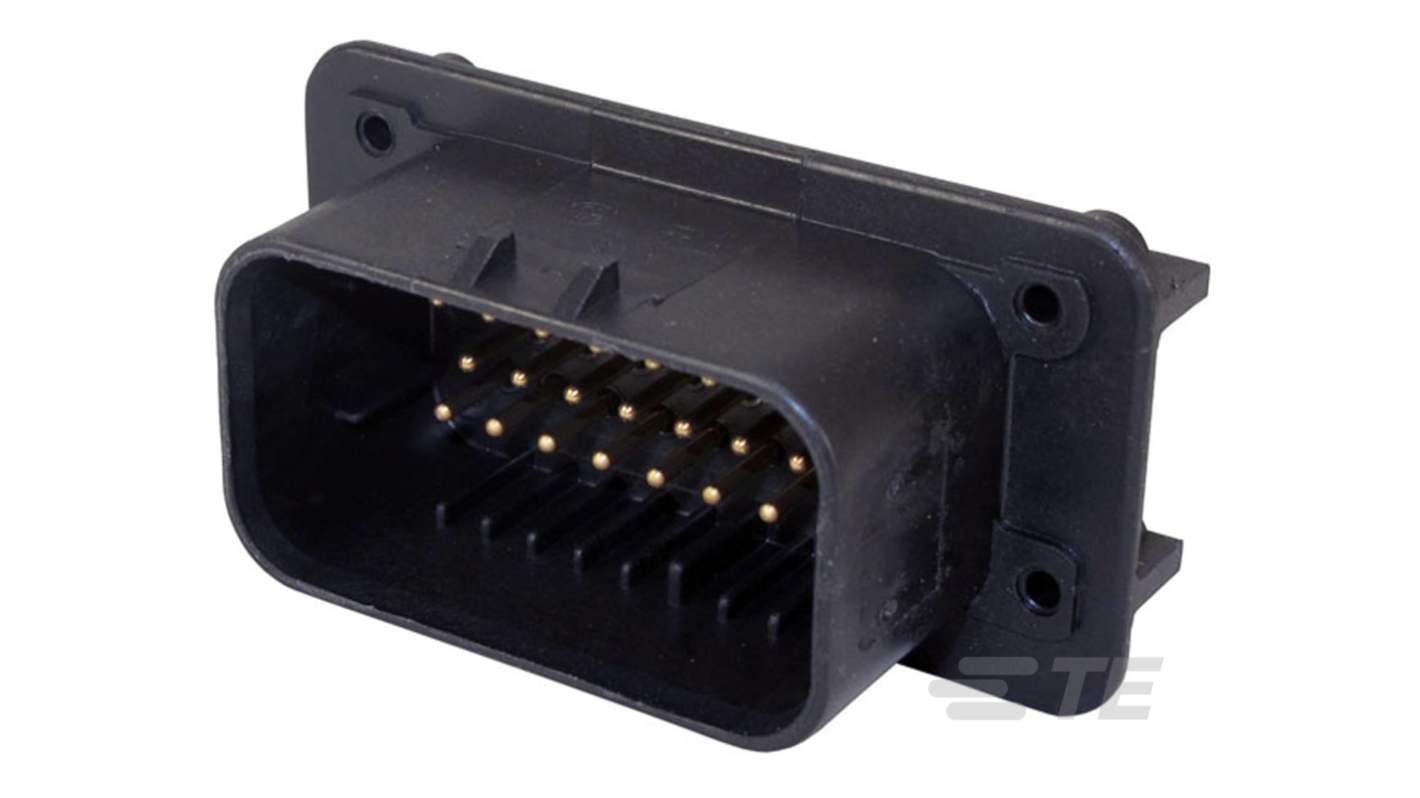

TE Connectivity Ampseal Series Right Angle Board PCB Header, 23 Contact(s), 4 mm Pitch, 3 Row(s), Shrouded
- RS Stock No.:
- 474-994
- Mfr. Part No.:
- 1-770669-1
- Brand:
- TE Connectivity
Subtotal (1 tray of 15 units)*
£211.60
(exc. VAT)
£253.92
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £211.60 | £14.107 |
*price indicative
- RS Stock No.:
- 474-994
- Mfr. Part No.:
- 1-770669-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Ampseal | |
| Pitch | 4mm | |
| Current | 17A | |
| Number of Contacts | 23 | |
| Number of Rows | 3 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Row Pitch | 4mm | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | |
| Distrelec Product Id | 304-50-134 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Ampseal | ||
Pitch 4mm | ||
Current 17A | ||
Number of Contacts 23 | ||
Number of Rows 3 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Plating Gold | ||
Row Pitch 4mm | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | ||
Distrelec Product Id 304-50-134 | ||
- COO (Country of Origin):
- US
The TE Connectivity PCB Mount Header is designed to deliver reliable interconnectivity for wire-to-board applications. Featuring a right-angle orientation, it allows for efficient space management in tight configurations while maintaining optimal performance. The fully shrouded design ensures secure pin retention and alignment, making it ideal for various electronic devices. Crafted for durability, this header is compliant with stringent industry standards, providing peace of mind regarding safety and performance. With its robust construction and gold-plated contacts, it not only enhances conductivity but also ensures longevity in demanding environments.
Designed for wire-to-board applications
Right-angle orientation optimises space in your assembly
Fully shrouded design provides ideal pin protection
Gold plating on contacts enhances conductivity and reliability
Capable of withstanding an operating temperature range of -40 to 125 °C
Wave solder compatible for efficient installation
Meets various compliance standards for safety and performance
Sealable to provide additional environmental protection
Available with compatible parts for versatile applications
