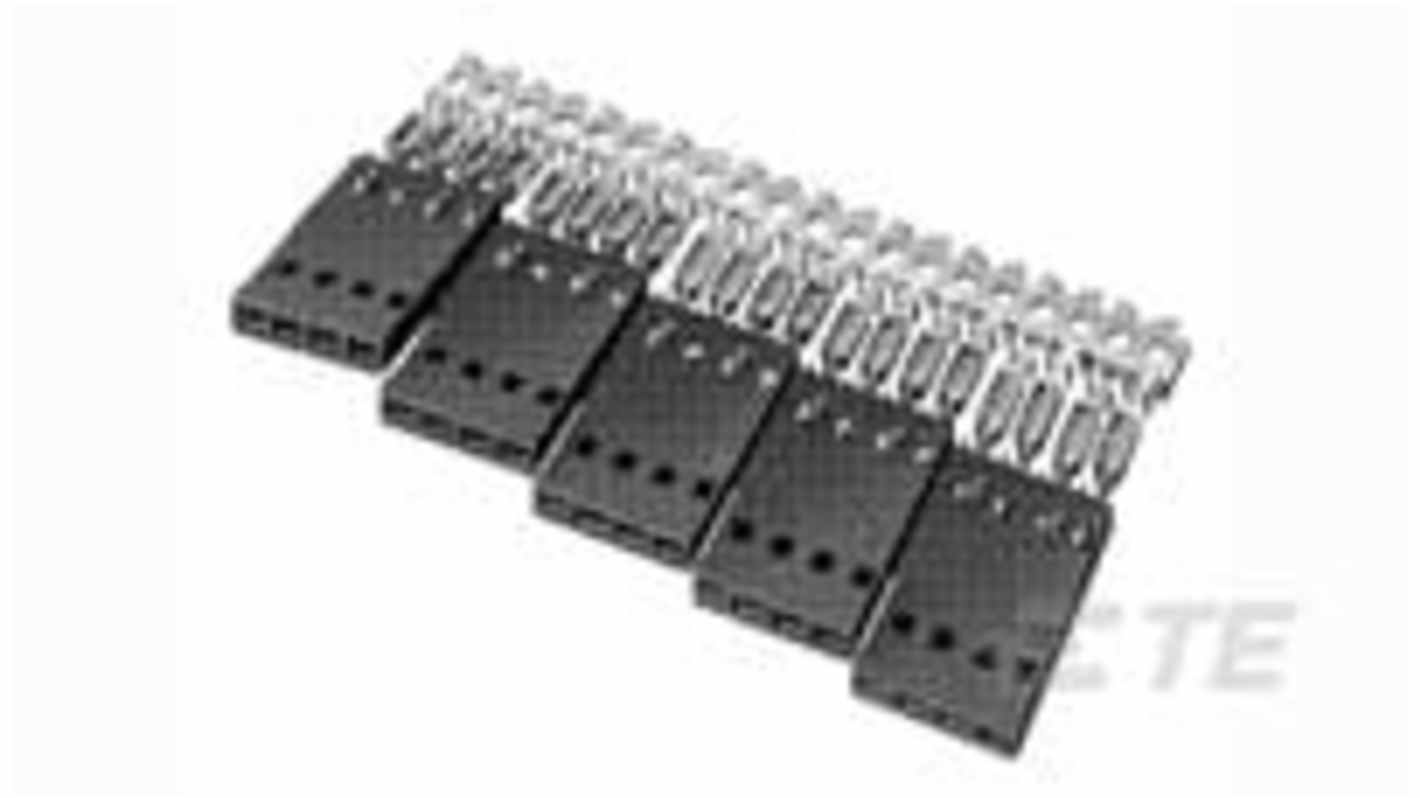

TE Connectivity AMPMODU MTE Series Cable Housing Receptacle, 25 Contact(s), 2.54 mm Pitch, 1 Row(s)
- RS Stock No.:
- 474-548
- Mfr. Part No.:
- 2-103648-4
- Brand:
- TE Connectivity
Subtotal (1 pack of 70 units)*
£175.76
(exc. VAT)
£210.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £175.76 | £2.511 |
*price indicative
- RS Stock No.:
- 474-548
- Mfr. Part No.:
- 2-103648-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Housing Receptacle | |
| Series | AMPMODU MTE | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 25 | |
| Number of Rows | 1 | |
| Connector System | Wire-to-Board | |
| Mount Type | Cable | |
| Contact Material | Phosphor Bronze | |
| Row Pitch | 2.54mm | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | 65°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UL 94 V-0 | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-55-333 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Housing Receptacle | ||
Series AMPMODU MTE | ||
Pitch 2.54mm | ||
Current 3A | ||
Housing Material Thermoplastic | ||
Number of Contacts 25 | ||
Number of Rows 1 | ||
Connector System Wire-to-Board | ||
Mount Type Cable | ||
Contact Material Phosphor Bronze | ||
Row Pitch 2.54mm | ||
Termination Type Crimp | ||
Minimum Operating Temperature 65°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UL 94 V-0 | ||
Voltage 250 V | ||
Distrelec Product Id 304-55-333 | ||
- COO (Country of Origin):
- US
The TE Connectivity Wire-to-board receptacle housing is designed for versatility and reliability in various applications. With a configuration of 25 positions and a compact 2.54 mm centreline, this connector is perfect for crimp and insulation displacement (IDC) purposes. The robust thermoplastic construction ensures durability and resistance to harsh environments, making it suitable for signal circuit applications. Ideal for both signal integrity and ease of installation, this housing supports efficient crimping methods, guaranteeing secure connections. Additionally, compliance with international standards such as UL 94V-0 highlights its safety and reliability, positioning it as an essential component for modern electronic assemblies.
Compact design saves space on PCBs
Compatible with a wide range of wire and cable types
Simple installation process reduces assembly time
Meets rigorous safety standards for enhanced reliability
High resistance to environmental factors ensures longevity
Features inline contact layout for efficient space management
Optimised for signal circuit applications for better performance
Locking lance contact retention enhances connection security
Suitable for a variety of industrial applications
