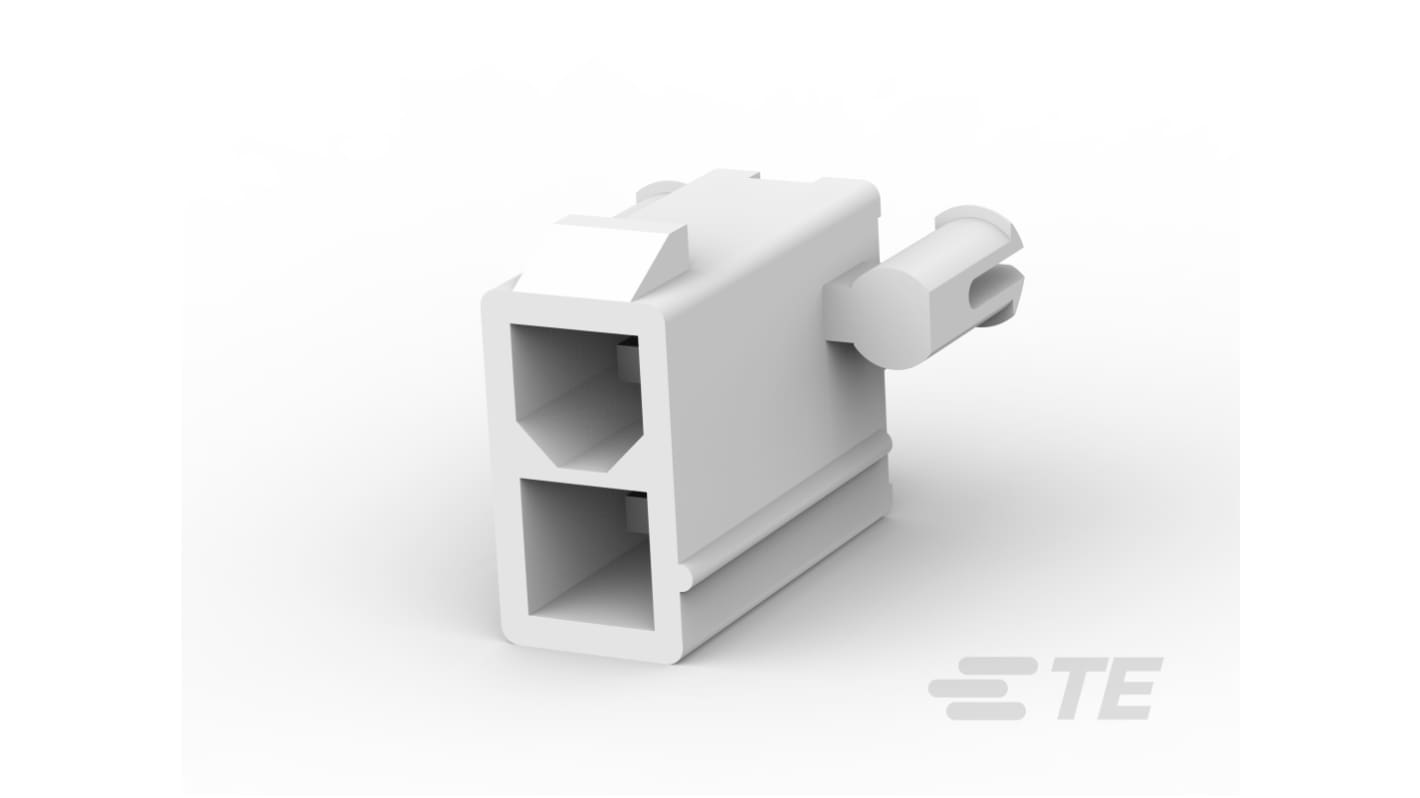

TE Connectivity VAL-U-LOK Series Vertical Board PCB Header, 2 Contact(s), 4.2 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 tray of 500 units)*

£135.18

(exc. VAT)

£162.22

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s)
Per Tray
Per unit*
1 +£135.18£0.27

*price indicative

RS Stock No.:
473-910
Mfr. Part No.:
1586039-2
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Header

Series

VAL-U-LOK

Pitch

4.2mm

Current

9A

Housing Material

Polyamide 66

Number of Contacts

2

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Mount Type

Board

Connector System

Wire-to-Board

Contact Plating

Tin

Minimum Operating Temperature

-40°C

Row Pitch

4.2mm

Termination Type

Solder

Maximum Operating Temperature

105°C

Contact Gender

Male

Tail Pin Length

3.5mm

Standards/Approvals

CSA, UL, UL 94V-2

Voltage

60 V

COO (Country of Origin):
CN
The TE Connectivity Rectangular power connector is designed for seamless wire-to-board applications, featuring a robust header and plug configuration. With its dual-position setup and a centreline of 4.2 mm, this connector ensures efficient space utilisation on printed circuit boards. The product is certified for UL 94V-2 flammability, offering peace of mind for applications demanding high safety standards. Built to withstand operating temperatures from -40°C to 105°C, it is ideal for various environments. The connector’s mechanical alignment and retention features guarantee reliable connectivity, while its vertical PCB mount orientation simplifies installation. Constructed from durable PA 66 material, it is lent additional longevity through its tin-plated contact areas, ensuring optimal electrical conduction without compromising on performance.

The connector's inline contact layout promotes streamlined connections

Its through-hole solder termination method ensures strong mechanical stability

The keyed mating alignment allows for foolproof connectivity

This model features low halogen materials, aligning with modern eco-conscious standards

With a maximum current rating of 9 A, it supports high-performance electrical demands

Its compact dimensions allow for integration into tight spaces within various applications

Designed for ease of assembly, it requires minimal tools for installation

Provided with comprehensive compliance certifications, it meets stringent industry standards
