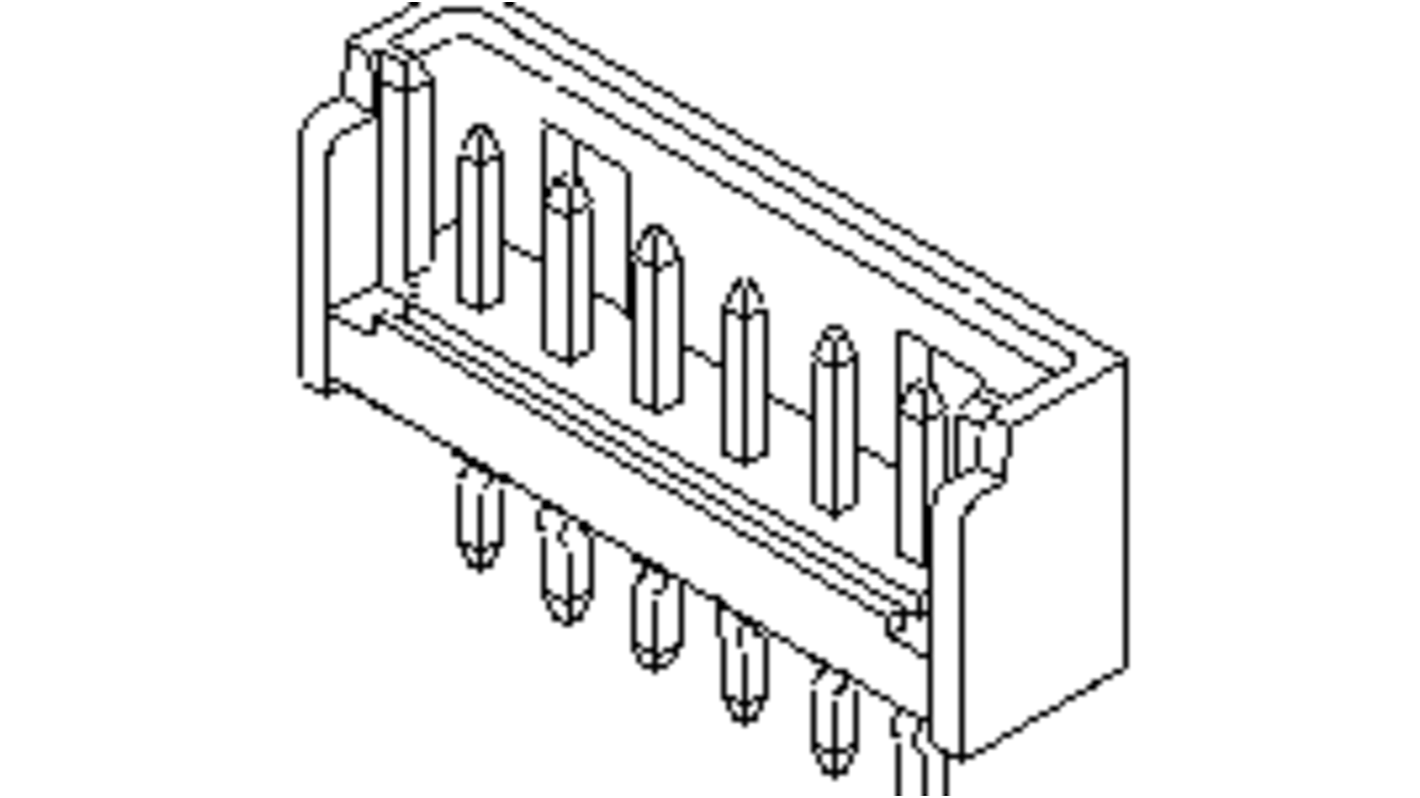

Molex 53290 Series Vertical Through Hole PCB Header, 5 Contact(s), 2 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 473-664
- Mfr. Part No.:
- 53290-0580
- Brand:
- Molex
Subtotal (1 tray of 600 units)*
£194.26
(exc. VAT)
£233.11
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £194.26 | £0.324 |
*price indicative
- RS Stock No.:
- 473-664
- Mfr. Part No.:
- 53290-0580
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 53290 | |
| Product Type | PCB Header | |
| Pitch | 2mm | |
| Current | 1.5A | |
| Housing Material | Polyester | |
| Number of Contacts | 5 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.2mm | |
| Standards/Approvals | chemSHERPA, IEC-62474, IPC 1752A Class C, IPC 1752A Class D | |
| Voltage | 125 V | |
| Distrelec Product Id | 304-62-636 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 53290 | ||
Product Type PCB Header | ||
Pitch 2mm | ||
Current 1.5A | ||
Housing Material Polyester | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.2mm | ||
Standards/Approvals chemSHERPA, IEC-62474, IPC 1752A Class C, IPC 1752A Class D | ||
Voltage 125 V | ||
Distrelec Product Id 304-62-636 | ||
- COO (Country of Origin):
- MY
The TE Connectivity Board-to-Board connectivity, designed specifically for applications that require a compact interface. This vertical, single-row header is engineered for efficiency with a 2.00mm pitch, accommodating up to five circuits while ensuring robust performance. The friction lock feature guarantees secure mating, making it an excellent choice for demanding environments. Compliant with various industry standards, this product demonstrates a commitment to safety and environmental responsibility, ensuring its suitability for modern design requirements. With a maximum current rating of 1.5A and a voltage rating of 125V, this connector adeptly combines performance with space-saving design, ideal for a range of applications requiring flexibility and durability.
Supports vertical PCB mounting for optimal space utilisation
Offers a friction lock mechanism for dependable connections
Incorporates a natural resin colour for easy identification
Constructed with robust brass and tin plating for enhanced longevity
Rated for a wide operating temperature range, ensuring reliability under varied conditions
Designed with a shrouded interface to improve safety during operation
Facilitates 30 mating cycles, promoting extended product life
Includes a tray packaging type for efficient handling and storage
