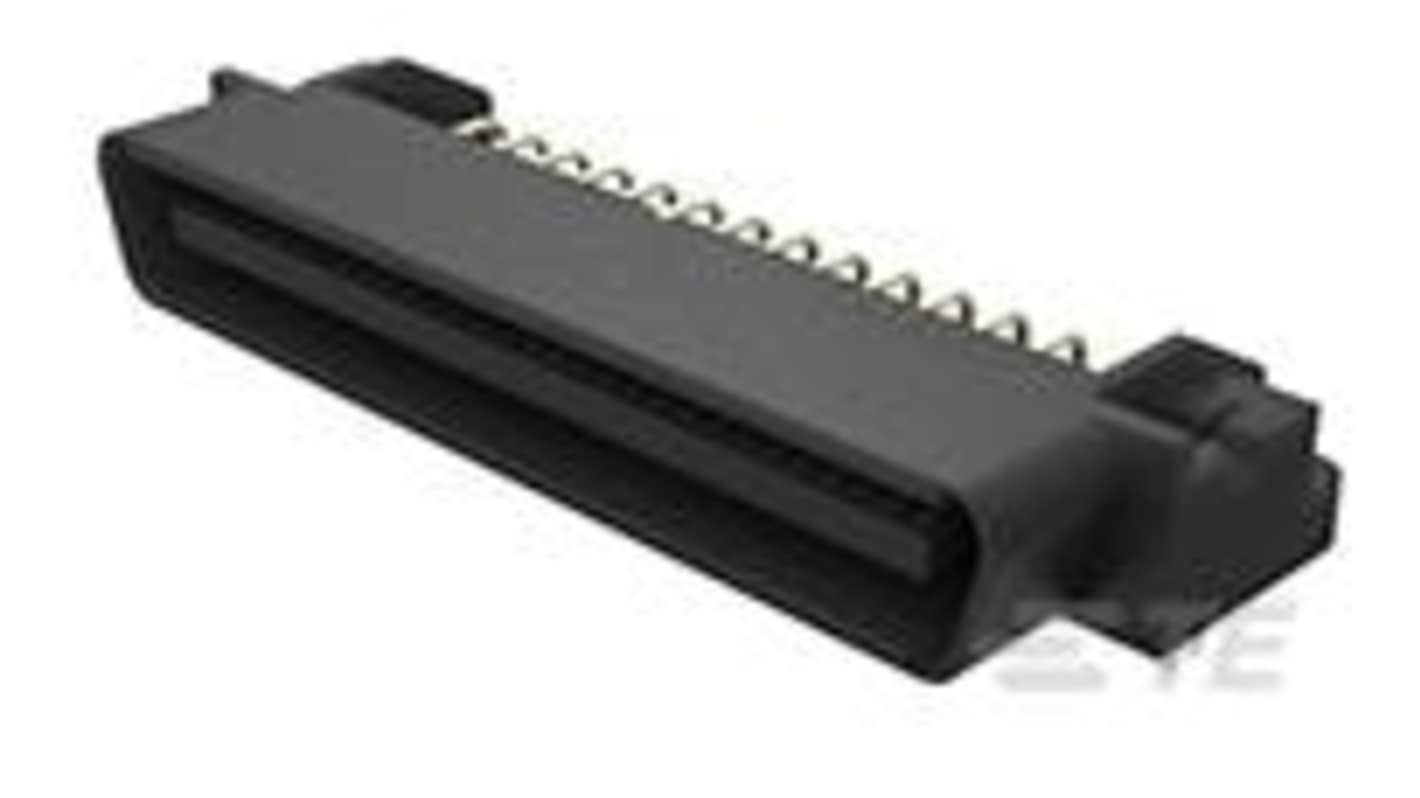

TE Connectivity Champ Series Right Angle Board PCB Header, 60 Contact(s), 1.27 mm Pitch, Shrouded
- RS Stock No.:
- 472-375
- Mfr. Part No.:
- 3-5175472-7
- Brand:
- TE Connectivity
Subtotal (1 tray of 20 units)*
£190.27
(exc. VAT)
£228.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £190.27 | £9.514 |
*price indicative
- RS Stock No.:
- 472-375
- Mfr. Part No.:
- 3-5175472-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Champ | |
| Product Type | PCB Header | |
| Pitch | 1.27mm | |
| Current | 1A | |
| Housing Material | Nylon Fibreglass | |
| Number of Contacts | 60 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Board-to-Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 1.27mm | |
| Maximum Operating Temperature | 85°C | |
| Tail Pin Length | 3.1mm | |
| Standards/Approvals | UL 94 V-0 | |
| Mating Pin Length | 6.6mm | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-54-036 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Champ | ||
Product Type PCB Header | ||
Pitch 1.27mm | ||
Current 1A | ||
Housing Material Nylon Fibreglass | ||
Number of Contacts 60 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Board-to-Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 1.27mm | ||
Maximum Operating Temperature 85°C | ||
Tail Pin Length 3.1mm | ||
Standards/Approvals UL 94 V-0 | ||
Mating Pin Length 6.6mm | ||
Voltage 250 V | ||
Distrelec Product Id 304-54-036 | ||
- COO (Country of Origin):
- JP
The TE Connectivity PCB Mount Header is an essential component for efficient electronic connections, designed for a right-angle orientation with 60 positions. Ideal for board-to-board applications, this fully shrouded connector ensures secure and reliable connections in various electronic setups. It boasts a compact design with a 1.27 mm centreline, making it suitable for space-constrained environments while still maintaining high performance. With robust gold plating on the contacts and a phosphor bronze contact base, it guarantees long-lasting durability and excellent conductivity. Designed with ease of use in mind, the connector features a polarized mating alignment for hassle-free integration into your PCB designs. This innovative assembly is a product of meticulous engineering, making it a steadfast choice for a range of electronic applications.
Right-angle orientation facilitates flexible design options
Fully shrouded header type enhances protection against environmental factors
Compact centreline design optimises space on printed circuit boards
Gold contact plating ensures superior conductivity and corrosion resistance
Compliant with EU RoHS and REACH regulations for environmentally conscious use
Designed for through-hole solder termination, allowing for reliable assembly
Durable nylon housing offers resilience in various operating conditions
Mating alignment aids in effective and accurate connector placement
Capable of withstanding extreme temperatures, ensuring operational reliability
