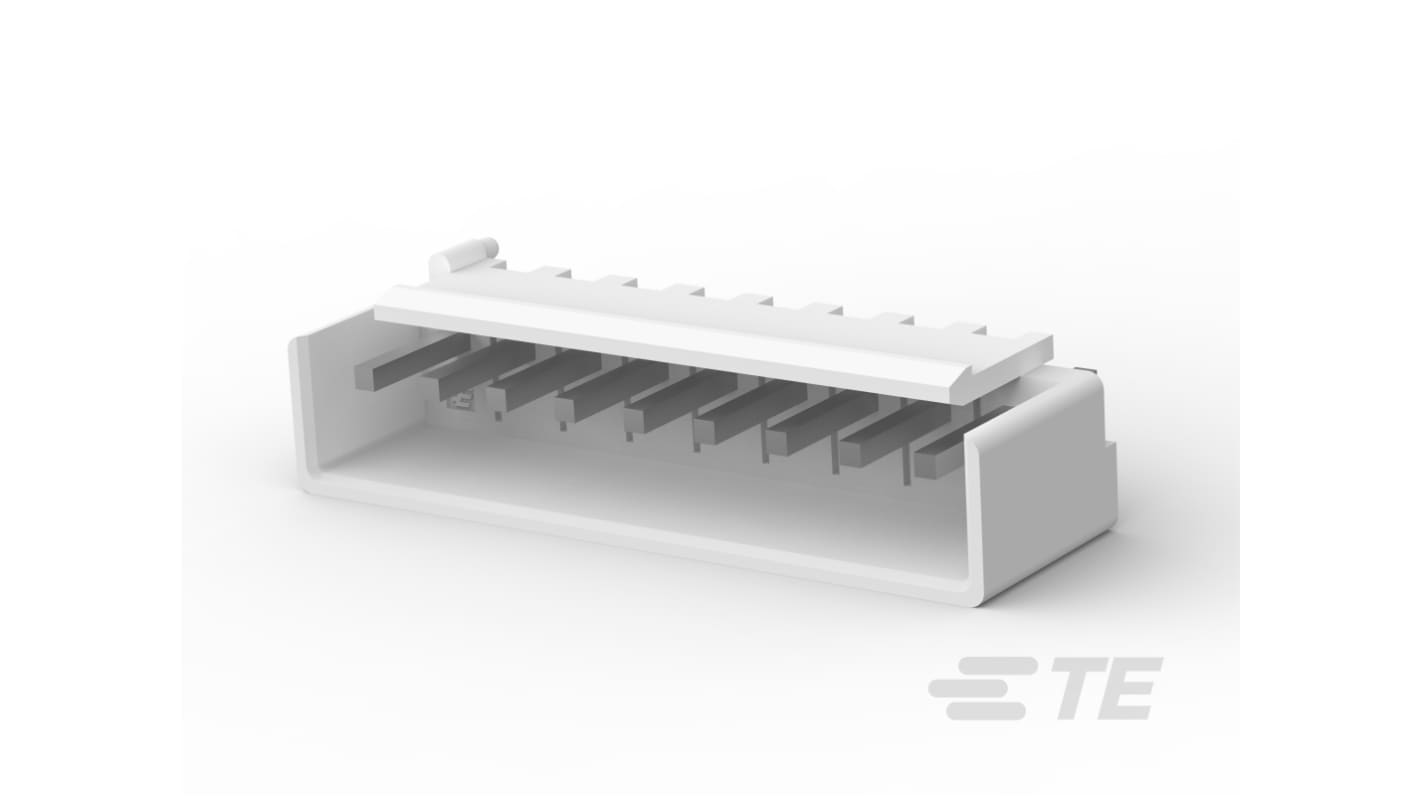

TE Connectivity Economy Power Series Vertical Board PCB Header, 9 Contact(s), 3.96 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 471-262
- Mfr. Part No.:
- 1877285-9
- Brand:
- TE Connectivity
Subtotal (1 bag of 400 units)*
£243.26
(exc. VAT)
£291.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £243.26 | £0.608 |
*price indicative
- RS Stock No.:
- 471-262
- Mfr. Part No.:
- 1877285-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Economy Power | |
| Product Type | PCB Header | |
| Pitch | 3.96mm | |
| Current | 8A | |
| Number of Contacts | 9 | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Row Pitch | 3.96mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 30°C | |
| Tail Pin Length | 3.6mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | China RoHS 2, EU ELV, EU RoHS, UL 94V-0 | |
| Mating Pin Length | 7.78mm | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-58-253 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Economy Power | ||
Product Type PCB Header | ||
Pitch 3.96mm | ||
Current 8A | ||
Number of Contacts 9 | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Row Pitch 3.96mm | ||
Termination Type Solder | ||
Minimum Operating Temperature 30°C | ||
Tail Pin Length 3.6mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals China RoHS 2, EU ELV, EU RoHS, UL 94V-0 | ||
Mating Pin Length 7.78mm | ||
Voltage 250 V | ||
Distrelec Product Id 304-58-253 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is an exceptional solution for wire-to-board connections, ideal for a variety of applications requiring reliability and efficiency. Designed with a vertical orientation, this connector accommodates nine positions on a compact 3.96 mm centreline, embracing the needs of modern electronics. The partially shrouded header ensures enhanced safety during operation, while its robust construction and choice of tin plating provide excellent conductivity. With a maximum operating voltage of 250 VDC, this connector is suited for high-performance environments. Additionally, its innovative design allows for seamless integration into printed circuit boards, emphasising both usability and durability.
Compact design for space-efficient installations
Partially shrouded header enhances safety and usability
Nine loaded positions accommodate versatile connectivity needs
Nickel underplating for improved durability and electrical performance
High maximum current rating ensures reliable power delivery
Polarisation features prevent mismating during assembly
Compatibility with various TE components increases flexibility in applications
Wave solder capability allows for efficient assembly processes
