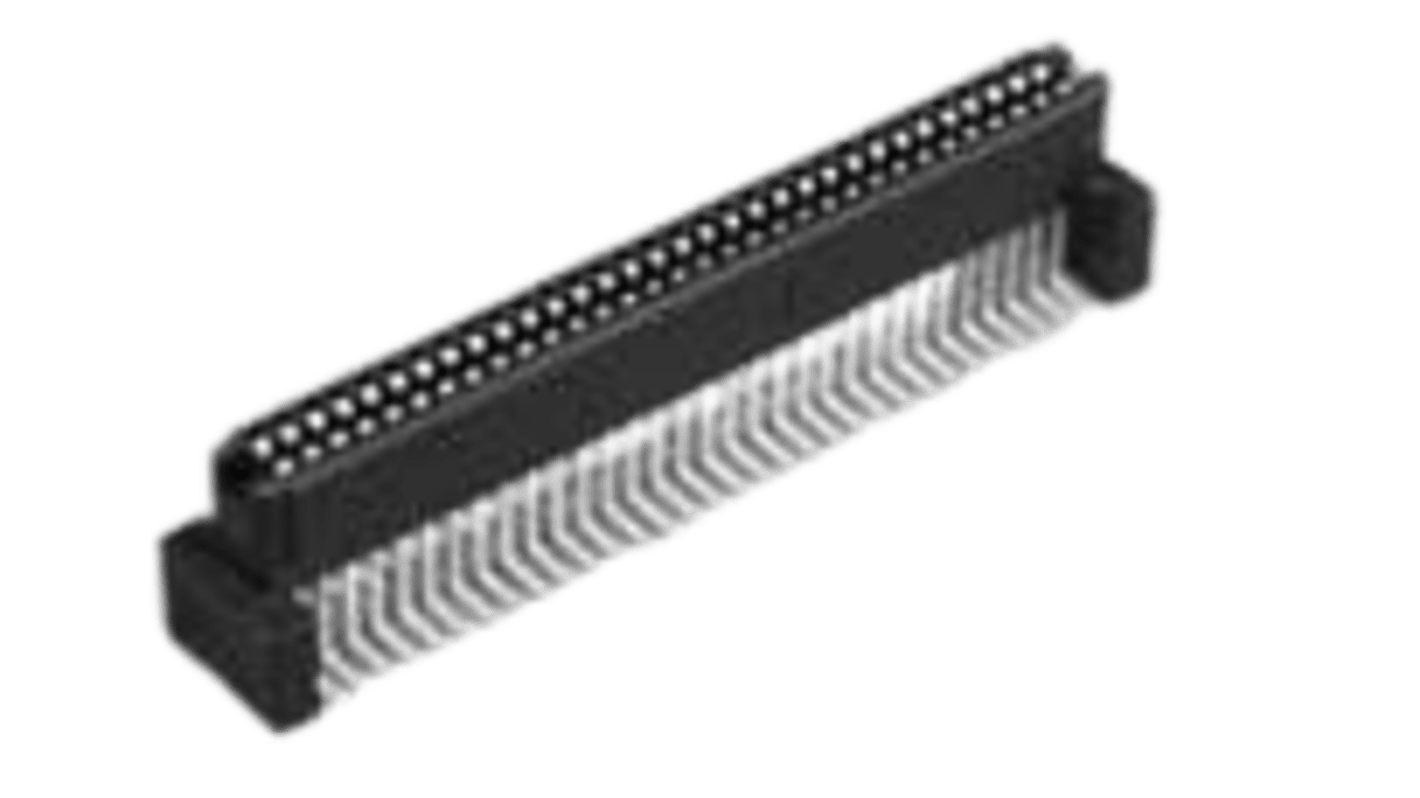

TE Connectivity Free Height Series Vertical PCB PCB Header, 64 Contact(s), 1 mm Pitch, 32 Row(s), Unshrouded
- RS Stock No.:
- 471-075
- Mfr. Part No.:
- 120530-1
- Brand:
- TE Connectivity
Subtotal (1 reel of 400 units)*
£2,183.44
(exc. VAT)
£2,620.13
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £2,183.44 | £5.459 |
*price indicative
- RS Stock No.:
- 471-075
- Mfr. Part No.:
- 120530-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Free Height | |
| Pitch | 1mm | |
| Current | 1A | |
| Housing Material | Matt | |
| Number of Contacts | 64 | |
| Number of Rows | 32 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Board-to-Board | |
| Mount Type | PCB | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 1mm | |
| Termination Type | Surface Mount | |
| Maximum Operating Temperature | 110°C | |
| Standards/Approvals | CSA, IEEE 1386, UL | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-53-657 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Free Height | ||
Pitch 1mm | ||
Current 1A | ||
Housing Material Matt | ||
Number of Contacts 64 | ||
Number of Rows 32 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Board-to-Board | ||
Mount Type PCB | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 1mm | ||
Termination Type Surface Mount | ||
Maximum Operating Temperature 110°C | ||
Standards/Approvals CSA, IEEE 1386, UL | ||
Voltage 250 V | ||
Distrelec Product Id 304-53-657 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Receptacle is a sophisticated and reliable connector that ensures optimal performance in board-to-board applications. Designed for vertical mounting, this product features 64 positions and a precise 1 mm centreline, enabling seamless integration into various electronic systems. Its robust construction, featuring gold plating, enhances conductivity and ensures long-lasting durability. This receptacle not only meets stringent industry standards but also supports efficient signal transmission, making it an ideal choice for modern electronic devices. With user-friendly features for straightforward installation and maintenance, this component embodies the perfect blend of innovation and practicality in connectivity solutions.
Designed for vertical PCB mounting to optimise space utilisation
Features a 1 mm centreline for efficient board to board connectivity
Gold contact plating enhances conductivity and durability
64 positions support high density applications without compromising reliability
Compatible with various industrial standards for enhanced versatility
Optimised for reflow solder processes ensuring ease of installation
