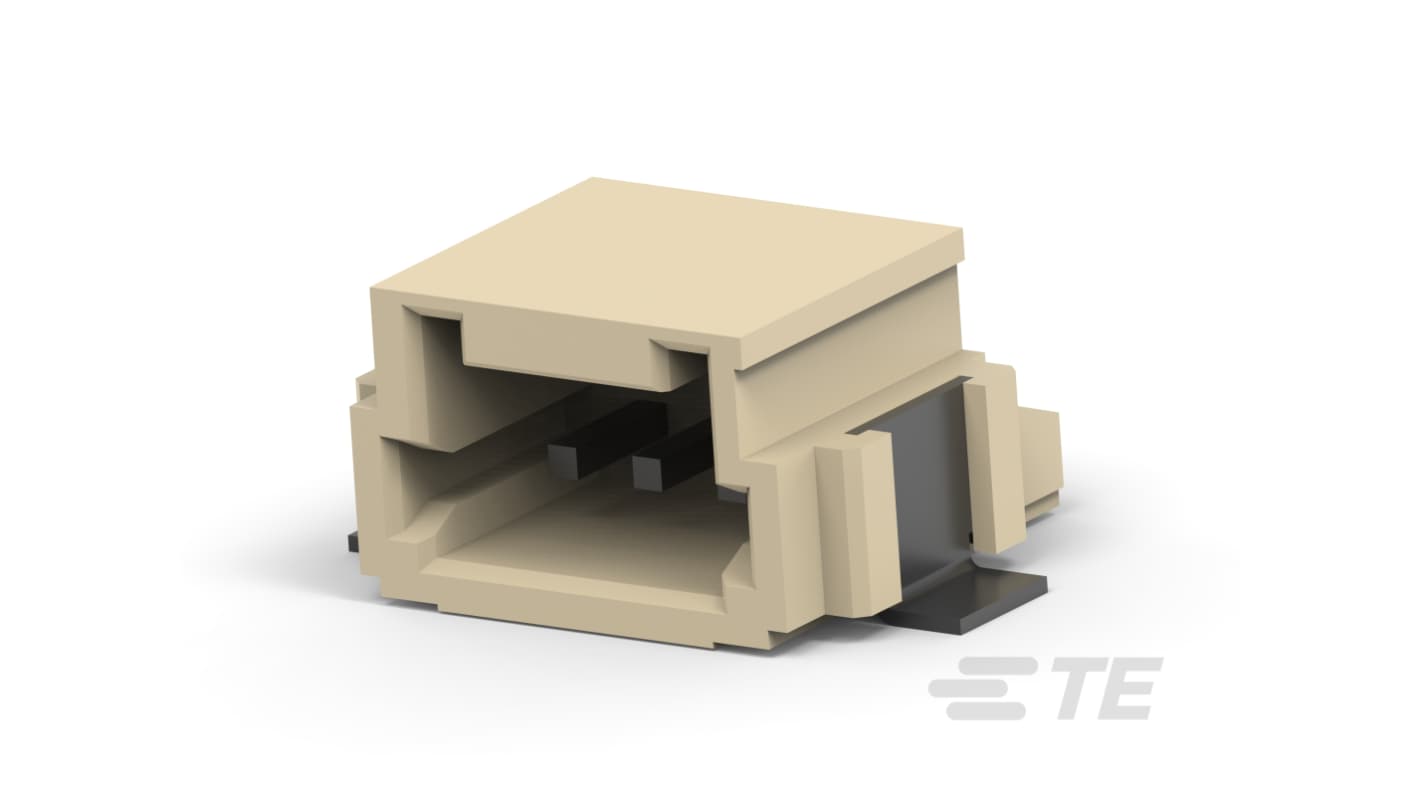

TE Connectivity AMP Mini CT Series Right Angle Surface PCB Header, 3 Contact(s), 1.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 470-835
- Mfr. Part No.:
- 292228-3
- Brand:
- TE Connectivity
Subtotal (1 reel of 700 units)*
£497.20
(exc. VAT)
£596.64
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £497.20 | £0.71 |
*price indicative
- RS Stock No.:
- 470-835
- Mfr. Part No.:
- 292228-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | AMP Mini CT | |
| Pitch | 1.5mm | |
| Current | 2A | |
| Housing Material | Polyamide 6T | |
| Number of Contacts | 3 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Connector System | Wire-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Termination Type | Surface Mount | |
| Row Pitch | 1.5mm | |
| Minimum Operating Temperature | 30°C | |
| Maximum Operating Temperature | 105°C | |
| Mating Pin Length | 2.4mm | |
| Standards/Approvals | RoHS | |
| Voltage | 50 V | |
| Distrelec Product Id | 304-50-626 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series AMP Mini CT | ||
Pitch 1.5mm | ||
Current 2A | ||
Housing Material Polyamide 6T | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Connector System Wire-to-Board | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Termination Type Surface Mount | ||
Row Pitch 1.5mm | ||
Minimum Operating Temperature 30°C | ||
Maximum Operating Temperature 105°C | ||
Mating Pin Length 2.4mm | ||
Standards/Approvals RoHS | ||
Voltage 50 V | ||
Distrelec Product Id 304-50-626 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is a sophisticated solution designed for right-angle wire-to-board connections, ideal for applications requiring reliable signal transfer. With a compact design featuring 3 positions and a 1.5 mm centerline, this fully shrouded connector ensures excellent performance in both dense and minimal configurations. Manufactured from quality materials, the connector boasts a natural housing color and a durable nylon 6T construction, designed to withstand environmental challenges. Its robust design facilitates easy integration into various circuit boards, making it a go-to choice for engineers seeking efficient connectivity in innovative electronic applications. This connector is especially suited for modern devices requiring meticulous design without compromising on functionality or reliability.
Designed for versatile PCB mount applications
Offers excellent mating retention for secure connections
Features natural color housing for unobtrusive integration
Constructed from high-quality nylon 6T for durability and longevity
Operates within a wide temperature range, ensuring stability in diverse environments
