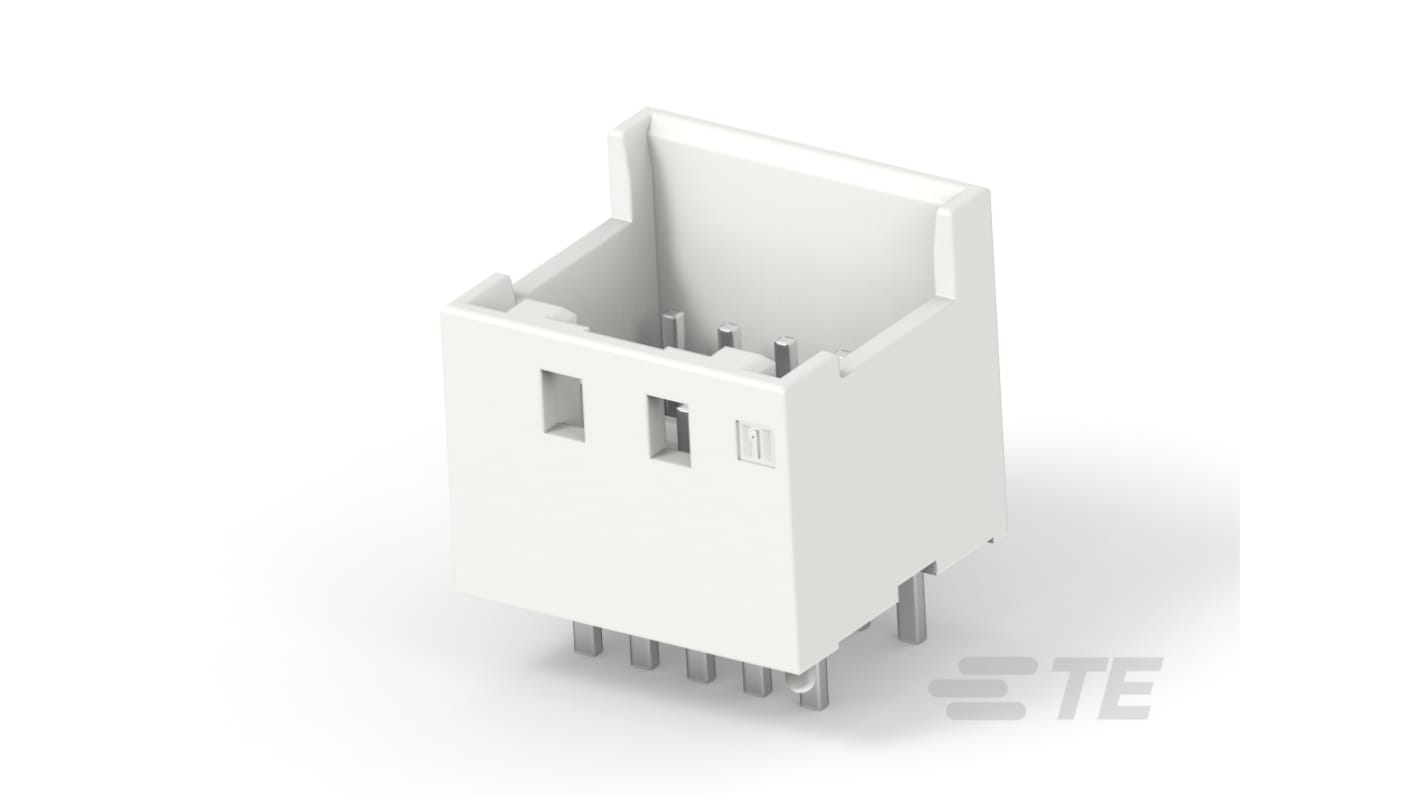

TE Connectivity Grace Inertia Series Vertical Board PCB Header, 10 Contact(s), 2 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 470-693
- Mfr. Part No.:
- 2013924-1
- Brand:
- TE Connectivity
Subtotal (1 bag of 300 units)*
£193.26
(exc. VAT)
£231.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £193.26 | £0.644 |
*price indicative
- RS Stock No.:
- 470-693
- Mfr. Part No.:
- 2013924-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Grace Inertia | |
| Pitch | 2mm | |
| Current | 2.5A | |
| Number of Contacts | 10 | |
| Housing Material | Polyamide 66 Fibreglass | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Row Pitch | 2mm | |
| Minimum Operating Temperature | 30°C | |
| Termination Type | Solder | |
| Tail Pin Length | 3mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | |
| Voltage | 50 V | |
| Distrelec Product Id | 304-53-868 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Grace Inertia | ||
Pitch 2mm | ||
Current 2.5A | ||
Number of Contacts 10 | ||
Housing Material Polyamide 66 Fibreglass | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Row Pitch 2mm | ||
Minimum Operating Temperature 30°C | ||
Termination Type Solder | ||
Tail Pin Length 3mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0 | ||
Voltage 50 V | ||
Distrelec Product Id 304-53-868 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header serves as an efficient wire-to-board connection solution, boasting a robust vertical configuration ideal for diverse applications. Designed with precision, it features 10 positions arranged in a fully shrouded format to ensure secure connectivity, optimising both performance and reliability. The component exhibits a remarkable tolerance to operational conditions, with an operating temperature range ideal for various environments. With a natural nylon body and tin plating, this header is built to withstand demanding applications, making it a perfect fit for projects requiring durability and efficiency.
Offers enhanced mating retention through an integrated latch design
Features a reliable square contact shape to ensure consistent electrical performance
Designed with locating posts for accurate alignment during installation
Accommodates a compact 2 mm centreline pitch for space-efficient layouts
Constructed from nylon 6/6 GF housing material, enhancing longevity in critical environments
Utilises a through-hole soldering method for secure attachment to PCBs
Includes nickel underplating for superior contact integrity and resistance
Meets stringent EU compliance standards for environmental safety and sustainability
