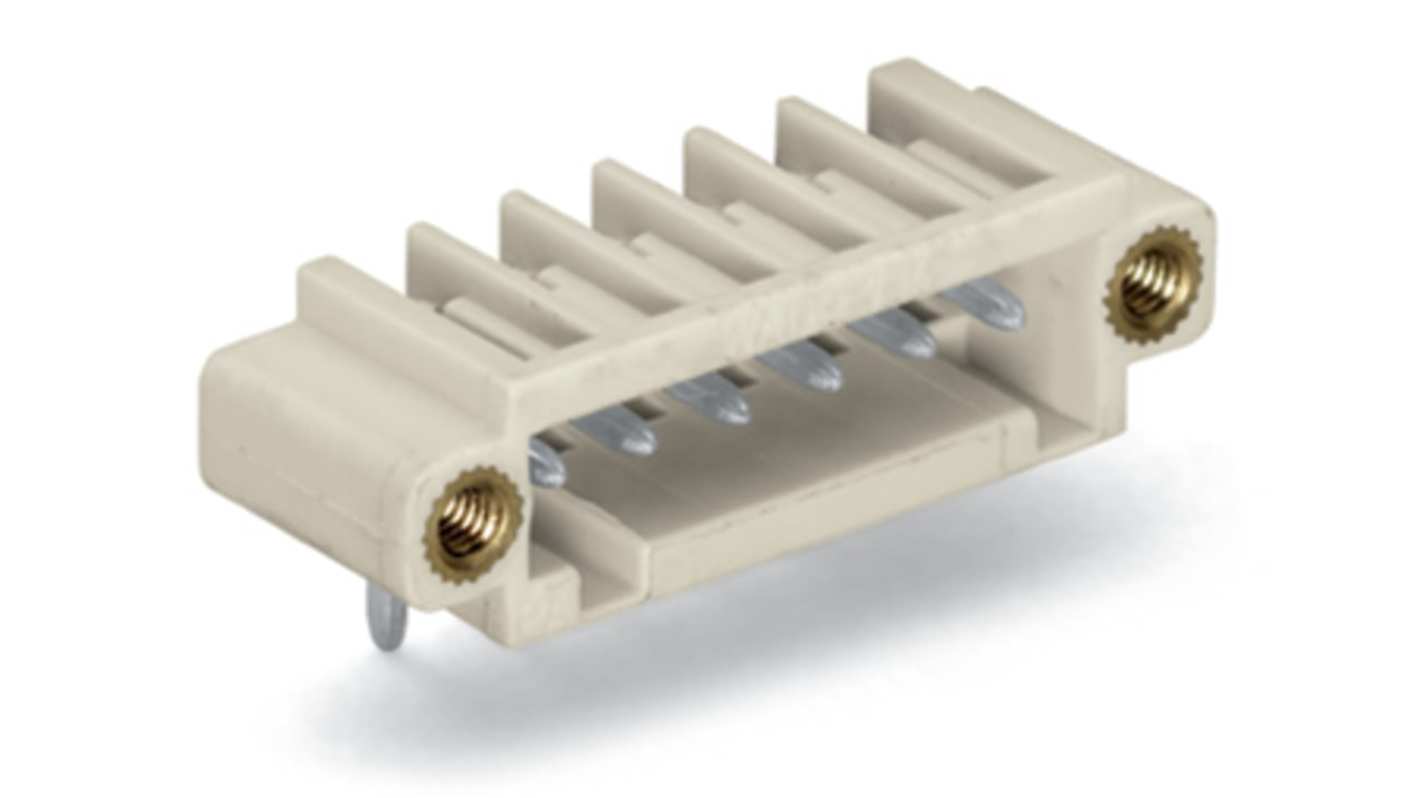

WAGO 734 Series Angled Through Hole Header, 16 Contact(s), 3.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 222-728
- Mfr. Part No.:
- 734-176/108-000
- Brand:
- WAGO
Subtotal (1 box of 50 units)*
£248.97
(exc. VAT)
£298.76
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £248.97 | £4.979 |
*price indicative
- RS Stock No.:
- 222-728
- Mfr. Part No.:
- 734-176/108-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 734 | |
| Product Type | Header | |
| Pitch | 3.5mm | |
| Current | 10A | |
| Number of Contacts | 16 | |
| Housing Material | Polyamide 66 | |
| Number of Rows | 1 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | MCS | |
| Mount Type | Through Hole | |
| Contact Plating | Tin | |
| Contact Material | Electrolytic Copper | |
| Minimum Operating Temperature | 60°C | |
| Row Pitch | 3.5mm | |
| Termination Type | Solder | |
| Contact Gender | Male | |
| Tail Pin Length | 3.8mm | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | RoHS | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 734 | ||
Product Type Header | ||
Pitch 3.5mm | ||
Current 10A | ||
Number of Contacts 16 | ||
Housing Material Polyamide 66 | ||
Number of Rows 1 | ||
Orientation Angled | ||
Shrouded/Unshrouded Shrouded | ||
Connector System MCS | ||
Mount Type Through Hole | ||
Contact Plating Tin | ||
Contact Material Electrolytic Copper | ||
Minimum Operating Temperature 60°C | ||
Row Pitch 3.5mm | ||
Termination Type Solder | ||
Contact Gender Male | ||
Tail Pin Length 3.8mm | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals RoHS | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Wago THT Male Header offers a reliable and high performance connection solution designed for versatile PCB integration. With a compact form factor, it features angled solder pins that are intricately crafted for optimal functionality. Engineered to ensure 100% protection against mismating, this connector enhances efficiency by providing a foolproof method to connect components, thus safeguarding against potential errors. The unique threaded flange design adds an extra layer of security during installation, making it suitable for various mounting orientations.
Constructed with gold plated contact surfaces for superior conductivity
Made from high grade polyamide ensuring durability and resilience
Incorporates anti rotation protection for stable connections
Solder pins have a precise dimension for reliable soldering
Environmental testing ensures performance in rigorous conditions
Ideal for applications requiring a high number of potentials
