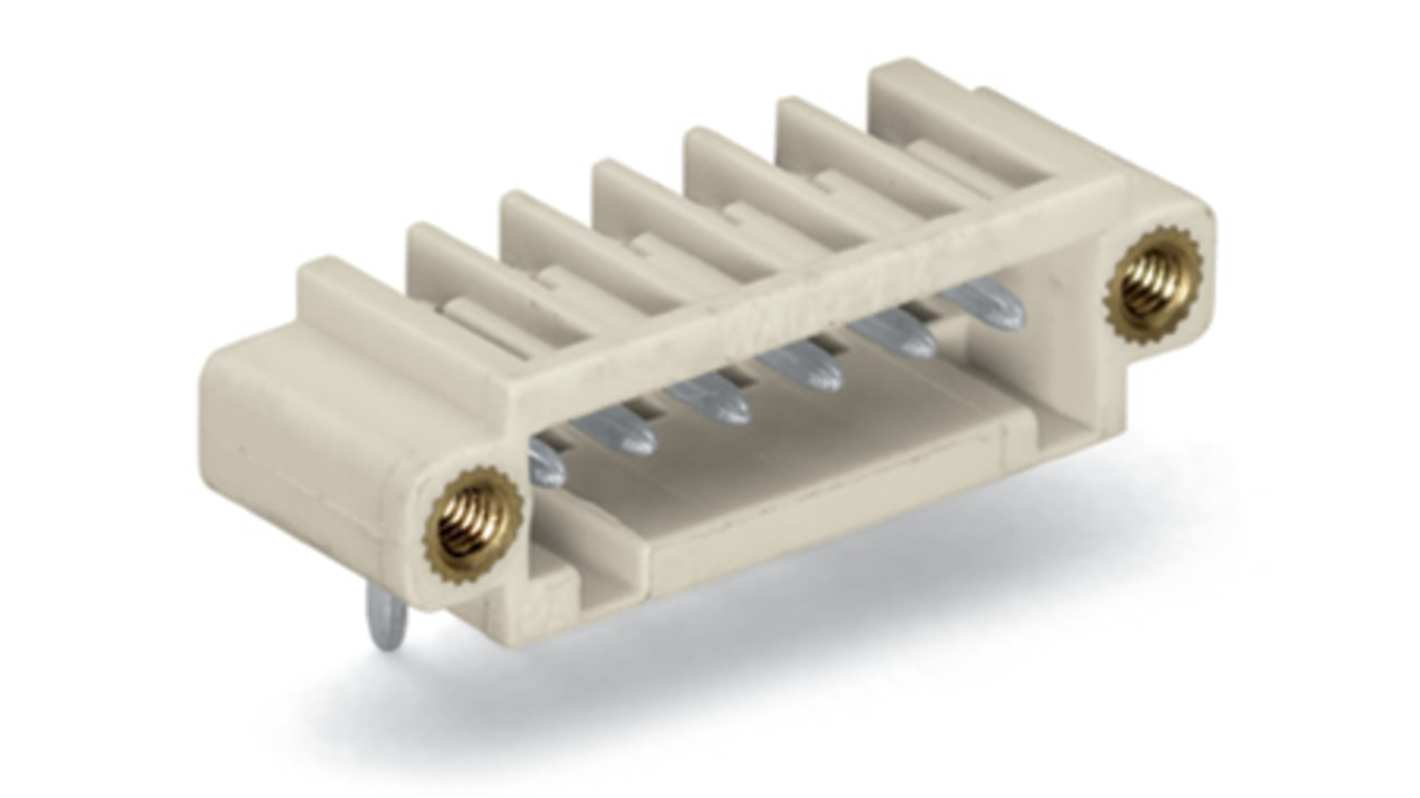

WAGO 734 Series Angled Through Hole Header, 8 Contact(s), 3.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 222-407
- Mfr. Part No.:
- 734-168/108-000
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£312.09
(exc. VAT)
£374.51
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £312.09 | £3.121 |
*price indicative
- RS Stock No.:
- 222-407
- Mfr. Part No.:
- 734-168/108-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 734 | |
| Product Type | Header | |
| Pitch | 3.5mm | |
| Current | 10A | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 8 | |
| Number of Rows | 1 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | MCS | |
| Mount Type | Through Hole | |
| Contact Plating | Tin | |
| Contact Material | Electrolytic Copper | |
| Termination Type | Solder | |
| Row Pitch | 3.5mm | |
| Minimum Operating Temperature | 60°C | |
| Tail Pin Length | 3.8mm | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Standards/Approvals | CSA, IEC/EN 60664-1, UL 1059 | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 734 | ||
Product Type Header | ||
Pitch 3.5mm | ||
Current 10A | ||
Housing Material Polyamide 66 | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Orientation Angled | ||
Shrouded/Unshrouded Shrouded | ||
Connector System MCS | ||
Mount Type Through Hole | ||
Contact Plating Tin | ||
Contact Material Electrolytic Copper | ||
Termination Type Solder | ||
Row Pitch 3.5mm | ||
Minimum Operating Temperature 60°C | ||
Tail Pin Length 3.8mm | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Standards/Approvals CSA, IEC/EN 60664-1, UL 1059 | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Wago THT Male Header is engineered for high performance connections, ensuring reliability in various applications. With its angled design, it provides a 100% protection against mismating, making it an excellent choice for custom PCB layouts. The pin spacing of 3.5 mm allows for effective utilisation in compact spaces, while the robust construction using polyamide offers resilience against environmental challenges.
Compliant with safety regulations promoting user protection
Coding options to prevent mismating with incorrect connectors
Compatible with various connector systems to enhance versatility
Constructed from durable materials for excellent longevity
Lightweight design enhances overall system efficiency
Temperature resistance ensures reliable performance in diverse conditions
