WAGO 734 Series Angled Through Hole Header, 2 Contact(s), 3.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 222-591
- Mfr. Part No.:
- 734-162/108-000
- Brand:
- WAGO
Subtotal (1 box of 200 units)*
£337.34
(exc. VAT)
£404.81
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £337.34 | £1.687 |
*price indicative
- RS Stock No.:
- 222-591
- Mfr. Part No.:
- 734-162/108-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Header | |
| Series | 734 | |
| Current | 10A | |
| Pitch | 3.5mm | |
| Number of Contacts | 2 | |
| Housing Material | Polyamide 66 | |
| Number of Rows | 1 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | MCS | |
| Mount Type | Through Hole | |
| Contact Material | Electrolytic Copper | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | 60°C | |
| Row Pitch | 3.5mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Tail Pin Length | 3.8mm | |
| Standards/Approvals | RoHS | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Header | ||
Series 734 | ||
Current 10A | ||
Pitch 3.5mm | ||
Number of Contacts 2 | ||
Housing Material Polyamide 66 | ||
Number of Rows 1 | ||
Orientation Angled | ||
Shrouded/Unshrouded Shrouded | ||
Connector System MCS | ||
Mount Type Through Hole | ||
Contact Material Electrolytic Copper | ||
Contact Plating Tin | ||
Minimum Operating Temperature 60°C | ||
Row Pitch 3.5mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Tail Pin Length 3.8mm | ||
Standards/Approvals RoHS | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE

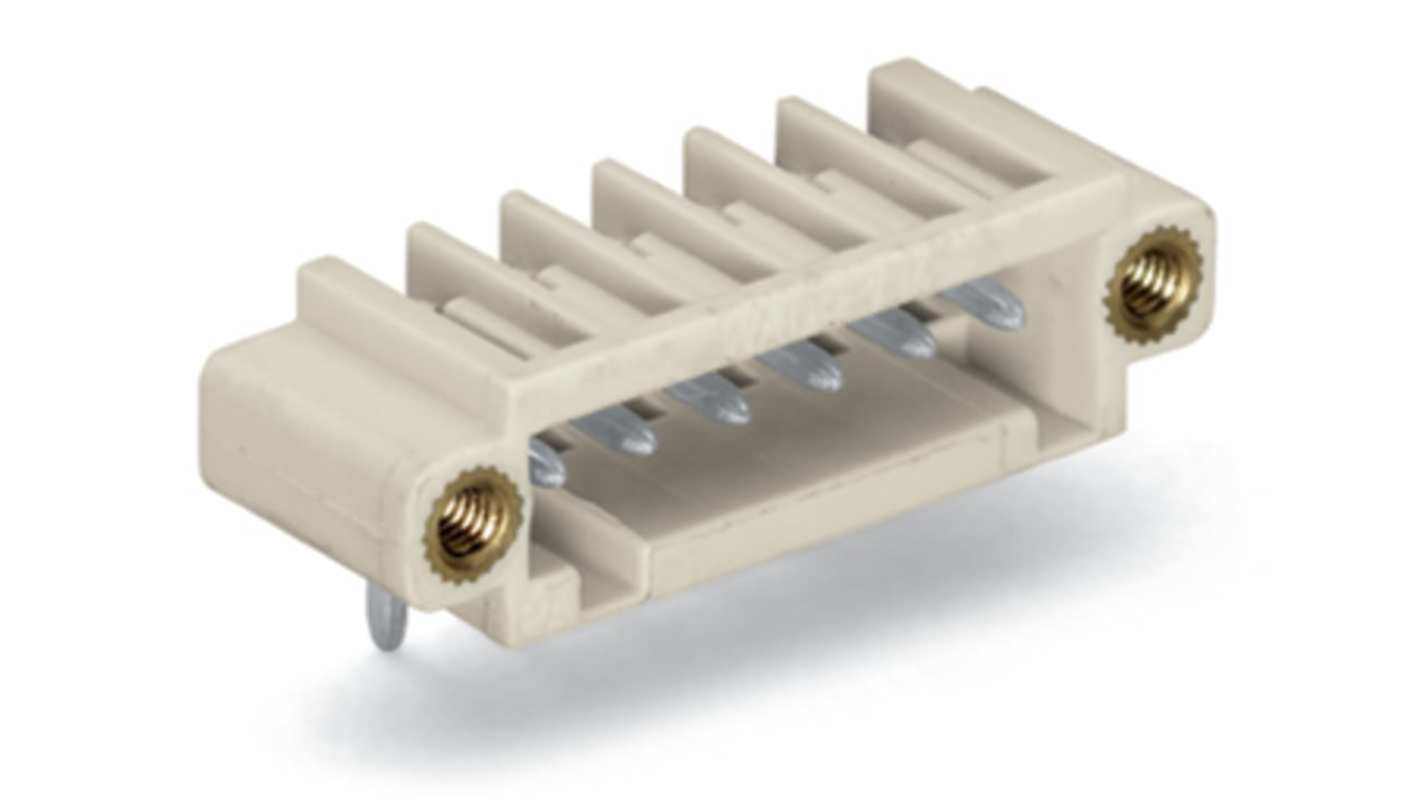

The Wago THT Male Header connector stands at the intersection of reliability and innovation, designed specifically for seamless integration into your electronic projects. With a compact build, it features a 1.0 x 1.0 mm solder pin, ensuring a secure connection that is 100% protected against mismating. The angled profile allows for flexible PCB mounting, while the threaded flange offers a robust locking mechanism for added security.
Constructed from durable materials to withstand challenging environments
Offers reliable electrical performance in accordance with IEC and EN standards
Environmentally compliant ensuring adherence to industry regulations
Lightweight design contributes to overall system efficiency
Easily configurable through the online configurator for tailored solutions
