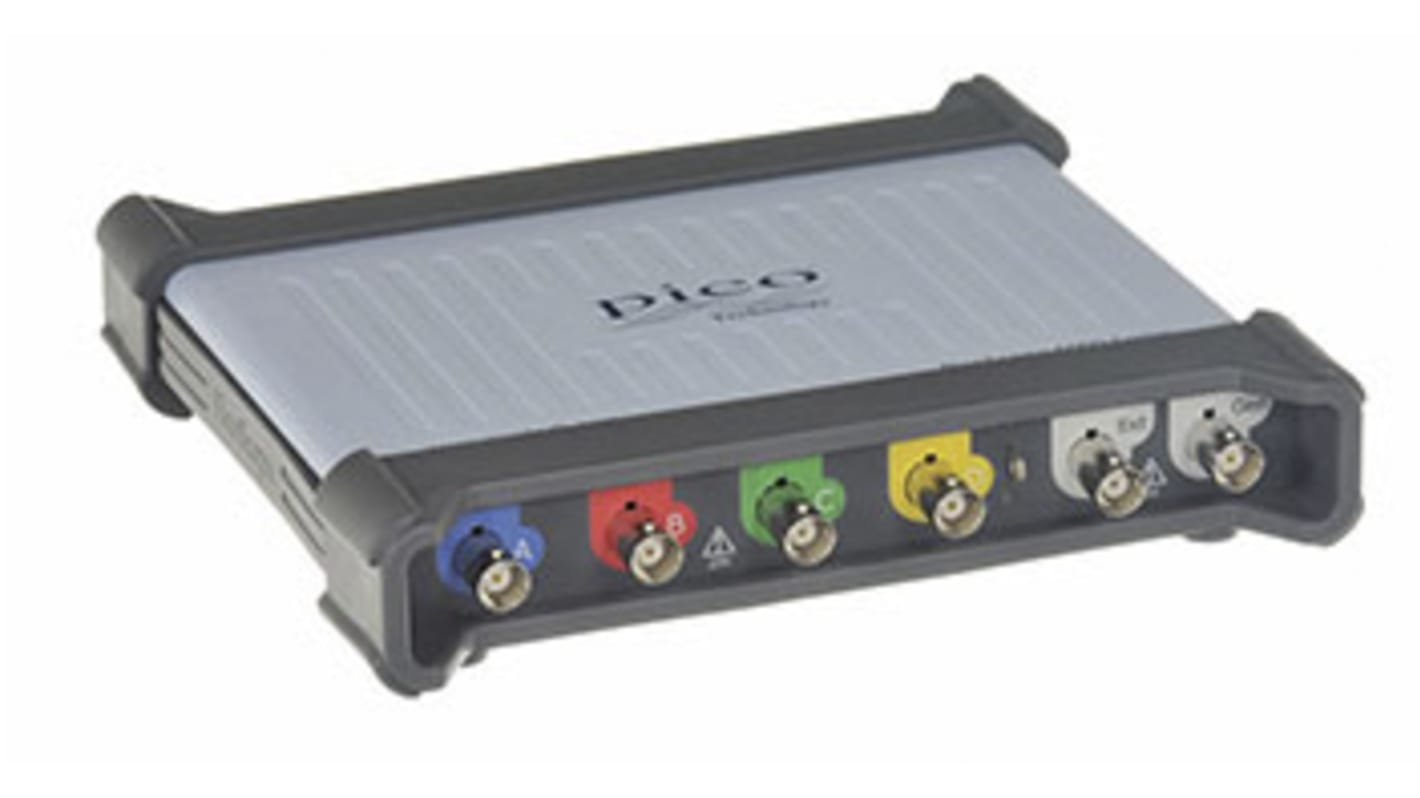

Pico Technology 5442D MSO PicoScope 5000D Series Digital PC Based Oscilloscope, 4 Analogue Channels, 60MHz - RS
- RS Stock No.:
- 174-9614
- Mfr. Part No.:
- PicoScope 5442D MSO
- Brand:
- Pico Technology
1 In stock for delivery within 3 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£1,873.25
(exc. VAT)
£2,247.90
(inc. VAT)
| Units | Per unit |
| 1 + | £1,873.25 |
- RS Stock No.:
- 174-9614
- Mfr. Part No.:
- PicoScope 5442D MSO
- Brand:
- Pico Technology
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
High speed and high resolution. Breakthrough ADC technology switches from 8 to 16 bits in the same oscilloscope.
Flexible Hardware Resolution, from 8 to 16 bits
200 MHz analog bandwidth
1 GS/s sampling at 8 bit resolution
500 MS/s sampling at 12 bit resolution
62.5 MS/s sampling at 16 bit resolution
512 MS buffer memory
100,000 waveforms per second
200 MS/s Arbitrary Waveform Generator
Serial decoding and mask testing as standard
Windows, Linux and Mac software
200 MHz analog bandwidth
1 GS/s sampling at 8 bit resolution
500 MS/s sampling at 12 bit resolution
62.5 MS/s sampling at 16 bit resolution
512 MS buffer memory
100,000 waveforms per second
200 MS/s Arbitrary Waveform Generator
Serial decoding and mask testing as standard
Windows, Linux and Mac software
Specifications
Attribute | Value |
|---|---|
| Number of Analogue Channels | 4 |
| Bandwidth | 60MHz |
| Digital/Analogue | Digital |
| Oscilloscope Form | Mixed Signal |
| Oscilloscope Type | PC Based |
| Series | PicoScope 5000D |
| Calibrated | RSCAL |
| Interface | CAN, LIN, RS232, RS422, RS485, SPI, UART, USB |
| Power Source | AC Adapter, USB |
| Minimum Vertical Sensitivity | 2mV/div |
| Maximum Vertical Sensitivity | 4V/div |
| Minimum Time Base | 1ns/div |
| Sample Rate Random | 2.5 Gsps |
| Vertical Resolution | 16 bit |
| Dimensions | 190 x 170 x 40mm |
| Weight | 0.5kg |
| Maximum Time Base | 5000s/div |
| Rise Time | 5.8ns |
