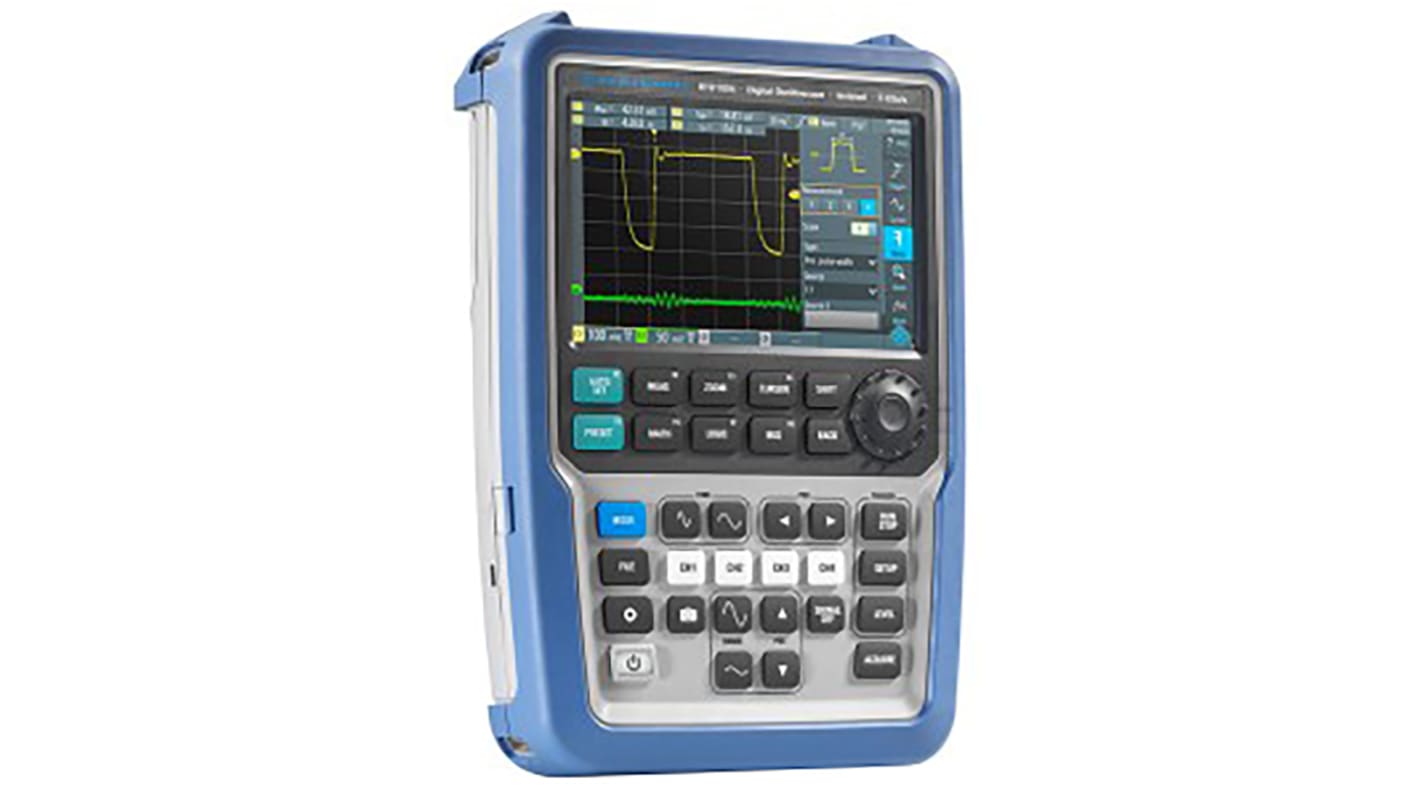

Rohde & Schwarz RTH1004 Scope Rider Series, 60MHz Handheld Oscilloscope, 4 Analogue Channels
- RS Stock No.:
- 125-9463
- Distrelec Article No.:
- 300-99-096
- Mfr. Part No.:
- RTH1004
- Brand:
- Rohde & Schwarz
Subtotal (1 unit)*
£4,159.08
(exc. VAT)
£4,990.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship from another location
- Plus 999,999,993 unit(s) shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4,159.08 |
*price indicative
Calibration Options:
- Calibration Type:
- UKAS
- RS Stock No.
- 125-9510
Each
£4,092.18
(exc. VAT)
£4,910.62
(inc. VAT)
- RS Stock No.:
- 125-9463
- Distrelec Article No.:
- 300-99-096
- Mfr. Part No.:
- RTH1004
- Brand:
- Rohde & Schwarz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rohde & Schwarz | |
| Bandwidth | 60MHz | |
| Number of Analogue Channels | 4 | |
| Oscilloscope Type | Handheld | |
| Interface | USB | |
| Oscilloscope Form | Digital Storage | |
| Sample Rate Random | 5 Gsps | |
| Screen Size | 7in | |
| Series | Scope Rider | |
| Safety Category | CAT III 1000 V, CAT IV 600V | |
| Display Type | TFT LCD | |
| Rise Time | <5.8ns | |
| Power Source | Battery, Mains | |
| Minimum Time Base | 1ns/div | |
| Battery Life | 4 h | |
| Minimum Vertical Sensitivity | 2mV/div | |
| Weight | 2.4kg | |
| Plug Type | Australia, Canada, China, Europe, Switzerland, UK, US | |
| Battery Type | Li-ion | |
| Dimensions | 201 x 74 x 293mm | |
| Vertical Resolution | 9 bit | |
| Maximum Time Base | 500s/div | |
| Digital/Analogue | Digital | |
| Maximum Vertical Sensitivity | 100V/div | |
Select all | ||
|---|---|---|
Brand Rohde & Schwarz | ||
Bandwidth 60MHz | ||
Number of Analogue Channels 4 | ||
Oscilloscope Type Handheld | ||
Interface USB | ||
Oscilloscope Form Digital Storage | ||
Sample Rate Random 5 Gsps | ||
Screen Size 7in | ||
Series Scope Rider | ||
Safety Category CAT III 1000 V, CAT IV 600V | ||
Display Type TFT LCD | ||
Rise Time <5.8ns | ||
Power Source Battery, Mains | ||
Minimum Time Base 1ns/div | ||
Battery Life 4 h | ||
Minimum Vertical Sensitivity 2mV/div | ||
Weight 2.4kg | ||
Plug Type Australia, Canada, China, Europe, Switzerland, UK, US | ||
Battery Type Li-ion | ||
Dimensions 201 x 74 x 293mm | ||
Vertical Resolution 9 bit | ||
Maximum Time Base 500s/div | ||
Digital/Analogue Digital | ||
Maximum Vertical Sensitivity 100V/div | ||
- COO (Country of Origin):
- CZ
Rohde & Schwarz RTH1004 Scope Rider Handheld Digital Oscilloscope 60 MHz 4 Channels
Rohde & Schwarz Scope Rider RTH1004 offers the performance and capabilities of a laboratory oscilloscope together with the form factor and ruggedness of a battery-operated handheld device. Digital control signals can be analysed with the 8-bit logic interface that is isolated from the analog input channels. The protocol trigger and decode capabity is unprecedented in handheld oscilloscopes and provides direct display of decoded messages. If extra safety is required, the RTH1004 can be remotely controlled with the Web browser via wireless LAN, separating the measurement location from the place where the user controls the instrument.
Features and Benefits
60 MHz with 5 Gsample/s sampling rate
4 isolated channels with CAT IV 600 V / CAT III 1000 V rating
10-bit ADC
50 000 waveforms per second
Capacitive touch and keypad operation
Integrated modes: lab performance oscilloscope; logic analyser; protocol analyser; data logger
IP51 housing meeting military environmental requirements
Wireless LAN and Ethernet for web-based remote control and quick data Access
Battery operates for more than 4 hours on one charge
4 isolated channels with CAT IV 600 V / CAT III 1000 V rating
10-bit ADC
50 000 waveforms per second
Capacitive touch and keypad operation
Integrated modes: lab performance oscilloscope; logic analyser; protocol analyser; data logger
IP51 housing meeting military environmental requirements
Wireless LAN and Ethernet for web-based remote control and quick data Access
Battery operates for more than 4 hours on one charge
Areas of Application
Safe debugging of embedded power supplies
Fast debugging using specialised triggers
Wireless control can be used for increased operator safety
Quick and efficient troubleshooting
Fast debugging using specialised triggers
Wireless control can be used for increased operator safety
Quick and efficient troubleshooting
Bandwidth Upgrades
Supplied with
500 MHz, 10:1, 600 V CAT IV voltage probe (1 per channel), 600 V CAT IV test lead (1 per meter input), user manual, lithium-ion battery pack, power supply with plugs for EU, CH, UK, US, CAN, China, Australia
Note
History and segmented memory software is now included in standard RTH configuration for free, offering a saving of up to 18%. This option enables automatic storage of up to 5000 waveforms in a separate history buffer of the oscilloscope. The waveform data can be accessed any time to analyze past acquisitions using all oscilloscope capabilities.
Rohde & Schwarz Scope Rider Handheld Digital Oscilloscope System
