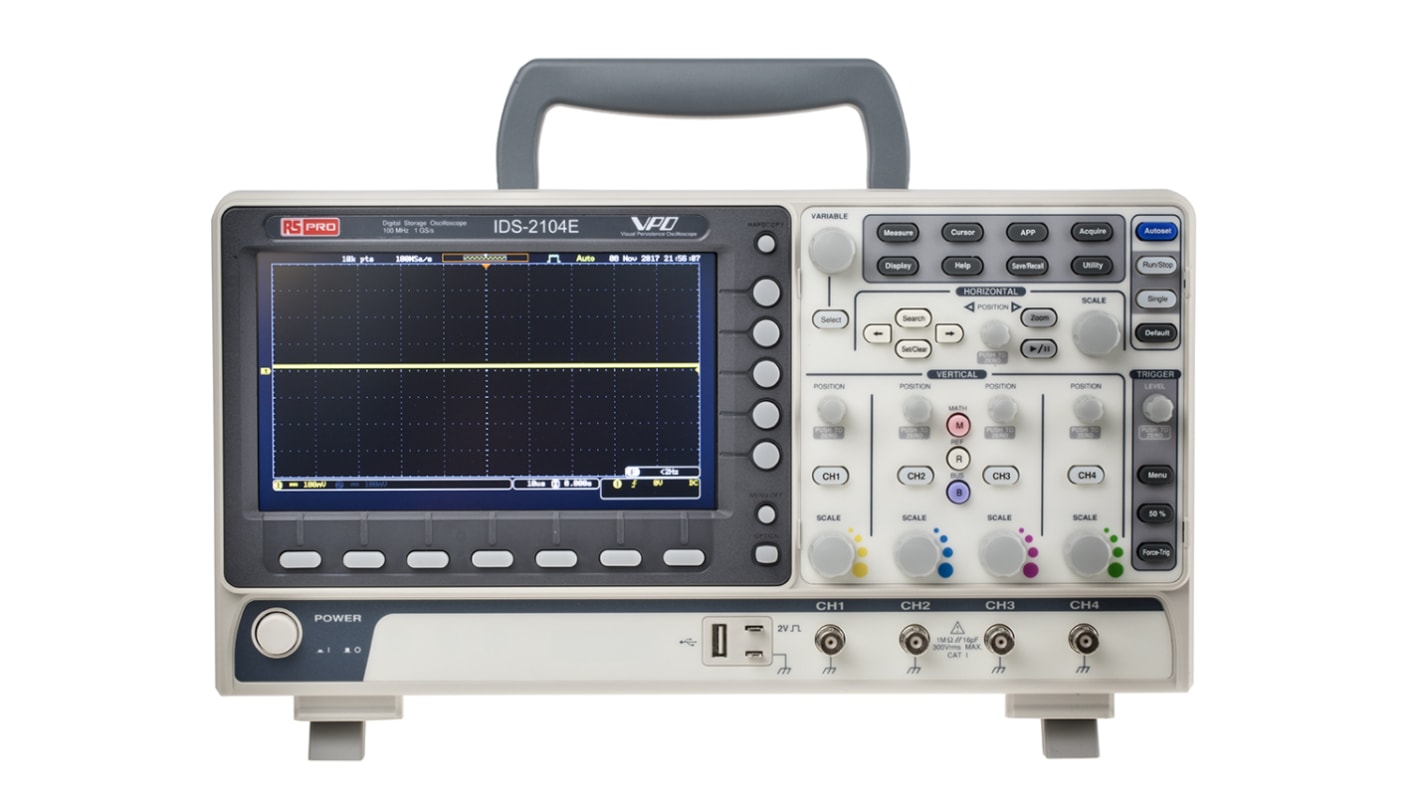

Name: RS PRO IDS2104E, 100MHz Digital Storage Oscilloscope, 4 Analogue Channels
Brand: RS PRO
SKU: 123-3552
Price: 1233.36 GBP
Availability: Discontinued

RS PRO IDS-2000E Series Visual Persistence Digital Oscilloscopes

RS PRO IDS-2000E Series Digital Storage Oscilloscopes (DSO) offer features normally only available on much higher-priced scopes or as expensive add-ons. The models are equipped with Visual Persistence Oscilloscope (VPO) technology. This uses a high-density IC for hardware acceleration to transfer all the acquired data into the displayed waveform image. RS Pro IDS-2000E Series can clearly display complex and random waveforms using its 8 inch 800 x 400 16:9 TFT LCD display and maximum 1 mV/div vertical range.

Options available:

1241956 - 200 MHz, 2 Channels

1233553 - 200 MHz, 4 Channels

1233552 - 100 MHz, 4 Channels

1241955 - 100 MHz, 2 Channels

1240233 - 70 MHz, 4 Channels

1233551 - 70 MHz, 2 Channels

Features and Benefits IDS-2000E Series

10 M depth of memory

VPO waveform display technology

Waveform update rate 120 000 wfm/sec

8 inch 800 x 480 TFT LCD display

Maximum 1 Mpts FFT

Digital filter function

Segmental waveform and waveform search functions

l²C/SPI/UART/CAN/LIN serial bus trigger and decoding function

Datalog function for waveform observation in long period of time

Network storage function

Dimensions: 384 x 208 x 127.3 mm

Weight: 2.8 kg

Typical Applications

Digital oscilloscopes are a complex and multi-functional electronic laboratory instrument used to capture, process, display and analyse the waveform and bandwidth of electronic signals. DSO versions have a memory to store waveforms and display them over a period of time. Oscilloscopes are used in a wide range of industries e.g.

Laboratories

Educational establishments

Product testing and Quality Assurance

Service operation and post-sales support

Product development and debugging

FAQs

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Note

PC software (OpenWave software) and Driver (USB driver, LabView driver) freely downloadable

Supplied with

Switchable passive probe (1 per channel), quick start guide, user manual on CD, power cord

Software download available here

RS Pro

Select all	Attribute	Value
	Brand	RS PRO
	Bandwidth	100MHz
	Number of Analogue Channels	4
	Oscilloscope Type	Digital Storage
	Interface	CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
	Sample Rate Random	1 Gsps
	Screen Size	8in
	Record Length	10M points
	Display Type	LCD
	Rise Time	3.5ns
	Maximum Time Base	100s/div
	Vertical Resolution	8 bit
	Safety Category Voltage	300V
	Power Source	Mains
	Maximum Vertical Sensitivity	10V/div
	Length	384mm
	Safety Category	CAT I 300 V, CAT II 300 V
	Minimum Time Base	1ns/div
	Dimensions	384 x 127.3 x 208mm
	Height	208mm
	Plug Type	Europe, UK
	Weight	2.8kg
	Safety Category Level	CAT I, CAT II
	Minimum Vertical Sensitivity	1mV/div

	Select all
	Brand RS PRO
	Bandwidth 100MHz
	Number of Analogue Channels 4
	Oscilloscope Type Digital Storage
	Interface CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
	Sample Rate Random 1 Gsps
	Screen Size 8in
	Record Length 10M points
	Display Type LCD
	Rise Time 3.5ns
	Maximum Time Base 100s/div
	Vertical Resolution 8 bit
	Safety Category Voltage 300V
	Power Source Mains
	Maximum Vertical Sensitivity 10V/div
	Length 384mm
	Safety Category CAT I 300 V, CAT II 300 V
	Minimum Time Base 1ns/div
	Dimensions 384 x 127.3 x 208mm
	Height 208mm
	Plug Type Europe, UK
	Weight 2.8kg
	Safety Category Level CAT I, CAT II
	Minimum Vertical Sensitivity 1mV/div

RS PRO IDS2104E, 100MHz Digital Storage Oscilloscope, 4 Analogue Channels
