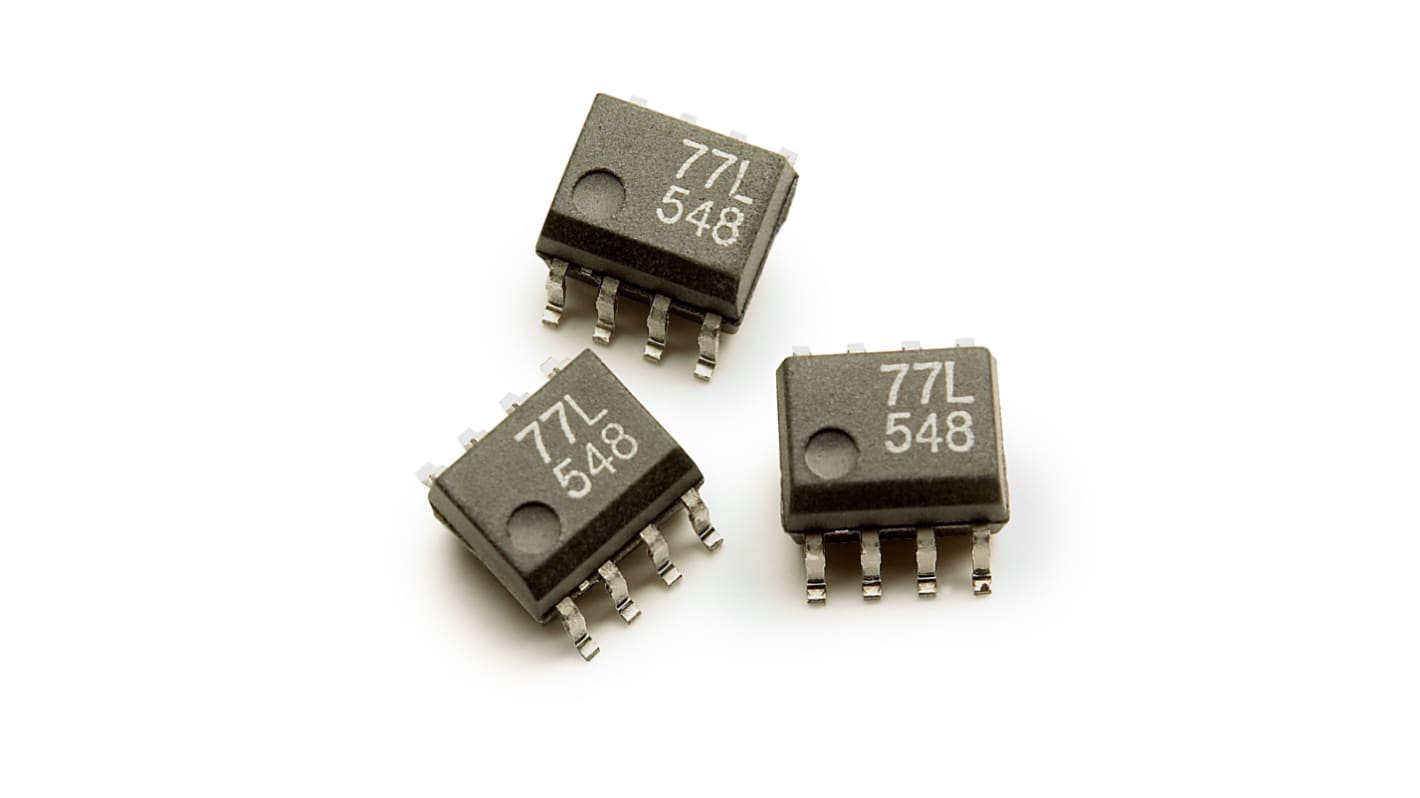

Broadcom DC Input Optocoupler, Surface Mount, 8-Pin SO
- RS Stock No.:
- 230-5292
- Mfr. Part No.:
- ACPL-077L-500E
- Brand:
- Broadcom
Subtotal (1 reel of 1500 units)*
£1,890.00
(exc. VAT)
£2,265.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 01 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £1.26 | £1,890.00 |
*price indicative
- RS Stock No.:
- 230-5292
- Mfr. Part No.:
- ACPL-077L-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mount Type | Surface Mount | |
| Product Type | Optocoupler | |
| Packaging | Tape & Reel | |
| Number of Channels | 1 | |
| Number of Pins | 8 | |
| Package Type | SO | |
| Input Current Type | DC | |
| Typical Rise Time | 4μs | |
| Maximum Input Current | 150mA | |
| Isolation Voltage | 567V Pk | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UL 1577, CSA, IEC/EN/DIN EN 60747-5-5, RoHS | |
| Typical Fall Time | 3μs | |
| Series | ACPL | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Mount Type Surface Mount | ||
Product Type Optocoupler | ||
Packaging Tape & Reel | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type SO | ||
Input Current Type DC | ||
Typical Rise Time 4μs | ||
Maximum Input Current 150mA | ||
Isolation Voltage 567V Pk | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UL 1577, CSA, IEC/EN/DIN EN 60747-5-5, RoHS | ||
Typical Fall Time 3μs | ||
Series ACPL | ||
Automotive Standard No | ||
The Broadcom ACPL series optocoupler utilizes the latest CMOS IC technology to achieve outstanding speed and low power performance of minimum 25-MBd data rate and 6-ns maximum pulse width distortion with enhanced reliability relative to system-level IEC 61000-4-X testing.
CMOS buffer input
Allow level shifting functionality
High speed
