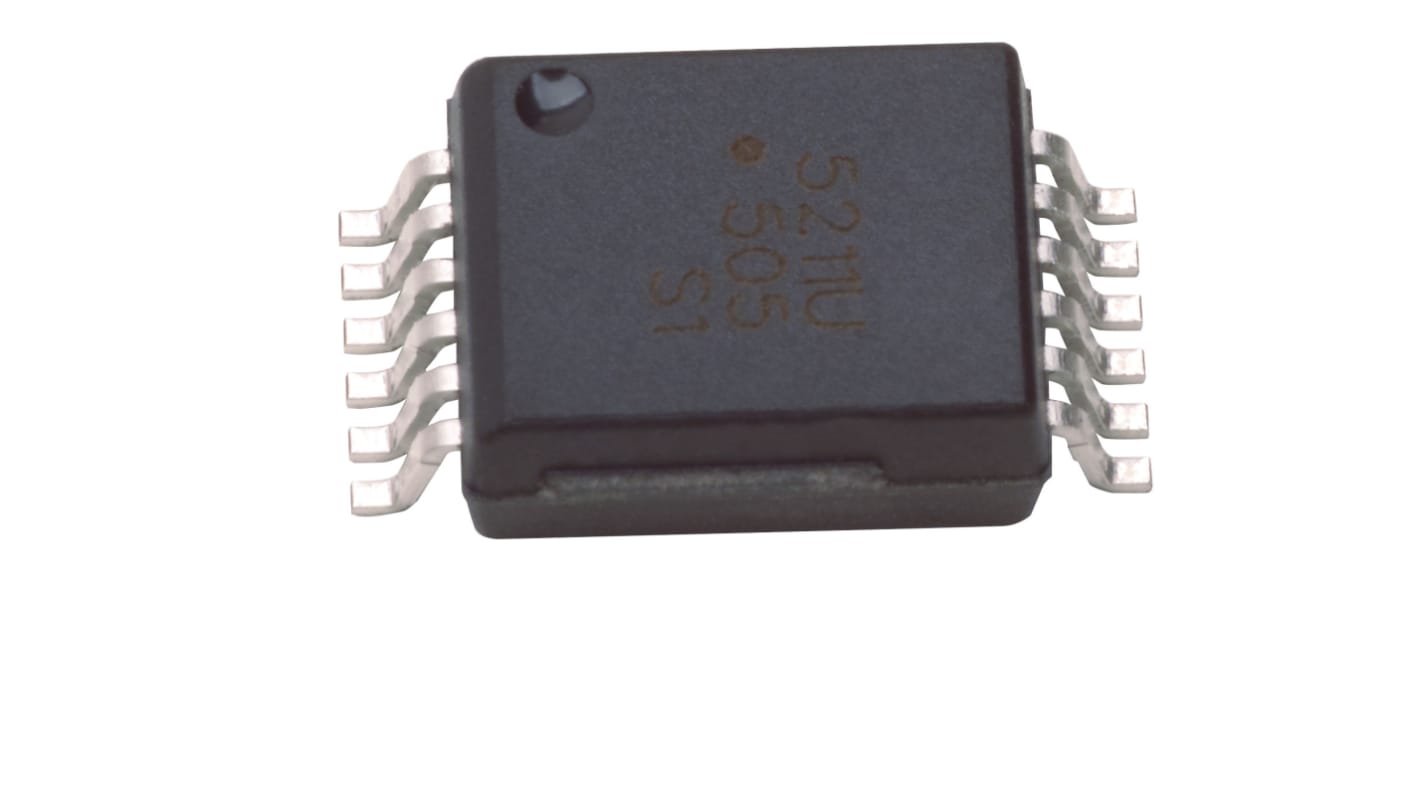

Broadcom DC Input Optocoupler, Surface Mount, 12-Pin SO-12

View all Optocouplers
Bulk discount available

Subtotal (1 reel of 1000 units)*

£1,440.00

(exc. VAT)

£1,730.00

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
Per Reel*
1000 - 1000£1.44£1,440.00
2000 - 4000£1.403£1,403.00
5000 +£1.368£1,368.00

*price indicative

RS Stock No.:
239-9279
Mfr. Part No.:
ACFL-3161-500E
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Product Type

Optocoupler

Mount Type

Surface Mount

Maximum Forward Voltage

1.55V

Packaging

Tape & Reel

Number of Channels

1

Number of Pins

12

Package Type

SO-12

Input Current Type

DC

Typical Rise Time

7μs

Maximum Input Current

230mA

Isolation Voltage

5kVrms

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Standards/Approvals

RoHS

Typical Fall Time

7μs

Series

ACFL-3161

Automotive Standard

No

COO (Country of Origin):
PH
The Broadcom ACFL-3161 driver is a 10A peak, rail-to-rail output gate drive optocoupler. It comes in a compact, surface-mountable SO-12 package for spacesavings. The ACFL-3161 is primarily designed with high peak driving current capability to ensure optimum performance for direct driving SiC MOSFET or IGBT in various applications. The ACFL-3161 features fast propagation delay and tight dead time distortion, which make it ideal for driving SiC MOSFET and IGBTs at high frequency.

Industrial temperature range –40°C to +125°C

High output driving current 10A peak

Rail-to rail output voltage

Propagation delay 95 ns max

Dead time distortion 35 ns max

Wide operating supply (VDD) range 15V to 30V

Under Voltage Lock-out (UVLO) protection with hysteresis

Low supply current allows bootstrap half-bridge topology IDD = 4 mA max

Common Mode Transient Immunity (CMTI) 100 kV/μs at VCM = 1000V
