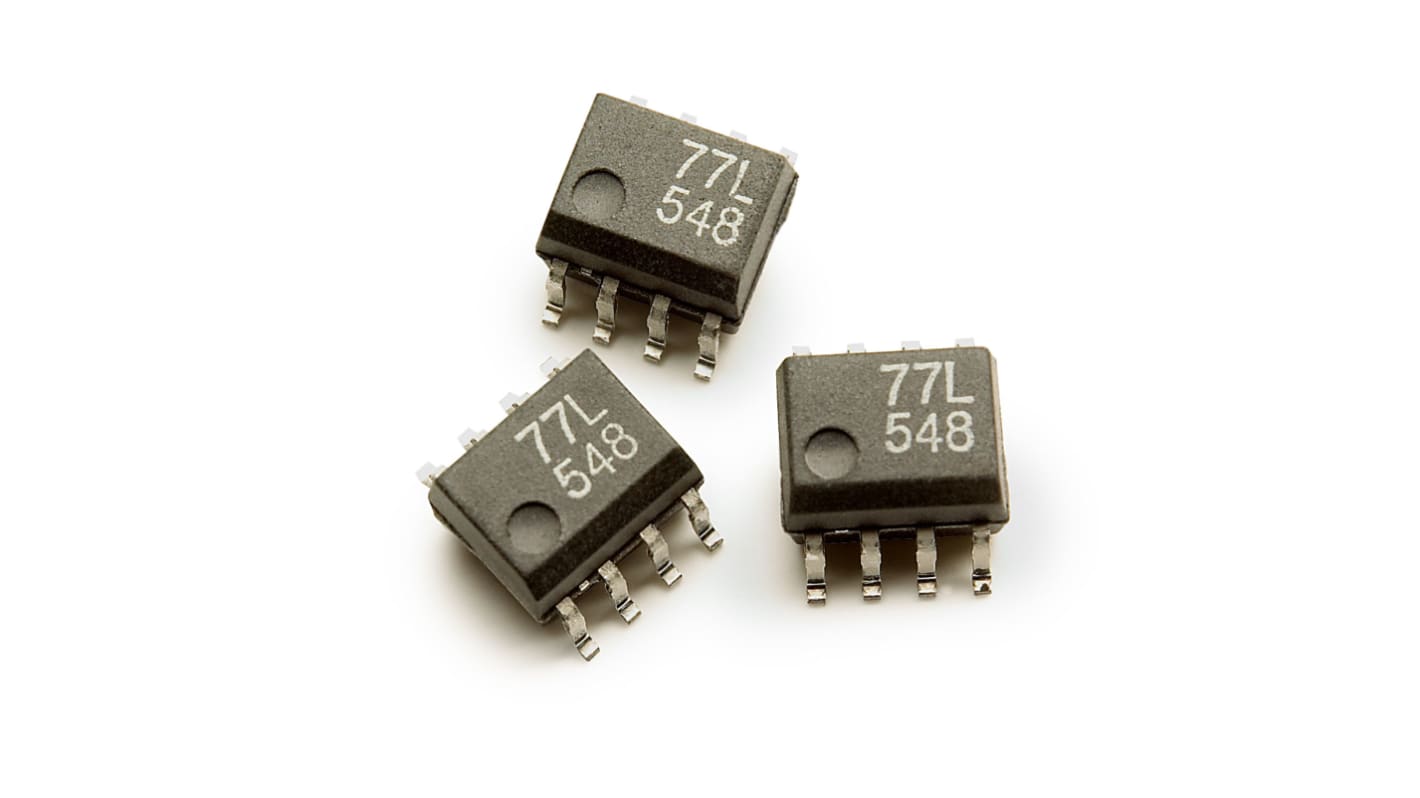

Broadcom, ACPL-077L-500E CMOS Output Optocoupler, Surface Mount, 8-Pin SO
- RS Stock No.:
- 230-5293
- Mfr. Part No.:
- ACPL-077L-500E
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 pack of 2 units)*
£6.00
(exc. VAT)
£7.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 508 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 48 | £3.00 | £6.00 |
| 50 - 98 | £2.13 | £4.26 |
| 100 - 498 | £1.75 | £3.50 |
| 500 - 998 | £1.47 | £2.94 |
| 1000 + | £1.40 | £2.80 |
*price indicative
- RS Stock No.:
- 230-5293
- Mfr. Part No.:
- ACPL-077L-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mounting Type | Surface Mount | |
| Output Device | CMOS | |
| Number of Channels | 1 | |
| Number of Pins | 8 | |
| Package Type | SO | |
| Series | ACPL | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Output Device CMOS | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type SO | ||
Series ACPL | ||
- COO (Country of Origin):
- PH
The Broadcom ACPL series optocoupler utilizes the latest CMOS IC technology to achieve outstanding speed and low power performance of minimum 25-MBd data rate and 6-ns maximum pulse width distortion with enhanced reliability relative to system-level IEC 61000-4-X testing.
CMOS buffer input
Allow level shifting functionality
High speed
Allow level shifting functionality
High speed
