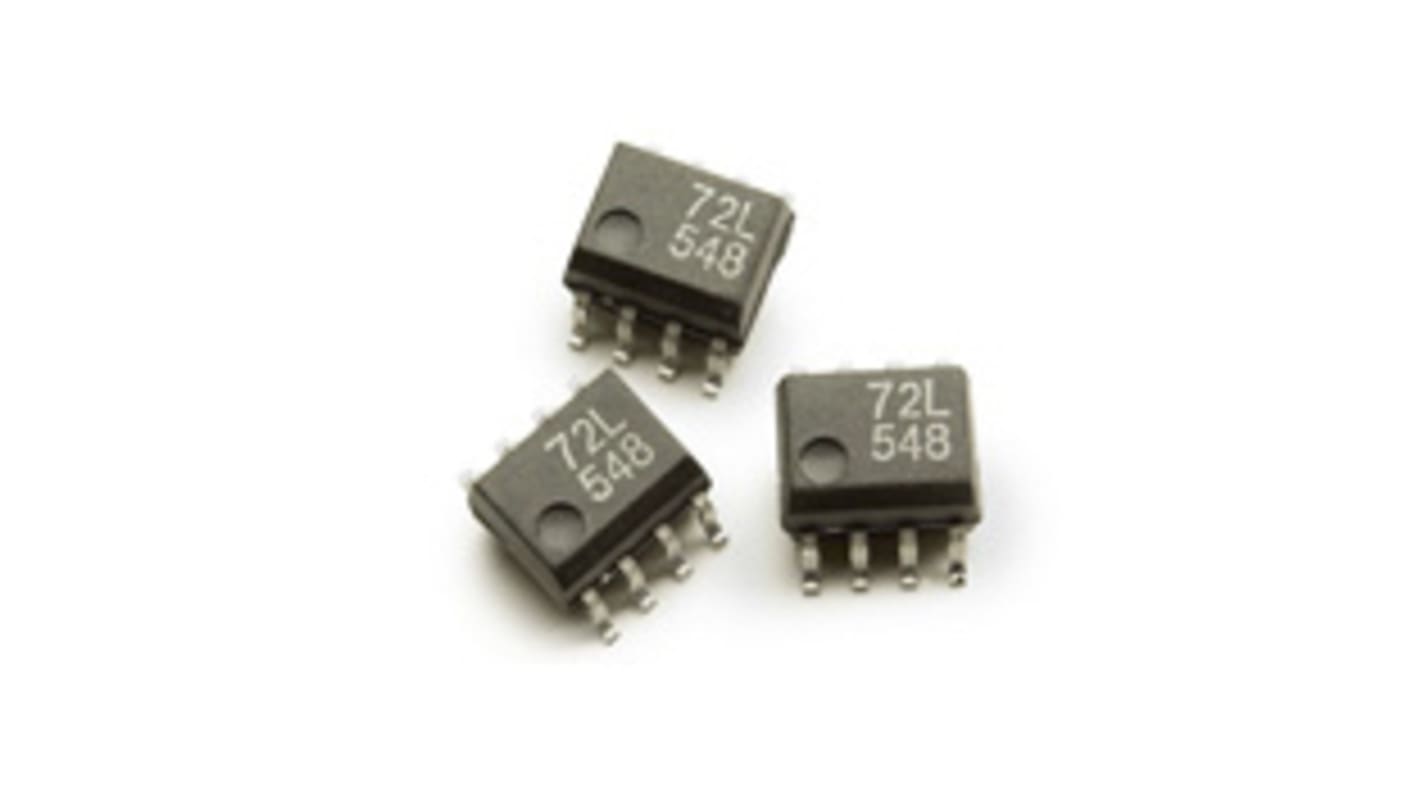

Broadcom, ACPL-072L-500E CMOS Output Optocoupler, Surface Mount, 8-Pin SO
- RS Stock No.:
- 174-3607
- Mfr. Part No.:
- ACPL-072L-500E
- Brand:
- Broadcom
Subtotal (1 reel of 1500 units)*
£2,535.00
(exc. VAT)
£3,045.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £1.69 | £2,535.00 |
*price indicative
- RS Stock No.:
- 174-3607
- Mfr. Part No.:
- ACPL-072L-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mounting Type | Surface Mount | |
| Output Device | CMOS | |
| Maximum Forward Voltage | 1.85V | |
| Number of Channels | 1 | |
| Number of Pins | 8 | |
| Package Type | SO | |
| Typical Rise Time | 0.009µs | |
| Maximum Input Current | 15 mA | |
| Isolation Voltage | 7.5 kV | |
| Logic Output | Yes | |
| Typical Fall Time | 0.008µs | |
| Series | ACPL | |
Select all | ||
|---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Output Device CMOS | ||
Maximum Forward Voltage 1.85V | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type SO | ||
Typical Rise Time 0.009µs | ||
Maximum Input Current 15 mA | ||
Isolation Voltage 7.5 kV | ||
Logic Output Yes | ||
Typical Fall Time 0.008µs | ||
Series ACPL | ||
- COO (Country of Origin):
- PH
The Broadcom ACPL-072L digital optocoupler utilizes the latest CMOS IC technology to achieve an outstanding 25MBd minimum data rate and 6ns maximum pulse width distortion. Basic building blocks of this digital optocoupler family are a CMOS LED driver IC, a high speed LED and a CMOS detector IC. A CMOS logic input signal controls the LED driver IC, which supplies current to the LED. The detector IC incorporates an integrated photodiode, a high speed trans impedance amplifier, and a voltage comparator with an output driver.
3.3V and 5V CMOS Compatibility
High Speed: DC to 25 MBd
6ns max. Pulse Width Distortion
40 ns max. Prop. Delay
20 ns max. Prop. Delay Skew
10 kV/μs min. Common Mode Rejection
-40ºC to 105ºC Temperature Range
Safety and Regulatory Approvals Pending
UL Recognised
-3750V rms for 1 min. per UL1577 for ACPL-072L
CSA Component Acceptance Notice #5
IEC/EN/DIN EN 60747-5-2 for option 060
High Speed: DC to 25 MBd
6ns max. Pulse Width Distortion
40 ns max. Prop. Delay
20 ns max. Prop. Delay Skew
10 kV/μs min. Common Mode Rejection
-40ºC to 105ºC Temperature Range
Safety and Regulatory Approvals Pending
UL Recognised
-3750V rms for 1 min. per UL1577 for ACPL-072L
CSA Component Acceptance Notice #5
IEC/EN/DIN EN 60747-5-2 for option 060
