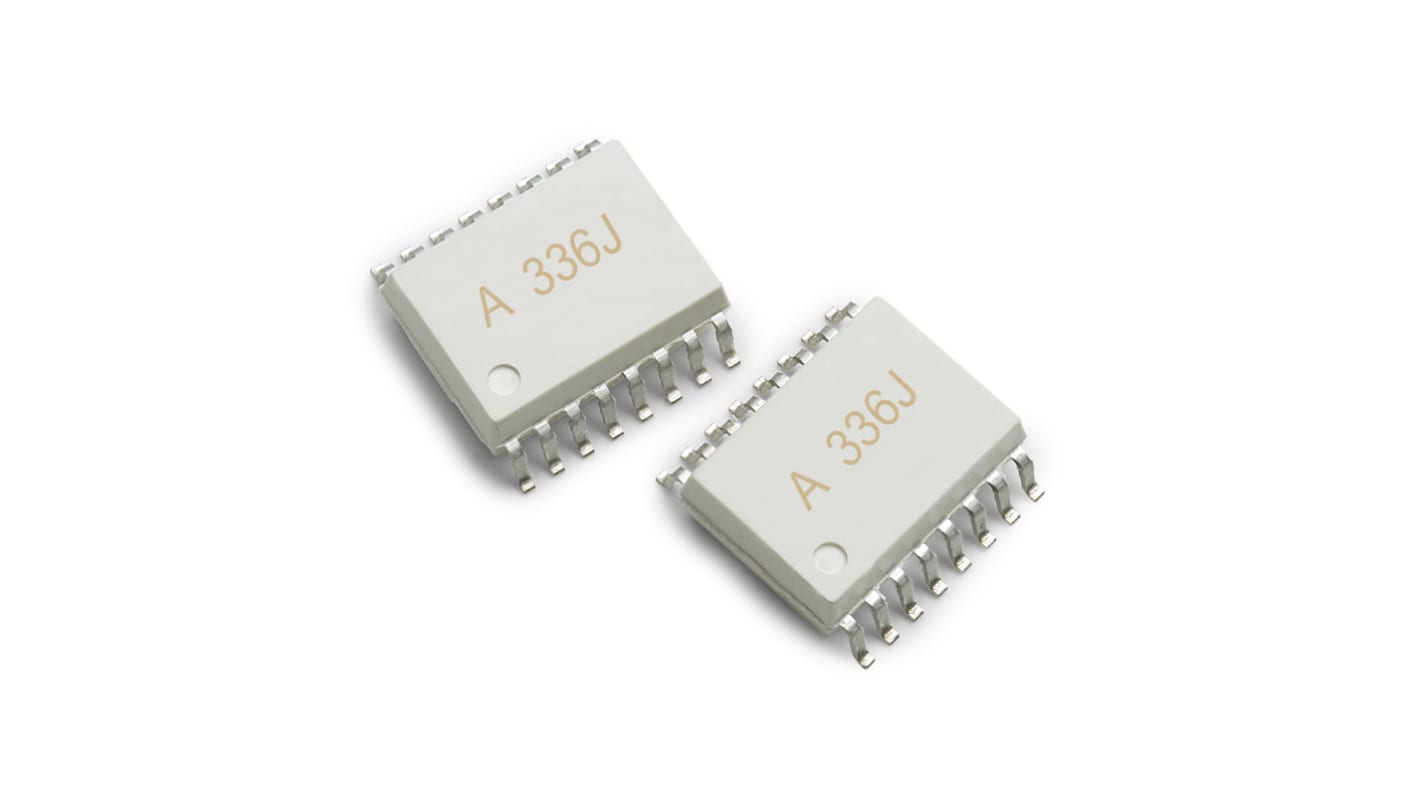

Broadcom DC Input Optocoupler, Surface Mount, 16-Pin SO
- RS Stock No.:
- 230-5294
- Mfr. Part No.:
- ACPL-336J-500E
- Brand:
- Broadcom
Subtotal (1 reel of 850 units)*
£2,363.00
(exc. VAT)
£2,839.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 850 + | £2.78 | £2,363.00 |
*price indicative
- RS Stock No.:
- 230-5294
- Mfr. Part No.:
- ACPL-336J-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | Optocoupler | |
| Mount Type | Surface Mount | |
| Maximum Forward Voltage | 1.55V | |
| Number of Channels | 1 | |
| Packaging | Tape & Reel | |
| Number of Pins | 16 | |
| Package Type | SO | |
| Input Current Type | DC | |
| Typical Rise Time | 80μs | |
| Isolation Voltage | 1414V Pk | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS, UL 1577, IEC/EN/DIN EN 60747-5-5, CSA | |
| Typical Fall Time | 45μs | |
| Series | ACPL | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type Optocoupler | ||
Mount Type Surface Mount | ||
Maximum Forward Voltage 1.55V | ||
Number of Channels 1 | ||
Packaging Tape & Reel | ||
Number of Pins 16 | ||
Package Type SO | ||
Input Current Type DC | ||
Typical Rise Time 80μs | ||
Isolation Voltage 1414V Pk | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS, UL 1577, IEC/EN/DIN EN 60747-5-5, CSA | ||
Typical Fall Time 45μs | ||
Series ACPL | ||
Automotive Standard No | ||
The Broadcom ACPL series gate drive optocoupler features fast propagation delay with excellent timing skew performance. Smart features that are integrated to protect the IGBT include IGBT desaturation detection with soft shutdown protection and fault feedback, undervoltage lockout and feedback, and active miller current clamping.
2.5 A maximum peak output current
Rail-to-rail output voltage
Integrated fail-safe IGBT protection
Integrated input LED driver
250 ns maximum propagation delay over temperature
