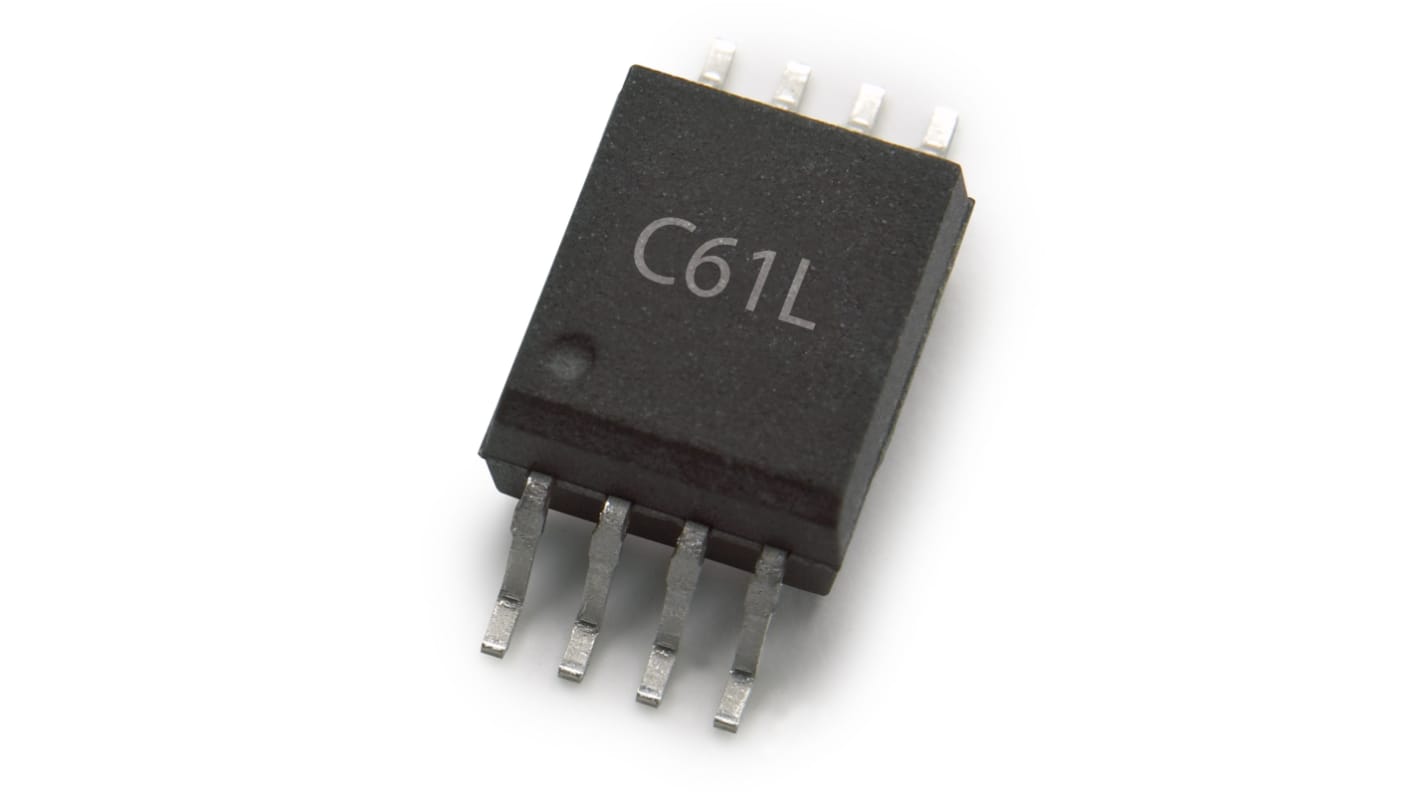

Broadcom, ACPL-C61L-500E DC Input IGBT Gate Drive Output Optocoupler, Surface Mount, 8-Pin SO
- RS Stock No.:
- 230-5300
- Mfr. Part No.:
- ACPL-C61L-500E
- Brand:
- Broadcom
Subtotal (1 reel of 1000 units)*
£1,290.00
(exc. VAT)
£1,550.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £1.29 | £1,290.00 |
*price indicative
- RS Stock No.:
- 230-5300
- Mfr. Part No.:
- ACPL-C61L-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mounting Type | Surface Mount | |
| Output Device | IGBT Gate Drive | |
| Maximum Forward Voltage | 1.5V | |
| Number of Channels | 1 | |
| Number of Pins | 8 | |
| Package Type | SO | |
| Input Current Type | DC | |
| Series | ACPL | |
Select all | ||
|---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Output Device IGBT Gate Drive | ||
Maximum Forward Voltage 1.5V | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type SO | ||
Input Current Type DC | ||
Series ACPL | ||
The Broadcom ACPL series is an optically coupled optocoupler that combines an AlGaAs light emitting diode and an integrated high gain photo detector addresses the low power need. The optocoupler consumes extremely low power, at maximum 1.5 mA IDD per channel across temperature.
Ultra low current IDD consumption
Built-in slew-rate controlled output
Tristate output with enable pin VE
High speed
Built-in slew-rate controlled output
Tristate output with enable pin VE
High speed
