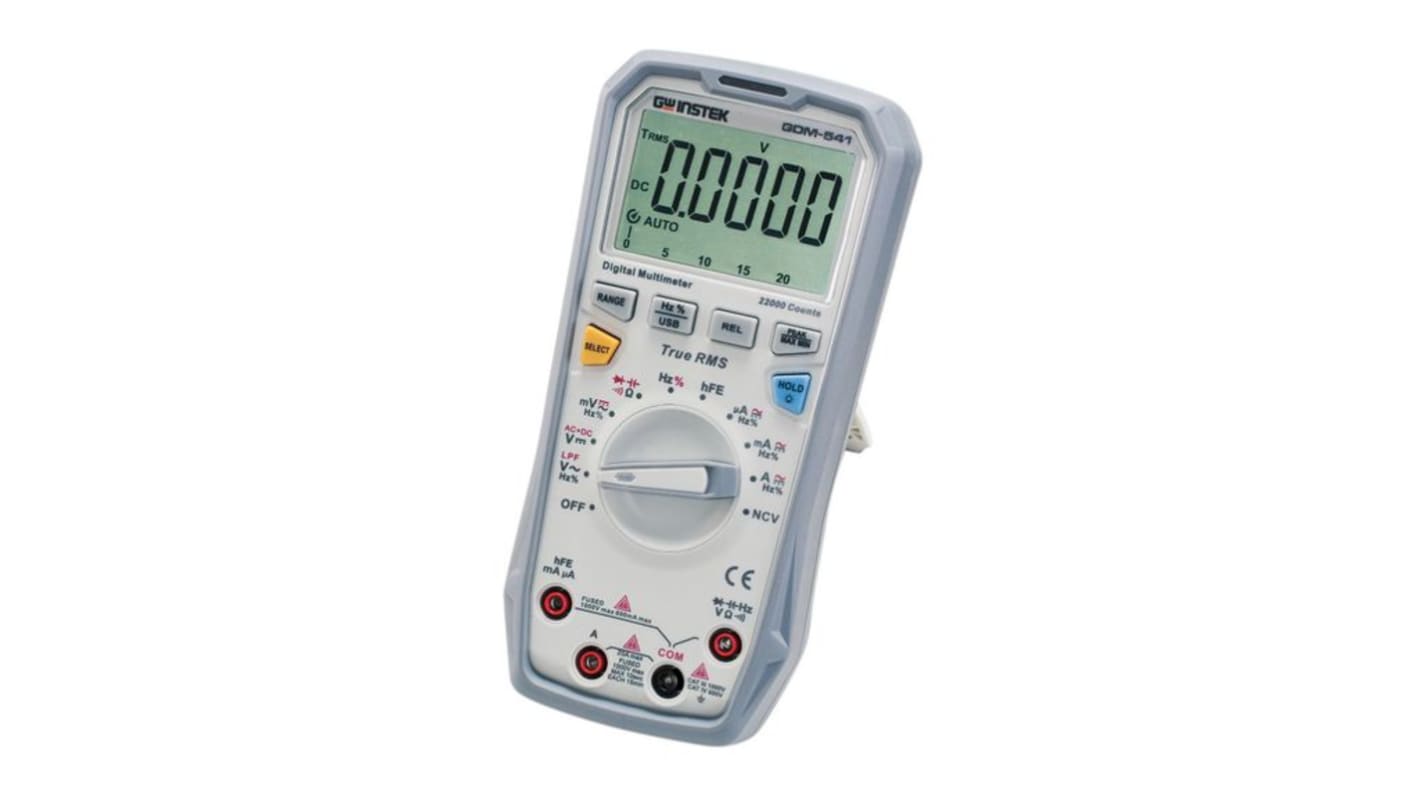

GW Instek GDM-541 GDM 500 Handheld LCD Backlight Digital Multimeter True RMS, 20 A ac, 20 A dc, 1 kV ac

RS Stock No.:: 283-5945
Distrelec Article No.:: 303-82-817
Mfr. Part No.:: GDM-541
Brand:: GW Instek

Currently unavailable

Sorry, we don't know when this will be back in stock.

RS Stock No.:: 283-5945
Distrelec Article No.:: 303-82-817
Mfr. Part No.:: GDM-541
Brand:: GW Instek

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	GW Instek
	Multimeter Type	Handheld
	Product Type	Digital Multimeter
	Model Number	GDM-541
	Display Type	LCD Backlight
	Functions Measured	AC Current, AC Voltage, Battery Test, DC Current, DC Voltage, Diode Test, Resistance, Temperature
	Maximum AC Voltage Measurement	1kV ac
	Maximum DC Voltage Measurement	1kV dc
	Maximum Resistance Measurement	220mΩ
	Maximum DC Current Measurement	20A dc
	Maximum AC Current Measurement	20A ac
	True RMS	Yes
	DC Current Accuracy	±0.8 % rdg + 10 Digits
	AC Voltage Accuracy	±0.8 % rdg + 10 Digits
	AC Current Accuracy	±0.8 % rdg + 10 Digits
	DC Voltage Accuracy	±0.05 % rdg + 5 Digits
	Maximum Frequency	220MHz
	Power Source	Battery
	Resistance Measurement Accuracy	±0.5 % rdg + 10 Digits
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	1000°C
	Standards/Approvals	EN 61010
	Weight	400g
	Series	GDM 500
	Width	89mm
	Length	49mm
	Height	186mm
	Safety Category Level	CAT III, CAT IV
	Safety Category Voltage	1000V ac
	Battery Type	1.5 V AAA

	Select all
	Brand GW Instek
	Multimeter Type Handheld
	Product Type Digital Multimeter
	Model Number GDM-541
	Display Type LCD Backlight
	Functions Measured AC Current, AC Voltage, Battery Test, DC Current, DC Voltage, Diode Test, Resistance, Temperature
	Maximum AC Voltage Measurement 1kV ac
	Maximum DC Voltage Measurement 1kV dc
	Maximum Resistance Measurement 220mΩ
	Maximum DC Current Measurement 20A dc
	Maximum AC Current Measurement 20A ac
	True RMS Yes
	DC Current Accuracy ±0.8 % rdg + 10 Digits
	AC Voltage Accuracy ±0.8 % rdg + 10 Digits
	AC Current Accuracy ±0.8 % rdg + 10 Digits
	DC Voltage Accuracy ±0.05 % rdg + 5 Digits
	Maximum Frequency 220MHz
	Power Source Battery
	Resistance Measurement Accuracy ±0.5 % rdg + 10 Digits
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 1000°C
	Standards/Approvals EN 61010
	Weight 400g
	Series GDM 500
	Width 89mm
	Length 49mm
	Height 186mm
	Safety Category Level CAT III, CAT IV
	Safety Category Voltage 1000V ac
	Battery Type 1.5 V AAA

Datasheet - GDM-541

COO (Country of Origin):: CN

The Hand-Held Digital Multimeter is a compact, high precision, battery-operated multimeter designed to meet the needs of service engineers. With features such as automatic power off, large backlight display, and NCV function, this multimeter is ideal for accurate measurements in various settings.

22000 Counts Auto/Manual Ranging

Audible/Visual Alarm for Overload

ACV Measurement up to 1000V

AC+DC Voltage Measurement

Current Measurement up to 20A

Transistor (hFE) Measurement

Frequency Measurement up to 220MHz

Diode and Continuity Testing

USB Interface for Data Transfer

Compact design for ease of use
