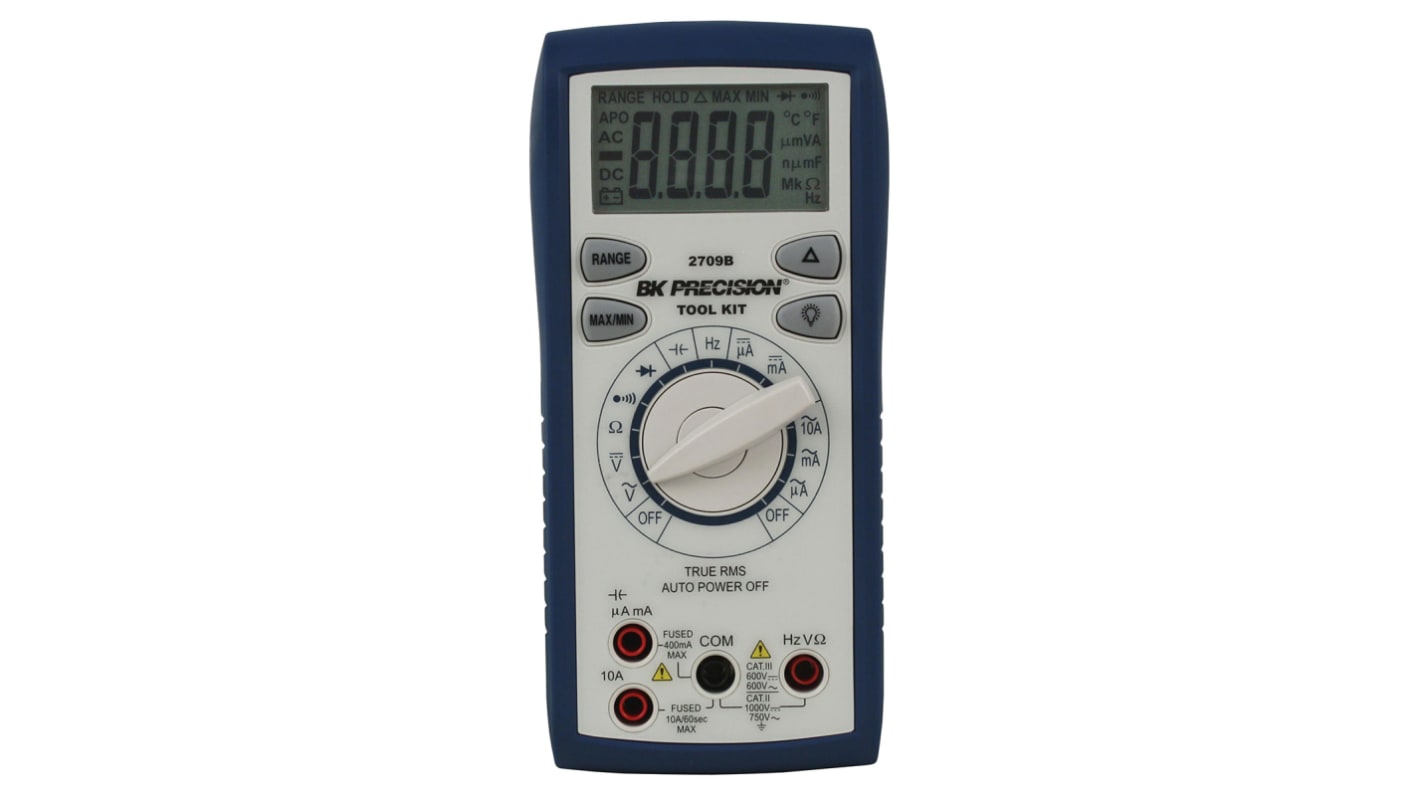

BK Precision BK2709B Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - RS Calibrated
- RS Stock No.:
- 192-5046
- Mfr. Part No.:
- BK2709B
- Brand:
- BK Precision
Available to back order for despatch when stock is available
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£162.87
(exc. VAT)
£195.44
(inc. VAT)
| Units | Per unit |
| 1 + | £162.87 |
- RS Stock No.:
- 192-5046
- Mfr. Part No.:
- BK2709B
- Brand:
- BK Precision
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The 2709B is a full featured auto ranging true RMS DMM that combines performance, value and functionality. The 6600 count LCD has a green back light that allows the meter to be used in dimly lit environments. The 2709B can measure resistance values up to 66 Mohm and capacitance to 66 mF. With the auto power off feature you won't have to worry about accidental battery consumption.
Magnetic hanger
One-handed operation
True RMS
Large easy-to-read LCD with backlight
Auto/manual ranging
Auto power off
DC voltage to 1000 V
Measures up to 10 A (AC & DC)
AC voltage to 750 V
Resistance to 66 Mohm
Capacitance to 66 mF
Frequency counter to 66 MHz
Diode test
Continuity test
One-handed operation
True RMS
Large easy-to-read LCD with backlight
Auto/manual ranging
Auto power off
DC voltage to 1000 V
Measures up to 10 A (AC & DC)
AC voltage to 750 V
Resistance to 66 Mohm
Capacitance to 66 mF
Frequency counter to 66 MHz
Diode test
Continuity test
Specifications
Attribute | Value |
|---|---|
| Multimeter Type | Handheld |
| Model Number p | BK2709B |
| Display Type | Digital |
| Calibrated | RSCAL |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum Resistance Measurement | 66MΩ |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum Capacitance Measurement | 66mF |
| Maximum Frequency | 500Hz |
| DC Current Measurement Resolution | 0.1µA dc |
| AC Current Measurement Resolution | 0.1µA ac |
| AC Voltage Measurement Resolution | 0.1mV ac |
| Resistance Measurement Resolution | 100mΩ |
| DC Voltage Measurement Resolution | 0.1mV dc |
| Safety Category Level | CAT II, CAT III |
| Capacitance Measurement Resolution | 1pF |
| Best Capacitance Measurement Accuracy | ±5% +20 Digits |
| Minimum Operating Temperature | 0°C |
| Height | 165mm |
| Dimensions | 78 x 42.5 x 165mm |
| Best DC Voltage Accuracy | ±0.5% + 2 Digits |
| Best AC Voltage Accuracy | ±2% + 8 Digits |
| Maximum Operating Temperature | +50°C |
| Best AC Current Accuracy | ±3.5% + 10 Digits |
| Battery Type | 9V |
| Safety Category Voltage | 600 V, 750 V, 1000V |
| Width | 42.5mm |
| Best Resistance Measurement Accuracy | ±3.5% + 5 Digits |
| Best DC Current Accuracy | ±3% + 3 Digits |
| Length | 78mm |
| Weight | 285g |
