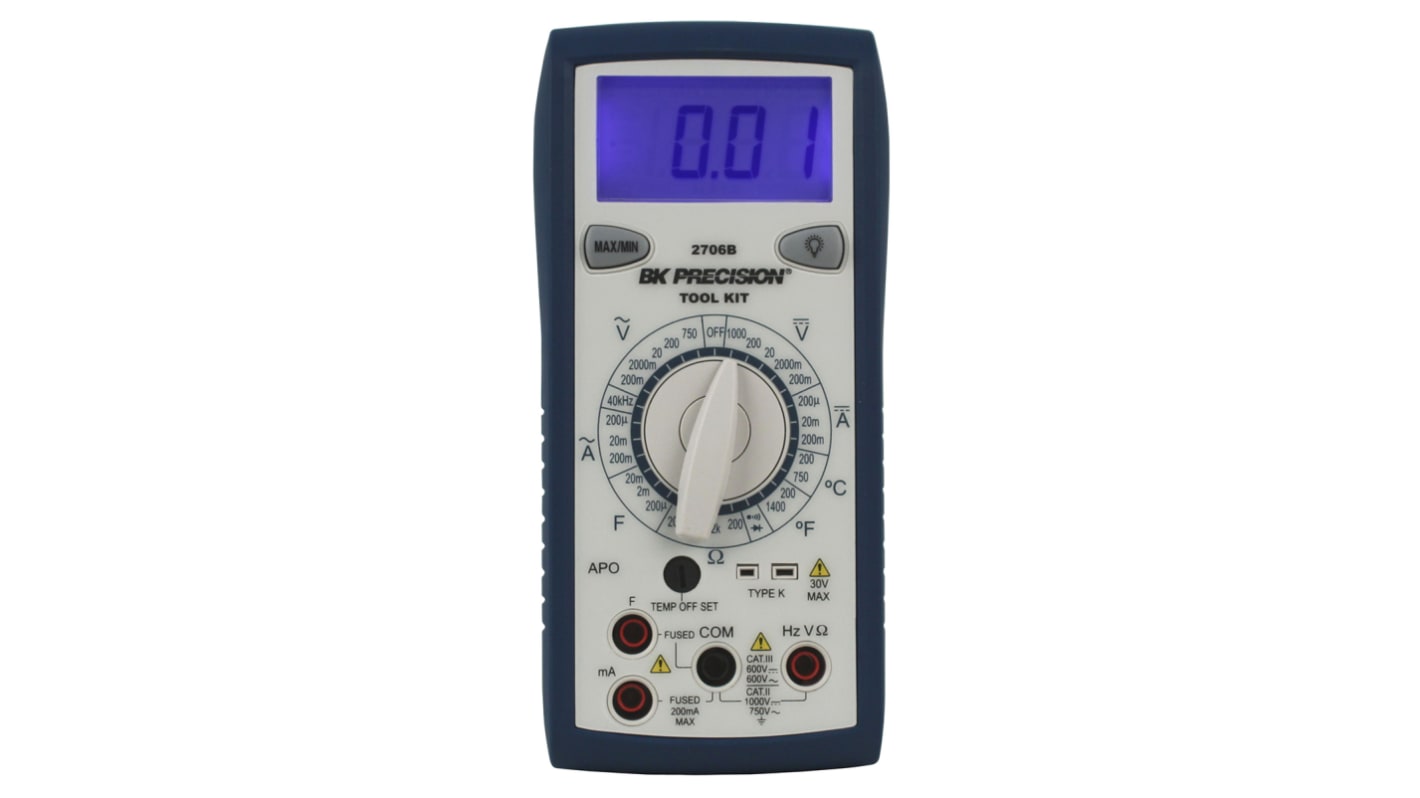

BK Precision BK2706B Handheld Digital Multimeter, 200mA ac Max, 200mA dc Max, 750V ac Max
- RS Stock No.:
- 192-4579
- Mfr. Part No.:
- BK2706B
- Brand:
- BK Precision
Subtotal (1 unit)*
£93.27
(exc. VAT)
£111.92
(inc. VAT)
FREE delivery for orders over £50.00
- 1 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £93.27 |
*price indicative
- RS Stock No.:
- 192-4579
- Mfr. Part No.:
- BK2706B
- Brand:
- BK Precision
Select all | Attribute | Value |
|---|---|---|
| Brand | BK Precision | |
| Multimeter Type | Handheld | |
| Display Type | Digital | |
| Model Number p | BK2706B | |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature | |
| Absolute Maximum DC Voltage Measurement | 1000V dc | |
| Absolute Maximum DC Current Measurement | 200mA dc | |
| Absolute Maximum AC Current Measurement | 200mA ac | |
| Absolute Maximum Resistance Measurement | 20MΩ | |
| Absolute Maximum AC Voltage Measurement | 750V ac | |
| Absolute Maximum Capacitance Measurement | 20mF | |
| Absolute Maximum Temperature Measurement | +1400 °F, +750°C | |
| True RMS | No | |
| Maximum Frequency | 500Hz | |
| AC Current Measurement Resolution | 0.1µA ac | |
| DC Current Measurement Resolution | 0.1µA dc | |
| DC Voltage Measurement Resolution | 0.1mV dc | |
| AC Voltage Measurement Resolution | 0.1mV ac | |
| Resistance Measurement Resolution | 100mΩ | |
| Safety Category Level | CAT II, CAT III | |
| Capacitance Measurement Resolution | 0.1µF | |
| Maximum Operating Temperature | +50°C | |
| Best Resistance Measurement Accuracy | ±2% + 4 Digits | |
| Safety Category Voltage | 600 V, 750 V, 1000V | |
| Best DC Voltage Accuracy | ±0.5% + 1 Digits | |
| Height | 165mm | |
| Weight | 285g | |
| Minimum Operating Temperature | 0°C | |
| Battery Type | 9V | |
| Best DC Current Accuracy | ±1% + 1 Digits | |
| Dimensions | 78 x 42.5 x 165mm | |
| Best Capacitance Measurement Accuracy | ±4% +10 Digits | |
| Length | 78mm | |
| Best AC Current Accuracy | ±1.5% + 5 Digits | |
| Width | 42.5mm | |
| Best AC Voltage Accuracy | ±2% + 5 Digits | |
Select all | ||
|---|---|---|
Brand BK Precision | ||
Multimeter Type Handheld | ||
Display Type Digital | ||
Model Number p BK2706B | ||
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature | ||
Absolute Maximum DC Voltage Measurement 1000V dc | ||
Absolute Maximum DC Current Measurement 200mA dc | ||
Absolute Maximum AC Current Measurement 200mA ac | ||
Absolute Maximum Resistance Measurement 20MΩ | ||
Absolute Maximum AC Voltage Measurement 750V ac | ||
Absolute Maximum Capacitance Measurement 20mF | ||
Absolute Maximum Temperature Measurement +1400 °F, +750°C | ||
True RMS No | ||
Maximum Frequency 500Hz | ||
AC Current Measurement Resolution 0.1µA ac | ||
DC Current Measurement Resolution 0.1µA dc | ||
DC Voltage Measurement Resolution 0.1mV dc | ||
AC Voltage Measurement Resolution 0.1mV ac | ||
Resistance Measurement Resolution 100mΩ | ||
Safety Category Level CAT II, CAT III | ||
Capacitance Measurement Resolution 0.1µF | ||
Maximum Operating Temperature +50°C | ||
Best Resistance Measurement Accuracy ±2% + 4 Digits | ||
Safety Category Voltage 600 V, 750 V, 1000V | ||
Best DC Voltage Accuracy ±0.5% + 1 Digits | ||
Height 165mm | ||
Weight 285g | ||
Minimum Operating Temperature 0°C | ||
Battery Type 9V | ||
Best DC Current Accuracy ±1% + 1 Digits | ||
Dimensions 78 x 42.5 x 165mm | ||
Best Capacitance Measurement Accuracy ±4% +10 Digits | ||
Length 78mm | ||
Best AC Current Accuracy ±1.5% + 5 Digits | ||
Width 42.5mm | ||
Best AC Voltage Accuracy ±2% + 5 Digits | ||
