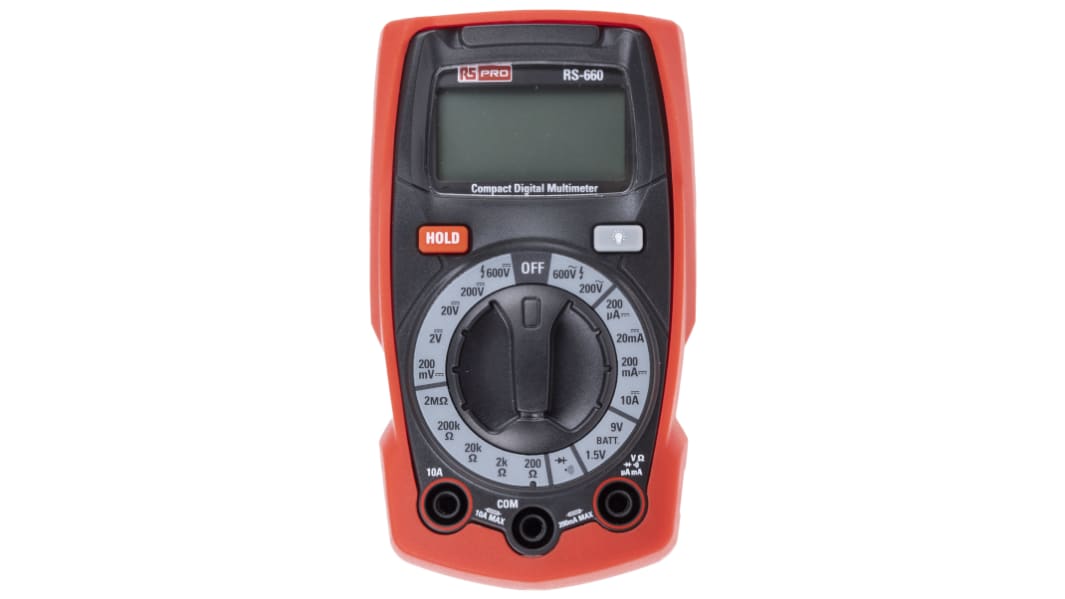

RS PRO RS-660 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 600V ac Max
- RS Stock No.:
- 161-1625
- Brand:
- RS PRO
View all Multimeters
815 In stock - FREE next working day delivery available
59 available from Europe for delivery within 1 working day(s).
Price Each
£23.14
(exc. VAT)
£27.77
(inc. VAT)
Units | Per unit |
1 + | £23.14 |
- RS Stock No.:
- 161-1625
- Brand:
- RS PRO
- COO (Country of Origin):
- CN
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS PRO Compact Digital Multimeter
This compact handheld digital multimeter from our own brand RS PRO features a variety of electronics measurement functions including AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance. The device features a user friendly interface with a clear and precise 2000 count LCD display screen, allowing you to view results with ease. The addition of a back light button ensures that the screen can be seen, even in poor lighting conditions. This handheld digital multimeter also features a data hold" button, allowing you to freeze a measurement and refer back to it at a later stage. The device is housed in a double molded enclosure, offering excellent protection and durability."
Features and benefits
User friendly interface
Compact design makes this multimeter ideal for working on the go
Clear and preice 2000 count LCD display screen
Safety category CAT III, CAT IV, 600 V, 1000 V
Ideal for measurement of AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
Test leads included
Double molded enclosure offering excellent durability and protection
Compact design makes this multimeter ideal for working on the go
Clear and preice 2000 count LCD display screen
Safety category CAT III, CAT IV, 600 V, 1000 V
Ideal for measurement of AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
Test leads included
Double molded enclosure offering excellent durability and protection
Applications
Digital Multimeters are a type of measurement device used to test and measure a range of electrical properties such as voltage (volts), current (amps) and resistance (ohms). Using a digital output readout, the digital multimeter is connected to a device and measures typically the voltage and any resistances, giving you an output you can measure. Digital multimeters offer a wide range of AC and DC measurement capabilities to suit a variety of applications. Multimeters are essential tester tools for carrying out electrical work from home renovations to large scale installations.
FAQs
Does this include a continuity check?
Yes, this device features a continuity check feature.
Does it feature an audible signal?
Yes, an audible signal will sound if the resistance is less than approximately 100Ω.
Specifications
Attribute | Value |
Multimeter Type | Handheld |
True RMS | Yes |
Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance |
Absolute Maximum DC Voltage Measurement | 600V dc |
Absolute Maximum AC Voltage Measurement | 600V ac |
Absolute Maximum AC Current Measurement | 10A ac |
Absolute Maximum Resistance Measurement | 2MΩ |
Absolute Maximum DC Current Measurement | 10A dc |
Display Type | Digital |
Model Number p | RS-660 |
Safety Category Level | CAT III |
Best DC Voltage Accuracy | ±0.5 % |
Safety Category Voltage | 600V |
Best AC Voltage Accuracy | ±1 % |
Height | 120mm |
Weight | 200g |
Best DC Current Accuracy | ±1.5 % |
Best AC Current Accuracy | ±2 % |
Best Resistance Measurement Accuracy | ±1 % |
Battery Type | 1.5 V AAA |
Dimensions | 67 x 46 x 120mm |
Width | 46mm |
Length | 67mm |
