RS PRO RS14 Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max - RS Calibrated
- RS Stock No.:
- 123-1997
- Brand:
- RS PRO
Subtotal (1 unit)*
£78.36
(exc. VAT)
£94.03
(inc. VAT)
FREE delivery for orders over £50.00
- 1,386 unit(s) shipping from 27 November 2025
- Plus 754 unit(s) shipping from 15 December 2025
- Plus 876 unit(s) shipping from 07 January 2026
Units | Per unit |
|---|---|
| 1 + | £78.36 |
*price indicative
- RS Stock No.:
- 123-1997
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Multimeter Type | Handheld | |
| Model Number p | RS14 | |
| Display Type | Digital | |
| Calibrated | RSCAL | |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature | |
| Absolute Maximum Resistance Measurement | 20MΩ | |
| Absolute Maximum AC Voltage Measurement | 600V ac | |
| Absolute Maximum AC Current Measurement | 10A ac | |
| Absolute Maximum DC Current Measurement | 10A dc | |
| Absolute Maximum DC Voltage Measurement | 600V dc | |
| True RMS | No | |
| Absolute Maximum Temperature Measurement | +1000 °C, +1832°F | |
| Maximum Frequency | 60Hz | |
| AC Current Measurement Resolution | 0.1µA ac | |
| DC Current Measurement Resolution | 0.1µA dc | |
| AC Voltage Measurement Resolution | 0.1mV ac | |
| DC Voltage Measurement Resolution | 0.1mV dc | |
| Resistance Measurement Resolution | 100mΩ | |
| Safety Category Level | CAT III | |
| Temperature Measurement Resolution | 1 °F, 1°C | |
| Maximum Operating Temperature | +50°C | |
| Best Resistance Measurement Accuracy | ±1% ± 2 Digits | |
| Safety Category Voltage | 600 V, 1000V | |
| Weight | 255g | |
| Minimum Operating Temperature | 0°C | |
| Height | 150mm | |
| Battery Type | 9V, IEC 6F22, NEDA 1604 | |
| Best DC Current Accuracy | ±1% ± 3 Digits | |
| Best AC Voltage Accuracy | ±1.2% ± 3 Digits | |
| Length | 70mm | |
| Best AC Current Accuracy | ±1.5% ± 5 Digits | |
| Width | 48mm | |
| Best DC Voltage Accuracy | ±0.5% ± 2 Digits | |
| Best Temperature Measurement Accuracy | ±3% + 8 Digits, ±3% ± 5 Digits | |
| Dimensions | 70 x 48 x 150mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Multimeter Type Handheld | ||
Model Number p RS14 | ||
Display Type Digital | ||
Calibrated RSCAL | ||
Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature | ||
Absolute Maximum Resistance Measurement 20MΩ | ||
Absolute Maximum AC Voltage Measurement 600V ac | ||
Absolute Maximum AC Current Measurement 10A ac | ||
Absolute Maximum DC Current Measurement 10A dc | ||
Absolute Maximum DC Voltage Measurement 600V dc | ||
True RMS No | ||
Absolute Maximum Temperature Measurement +1000 °C, +1832°F | ||
Maximum Frequency 60Hz | ||
AC Current Measurement Resolution 0.1µA ac | ||
DC Current Measurement Resolution 0.1µA dc | ||
AC Voltage Measurement Resolution 0.1mV ac | ||
DC Voltage Measurement Resolution 0.1mV dc | ||
Resistance Measurement Resolution 100mΩ | ||
Safety Category Level CAT III | ||
Temperature Measurement Resolution 1 °F, 1°C | ||
Maximum Operating Temperature +50°C | ||
Best Resistance Measurement Accuracy ±1% ± 2 Digits | ||
Safety Category Voltage 600 V, 1000V | ||
Weight 255g | ||
Minimum Operating Temperature 0°C | ||
Height 150mm | ||
Battery Type 9V, IEC 6F22, NEDA 1604 | ||
Best DC Current Accuracy ±1% ± 3 Digits | ||
Best AC Voltage Accuracy ±1.2% ± 3 Digits | ||
Length 70mm | ||
Best AC Current Accuracy ±1.5% ± 5 Digits | ||
Width 48mm | ||
Best DC Voltage Accuracy ±0.5% ± 2 Digits | ||
Best Temperature Measurement Accuracy ±3% + 8 Digits, ±3% ± 5 Digits | ||
Dimensions 70 x 48 x 150mm | ||
- COO (Country of Origin):
- CN

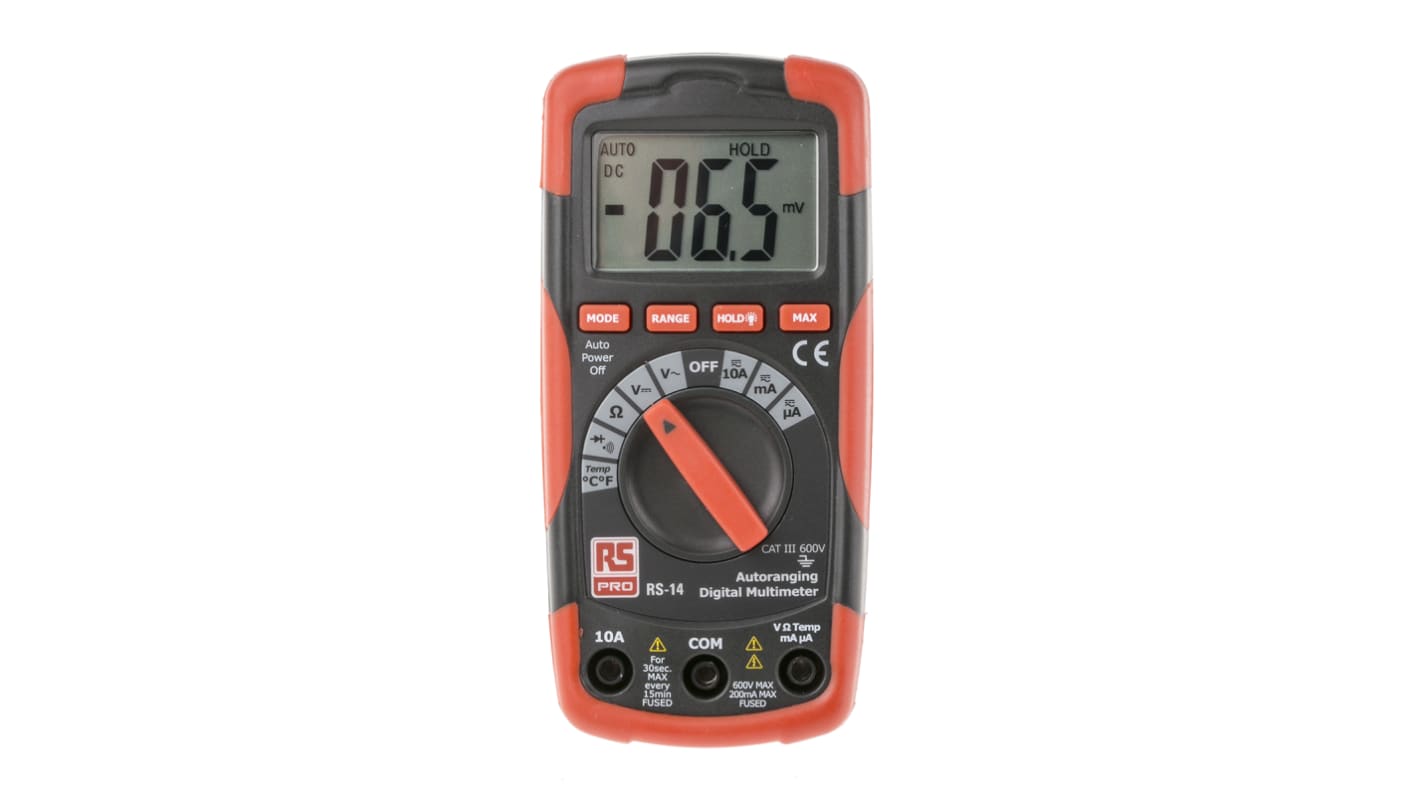

RS PRO RS14 Digital Multimeter
This battery-powered device is great for continuity and portability. A robust, double-moulded, plastic housing provides ultimate protection from harsh environments. Included with the multimeter itself are integral test leads, 9V battery, type K temperature probe and a user manual. The R14 is RS Approved, meaning not only is it great value for money, but you can rely on its quality.
Features and Benefits:
• Digital 2000 count LCD display
• 3-year warranty
• 104 x 70 x 48mm dimension
• Continuity tester
• Functions measured: AC and DC Current, AC and DC Voltage, Resistance, Temperature Measurement
• Diode test
• Auto power off
• Battery Type 1 x 9V
• Low battery indication
A digital multimeter is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries
Safety guidelines
When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.
The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually a LED or LCD screen) whereas the analogue version has a needle to show the value.
Why RS PRO?
Standards
Supplied with
