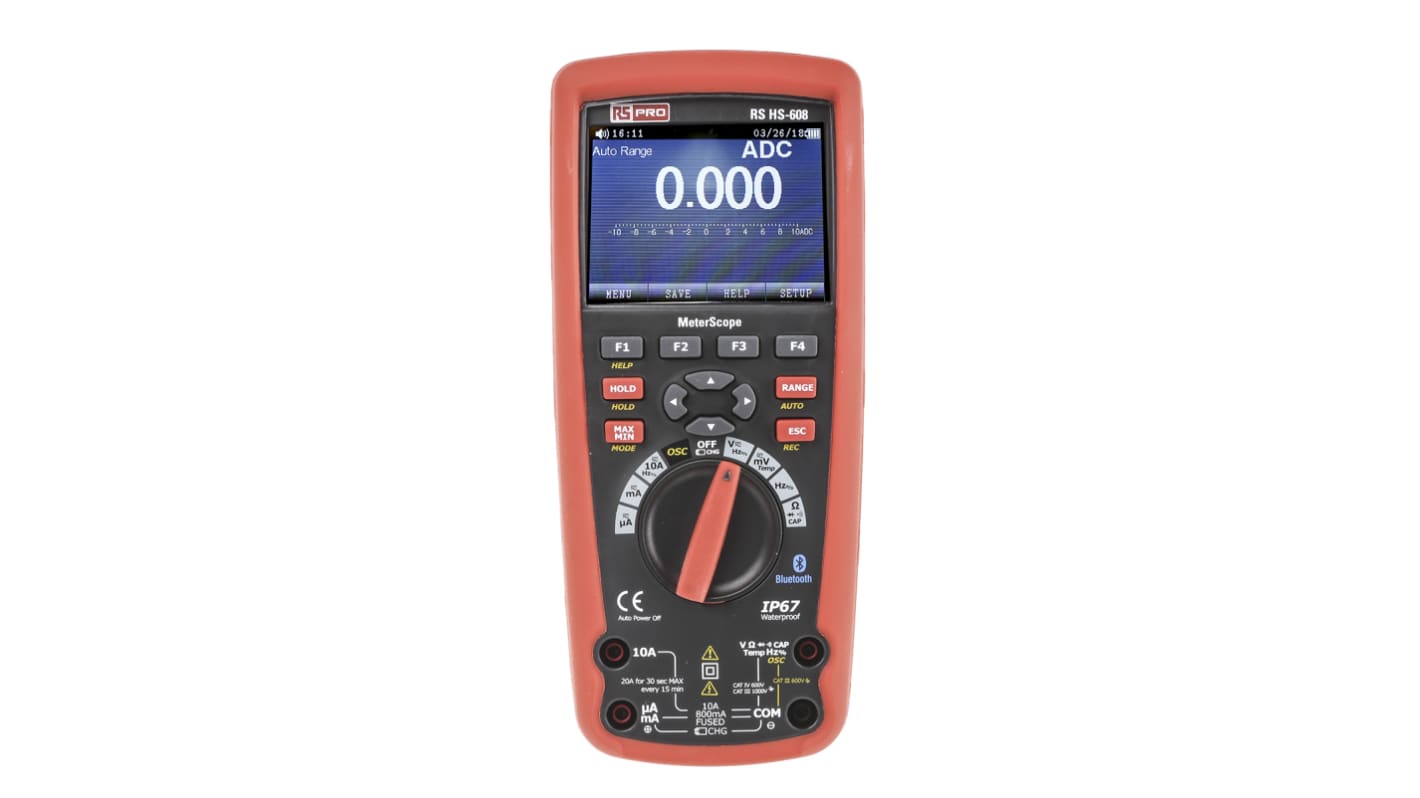

RS PRO HS608 MeterScope Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - UKAS Calibrated

View all Multimeters

Subtotal (1 unit)*

£599.45

(exc. VAT)

£719.34

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 21 unit(s) shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£599.45

*price indicative

RS Stock No.:
144-5349
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Multimeter Type

Handheld

Display Type

Digital

Model Number p

HS608 MeterScope

Functions Measured

AC Current, AC Voltage, Capacitance, Conductance, DC Current, DC Voltage, Diode, Frequency, Resistance, RMS, Temperature

Calibrated

UKAS

Absolute Maximum DC Voltage Measurement

1000V dc

Absolute Maximum AC Voltage Measurement

1000V ac

Absolute Maximum Resistance Measurement

50MΩ

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum AC Current Measurement

10A ac

True RMS

Yes

Temperature Measurement Resolution

0.1°C

Safety Category Level

CAT III, CAT IV

Safety Category Voltage

600 V, 1000V

Best DC Voltage Accuracy

±0.025% + 5 Digits

COO (Country of Origin):
CN

RS Pro Digital MeterScope, Bluetooth and Wifi Enabled


High performance Digital MeterScope with double molded housing and IP67 functions. Bluetooth PC interface for easy data transfer and accuracy calibration. Professional True RMS industrial digital MeterScope with oscilloscope functions and TFT colour LCD display. The MeterScope gives you fast A/D converting sampling time, high accuracy, built-in datalogging and Trend Capture features. Meterbox Pro software & cloud server support to transfer the measured data to your smartphone for edit and storage. 1000V input protection on all ranges 10A/1000V & 0.8A/1000V fuses protection on current ranges.

Features and Benefits:


Large 50,000 count 320 x 240 TFT colour LCD display

20MHz/50MS/s bandwidth/Real time sample rate

Logging function with Trend Capture for easy review of logged data

100kHz bandwidth (voltage/current)

AC, AC+DC true-RMS measurements

0.025% DCV accuracy with Fully PC Calibration

Saves measurements, records events and trends

20 Times/sec. A/D convert fast sampling time

Peak capture (records transients as fast as 250μs)

Min/Max/Average with Time stamp (records signal fluctuations)

Moto winding and low ohm (50Ω) measurement range

Low pass filter

IP Rating 67 & CATIII 1000V/CATIV 600V

Bluetooth interface to smartphone / PC

Meterbox Pro & cloud service

Additional Benefits:


Compact easy to carry - handheld

Casing is double moulded and waterproof

Drop tested to 2 metres / 6.5 feet

Display 50000 Count backlit liquid crystal with bar graph

Auto power off 5 to 30 minutes with disable feature

Low battery indication displayed if battery voltage drops below the operating voltage

Li-ion battery 7.4 V (charge up to 8.4 V) 2400 mAh

Oscilliscope Section:


Clear and stable waveform display

Waveform record

Auto search

Real-time sample rate 500 Sps – 50 Msa/s

Trigger function

10 set waveform storage/output

Waveform sent by bluetooth or wireless USB interface

Display menu mode

Cursor test

What Is Included?


English online help system

Product warranty card

Certificate of quality

1 set of 1:1 probe

1 adapter

Supplied with mains plug and adaptors for use in UK and Europe

CD (PC software)

Standards

IP Rating 67, EN61010-1 CAT IV 600 V, CAT III 1000 V
