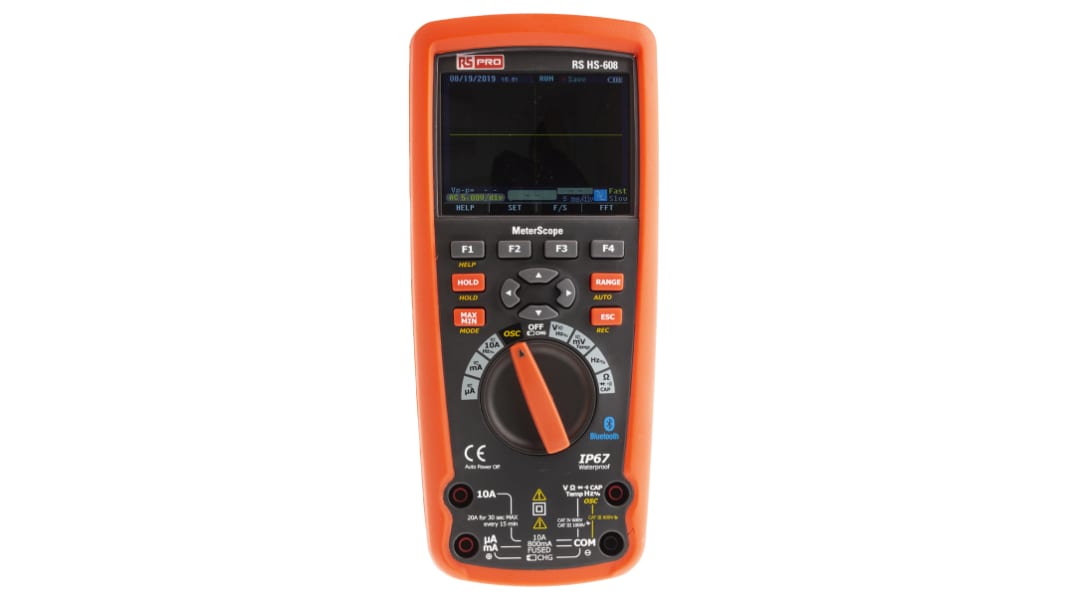

RS PRO HS608 MeterScope Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max

RS Stock No.:: 144-5337
Distrelec Article No.:: 303-94-880
Brand:: RS PRO

RS PRO HS608 MeterScope Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max

Subtotal (1 unit)*

£462.95

(exc. VAT)

£555.54

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

32 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£462.95

*price indicative

Calibration Options:

RS PRO HS608 MeterScope Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated

Calibration Type:: RSCAL

RS Stock No.: 144-5348

Each

£566.45

(exc. VAT)

£679.74

(inc. VAT)

RS PRO HS608 MeterScope Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - UKAS Calibrated

Calibration Type:: UKAS

RS Stock No.: 144-5349

Each

£599.45

(exc. VAT)

£719.34

(inc. VAT)

RS Stock No.:: 144-5337
Distrelec Article No.:: 303-94-880
Brand:: RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Multimeter Type	Handheld
	Display Type	Digital
	Model Number p	HS608 MeterScope
	Functions Measured	AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
	Absolute Maximum DC Voltage Measurement	1000V dc
	Absolute Maximum DC Current Measurement	10A dc
	Absolute Maximum Resistance Measurement	50MΩ
	Absolute Maximum AC Current Measurement	10A ac
	Absolute Maximum AC Voltage Measurement	1000V ac
	Absolute Maximum Capacitance Measurement	10mF
	Absolute Maximum Temperature Measurement	+1000 °C, +1832°F
	True RMS	Yes
	Maximum Frequency	10MHz
	DC Current Measurement Resolution	0.01µA dc
	AC Current Measurement Resolution	0.01µA ac
	AC Voltage Measurement Resolution	0.001mV ac
	Resistance Measurement Resolution	1mΩ
	DC Voltage Measurement Resolution	0.0001mV dc
	Safety Category Level	CAT III, CAT IV
	Temperature Measurement Resolution	0.1°C
	Capacitance Measurement Resolution	0.001nF
	Safety Category Voltage	600 V, 1000V
	Battery Type	Li-Ion
	Minimum Operating Temperature	+5°C
	Best Resistance Measurement Accuracy	0.05 %
	Maximum Operating Temperature	+40°C
	Weight	631g
	Best DC Current Accuracy	0.1 %
	Best DC Voltage Accuracy	0.025 %
	Best Temperature Measurement Accuracy	±1 %
	Best Capacitance Measurement Accuracy	±2 %
	Best AC Voltage Accuracy	0.5 %
	Best AC Current Accuracy	0.6 %

	Select all
	Brand RS PRO
	Multimeter Type Handheld
	Display Type Digital
	Model Number p HS608 MeterScope
	Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
	Absolute Maximum DC Voltage Measurement 1000V dc
	Absolute Maximum DC Current Measurement 10A dc
	Absolute Maximum Resistance Measurement 50MΩ
	Absolute Maximum AC Current Measurement 10A ac
	Absolute Maximum AC Voltage Measurement 1000V ac
	Absolute Maximum Capacitance Measurement 10mF
	Absolute Maximum Temperature Measurement +1000 °C, +1832°F
	True RMS Yes
	Maximum Frequency 10MHz
	DC Current Measurement Resolution 0.01µA dc
	AC Current Measurement Resolution 0.01µA ac
	AC Voltage Measurement Resolution 0.001mV ac
	Resistance Measurement Resolution 1mΩ
	DC Voltage Measurement Resolution 0.0001mV dc
	Safety Category Level CAT III, CAT IV
	Temperature Measurement Resolution 0.1°C
	Capacitance Measurement Resolution 0.001nF
	Safety Category Voltage 600 V, 1000V
	Battery Type Li-Ion
	Minimum Operating Temperature +5°C
	Best Resistance Measurement Accuracy 0.05 %
	Maximum Operating Temperature +40°C
	Weight 631g
	Best DC Current Accuracy 0.1 %
	Best DC Voltage Accuracy 0.025 %
	Best Temperature Measurement Accuracy ±1 %
	Best Capacitance Measurement Accuracy ±2 %
	Best AC Voltage Accuracy 0.5 %
	Best AC Current Accuracy 0.6 %

RS Pro Digital MeterScope, Bluetooth and Wifi Enabled

High performance Digital MeterScope with double molded housing and IP67 functions. Bluetooth PC interface for easy data transfer and accuracy calibration. Professional True RMS industrial digital MeterScope with oscilloscope functions and TFT colour LCD display. The MeterScope gives you fast A/D converting sampling time, high accuracy, built-in datalogging and Trend Capture features. Meterbox Pro software & cloud server support to transfer the measured data to your smartphone for edit and storage. 1000V input protection on all ranges 10A/1000V & 0.8A/1000V fuses protection on current ranges.

Features and Benefits:

Large 50,000 count 320 x 240 TFT colour LCD display

20MHz/50MS/s bandwidth/Real time sample rate

Logging function with Trend Capture for easy review of logged data

100kHz bandwidth (voltage/current)

AC, AC+DC true-RMS measurements

0.025% DCV accuracy with Fully PC Calibration

Saves measurements, records events and trends

20 Times/sec. A/D convert fast sampling time

Peak capture (records transients as fast as 250μs)

Min/Max/Average with Time stamp (records signal fluctuations)

Moto winding and low ohm (50Ω) measurement range

Low pass filter

IP Rating 67 & CATIII 1000V/CATIV 600V

Bluetooth interface to smartphone / PC

Meterbox Pro & cloud service

Additional Benefits:

Compact easy to carry - handheld

Casing is double moulded and waterproof

Drop tested to 2 metres / 6.5 feet

Display 50000 Count backlit liquid crystal with bar graph

Auto power off 5 to 30 minutes with disable feature

Low battery indication displayed if battery voltage drops below the operating voltage

Li-ion battery 7.4 V (charge up to 8.4 V) 2400 mAh

Oscilliscope Section:

Clear and stable waveform display

Waveform record

Auto search

Real-time sample rate 500 Sps – 50 Msa/s

Trigger function

10 set waveform storage/output

Waveform sent by bluetooth or wireless USB interface

Display menu mode

Cursor test

What Is Included?

English online help system

Product warranty card

Certificate of quality

1 set of 1:1 probe

1 adapter

Supplied with mains plug and adaptors for use in UK and Europe

CD (PC software)

Standards

IP Rating 67, EN61010-1 CAT IV 600 V, CAT III 1000 V
