RS PRO IDM17 Handheld Digital Multimeter, 100A ac Max, 600V ac Max - UKAS Calibrated

RS Stock No.:: 123-3269
Brand:: RS PRO

RS PRO IDM17 Handheld Digital Multimeter, 100A ac Max, 600V ac Max - UKAS Calibrated

Subtotal (1 unit)*

£165.24

(exc. VAT)

£198.29

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

152 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£165.24

*price indicative

RS Stock No.:: 123-3269
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Multimeter Type	Handheld
	Display Type	Digital
	Model Number p	IDM17
	Functions Measured	AC Current
	Calibrated	UKAS
	Absolute Maximum AC Current Measurement	100A ac
	Absolute Maximum Resistance Measurement	30MΩ
	Absolute Maximum AC Voltage Measurement	600V ac
	Absolute Maximum DC Voltage Measurement	600V dc
	True RMS	No
	AC Current Measurement Resolution	0.001mA ac
	AC Voltage Measurement Resolution	1mV ac
	Safety Category Level	CAT III
	Height	203mm
	Length	78mm
	Weight	300g
	Minimum Operating Temperature	0°C
	Best AC Current Accuracy	±1% + 3 Digits
	Width	42mm
	Safety Category Voltage	300V
	Battery Type	AAA 1.5 V (IEC LR03)
	Maximum Operating Temperature	+50°C
	Best DC Voltage Accuracy	±0.7 %
	Dimensions	78 x 42 x 203mm

	Select all
	Brand RS PRO
	Multimeter Type Handheld
	Display Type Digital
	Model Number p IDM17
	Functions Measured AC Current
	Calibrated UKAS
	Absolute Maximum AC Current Measurement 100A ac
	Absolute Maximum Resistance Measurement 30MΩ
	Absolute Maximum AC Voltage Measurement 600V ac
	Absolute Maximum DC Voltage Measurement 600V dc
	True RMS No
	AC Current Measurement Resolution 0.001mA ac
	AC Voltage Measurement Resolution 1mV ac
	Safety Category Level CAT III
	Height 203mm
	Length 78mm
	Weight 300g
	Minimum Operating Temperature 0°C
	Best AC Current Accuracy ±1% + 3 Digits
	Width 42mm
	Safety Category Voltage 300V
	Battery Type AAA 1.5 V (IEC LR03)
	Maximum Operating Temperature +50°C
	Best DC Voltage Accuracy ±0.7 %
	Dimensions 78 x 42 x 203mm

Manufacturer Information

COO (Country of Origin):: TW

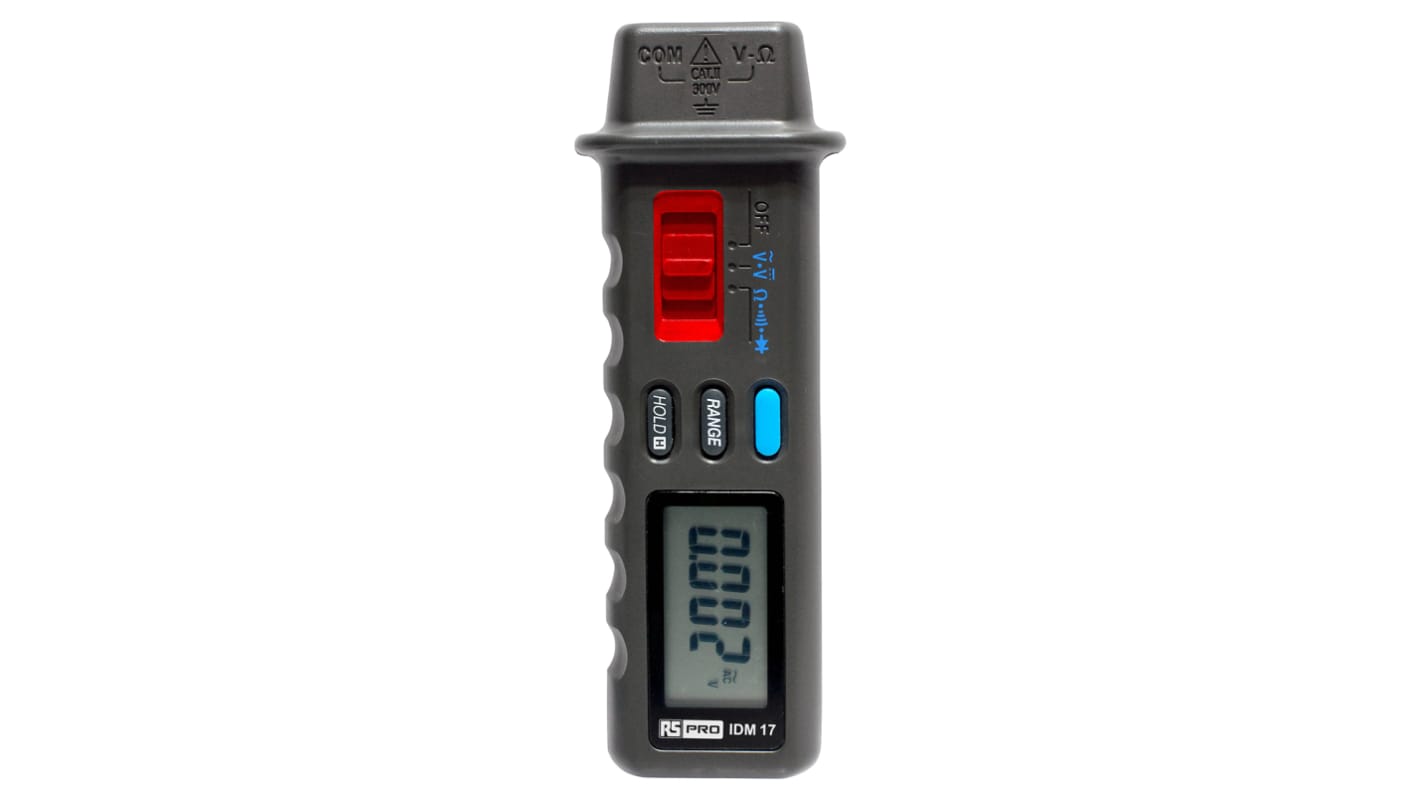

RS PRO IDM17 Probe Style Digital Multimeter

RS PRO IDM17 probe style multimeter offers a clear 3200 Count LCD display, 65 segment bar graph and annunciators. These devices can measure resistance, voltage, and electrical current with diode and continuity check. This small handheld meter is truly portable, rugged in construction, lightweight and very easy to use.

This multimeter is ideal for a wide range of sectors i.e. Mechanical Industries, Test and Measurement and Automotive applications.
RS PRO range of handheld and bench digital multimeters are RS approved meaning that they are great value for money and high quality you can rely on.

Features and Benefits

• Autoranging and manual selection
• Mains proof Ω/continuity ranges
• 600 V protection in every range
• Fast continuity beeper
• Data hold function
• Diode test
• Continuity tester
• Auto power off
• Standard "AAA" size batteries (supplied fitted)
• Long battery life
• Standard " pitch input jacks
• Rugged construction with high impact thermoplastic case
• Designed to meet IEC 1010-1 (safety standard)
• Installation category III 300 V
• Installation category II 600 V

What do you get?

• Digital multimeter
• Test lead (one black)
• Test probe (Red)
• Operations manual
• Carrying case

Why would you buy this product?

In addition to an exceptional technical specification, this unique pen style multimeter offers a level of safety normally only found on larger hand held multimeters.

Important information

This instrument has been designed in accordance with UL 3111-1 and IEC publication 1010 Pt1, Class II, Safety Requirements for Electrical Equipment for measurement, control and laboratory use. This level of safety can only be guaranteed while the appropriate limits are observed.

Typical Application

A digital multimeter is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:
Electrical and electronic industries

Safety guidelines
When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.
