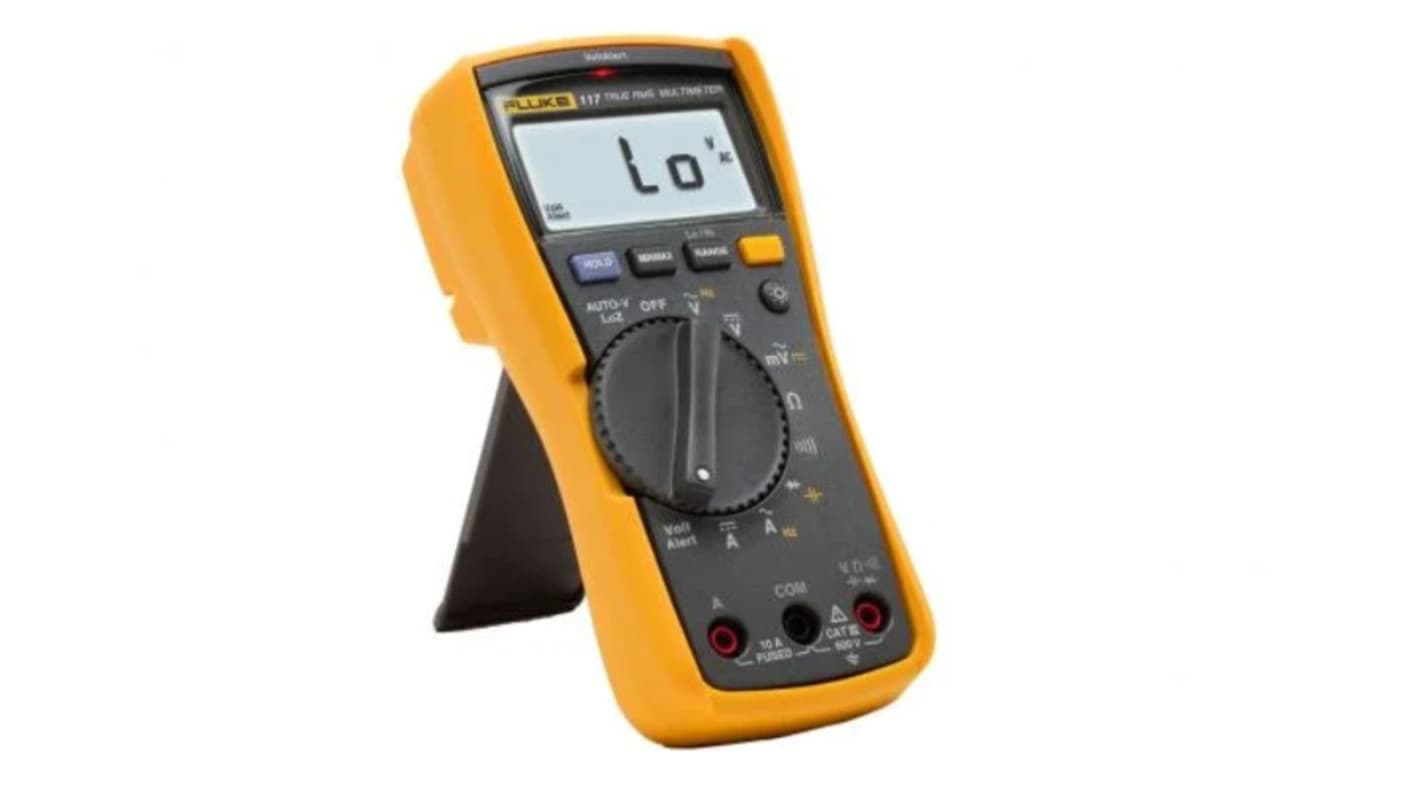

Fluke Fluke 117 117 Handheld Digital Multimeter True RMS, 10 A ac, 10 A dc, 600 V ac

RS Stock No.:: 205-092
Mfr. Part No.:: FLK-117/C11XT/TPAK
Brand:: Fluke

Fluke Fluke 117 117 Handheld Digital Multimeter True RMS, 10 A ac, 10 A dc, 600 V ac

Subtotal (1 unit)*

£339.00

(exc. VAT)

£406.80

(inc. VAT)

FREE delivery for orders over £60.00

Last RS stock

Final 1 unit(s), ready to ship

Units	Per unit
1 +	£339.00

*price indicative

RS Stock No.:: 205-092
Mfr. Part No.:: FLK-117/C11XT/TPAK
Brand:: Fluke

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Digital Multimeter
	Multimeter Type	Handheld
	Model Number	Fluke 117
	Display Type	LCD
	Resistance Resolution	0.01mΩ
	Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Low Impedance Voltage, Resistance
	Maximum DC Voltage Measurement	600V dc
	Maximum AC Voltage Measurement	600V ac
	Maximum DC Current Measurement	10A dc
	Maximum AC Current Measurement	10A ac
	Maximum Resistance Measurement	40mΩ
	True RMS	Yes
	DC Voltage Accuracy	±0.5 % rdg + 2 Digits
	AC Voltage Accuracy	±2 % rdg + 3 Digits
	DC Current Accuracy	±1 % rdg + 3 Digits
	DC Current Resolution	0.01A ac
	AC Voltage Resolution	0.1V ac
	DC Voltage Resolution	0.1 V dc
	Maximum Frequency	50kHz
	Power Source	Battery
	Minimum Operating Temperature	-10°C
	Battery Life	400h
	Maximum Operating Temperature	50°C
	Standards/Approvals	IEC 610102033, IEC 613261, IEC 610101
	Series	117
	Safety Category Level	CAT III
	Other Measurement Resolution	0.01mΩ
	Battery Type	Alkaline
	Safety Category Voltage	600V ac

	Select all
	Brand Fluke
	Product Type Digital Multimeter
	Multimeter Type Handheld
	Model Number Fluke 117
	Display Type LCD
	Resistance Resolution 0.01mΩ
	Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Low Impedance Voltage, Resistance
	Maximum DC Voltage Measurement 600V dc
	Maximum AC Voltage Measurement 600V ac
	Maximum DC Current Measurement 10A dc
	Maximum AC Current Measurement 10A ac
	Maximum Resistance Measurement 40mΩ
	True RMS Yes
	DC Voltage Accuracy ±0.5 % rdg + 2 Digits
	AC Voltage Accuracy ±2 % rdg + 3 Digits
	DC Current Accuracy ±1 % rdg + 3 Digits
	DC Current Resolution 0.01A ac
	AC Voltage Resolution 0.1V ac
	DC Voltage Resolution 0.1 V dc
	Maximum Frequency 50kHz
	Power Source Battery
	Minimum Operating Temperature -10°C
	Battery Life 400h
	Maximum Operating Temperature 50°C
	Standards/Approvals IEC 610102033, IEC 613261, IEC 610101
	Series 117
	Safety Category Level CAT III
	Other Measurement Resolution 0.01mΩ
	Battery Type Alkaline
	Safety Category Voltage 600V ac

Datasheet - FLK-117/C11XT/TPAK

COO (Country of Origin):: CN

Fluke 117 Series Digital Multimeter, 600V Maximum DC Voltage Measurement, 10A Maximum AC Current Measurement - FLK-117/C11XT/TPAK

This digital multimeter is a handheld instrument designed for electrical measurement and fault diagnosis across commercial and light-industrial settings. It operates from battery power and provides accurate readings for AC and DC voltages and currents, resistance, frequency, capacitance and basic diode/continuity checks. The instrument is intended for use within typical site temperature ranges and meets recognised safety voltage categories for work on low-voltage installations.

Features and Benefits:

• True RMS measurement improves accuracy on non-sinusoidal waveforms
• AC voltage range up to 600V supports distribution-level testing
• DC voltage accuracy ±0.5% rdg + 2 digits for precise readings
• AC current capability up to 10A for load and fault checking
• Low-impedance voltage mode detects ghost voltages effectively
• Battery life approximately 400h reduces downtime between replacements

Applications

• Suitable for electricians testing building wiring and supplies
• Ideal for maintenance engineers measuring motor currents
• Used with control panels for frequency and capacitance checks
• Can be used for troubleshooting DC systems and batteries
• Appropriate for on-site resistance and continuity verification

What environmental conditions can it operate within?

It functions between -10 °C and 50 °C, allowing use in most indoor and sheltered outdoor job sites.

How does the device handle high-frequency signals?

It measures frequencies up to 50 kHz, enabling checks on variable-frequency drives and other fast-switching equipment.

What safety classification applies for live-work tasks?

The instrument is rated to CAT III at 600V, suitable for distribution-level installations and fixed equipment.

What display and measurement resolution are provided?

Readings are shown on an LCD with DC voltage resolution of 0.1V and resistance resolution to 0.01 mΩ.

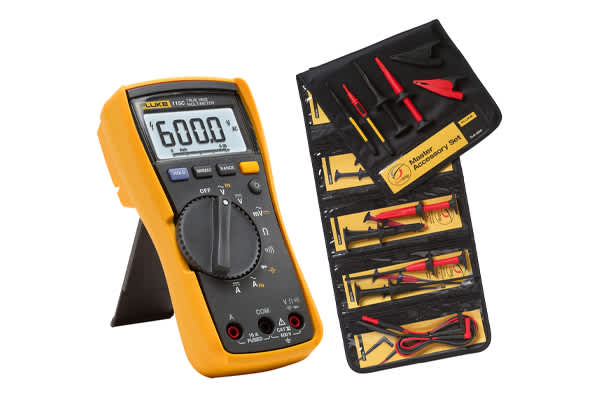

Don’t stop at the meter - Go further with a Fluke kit
