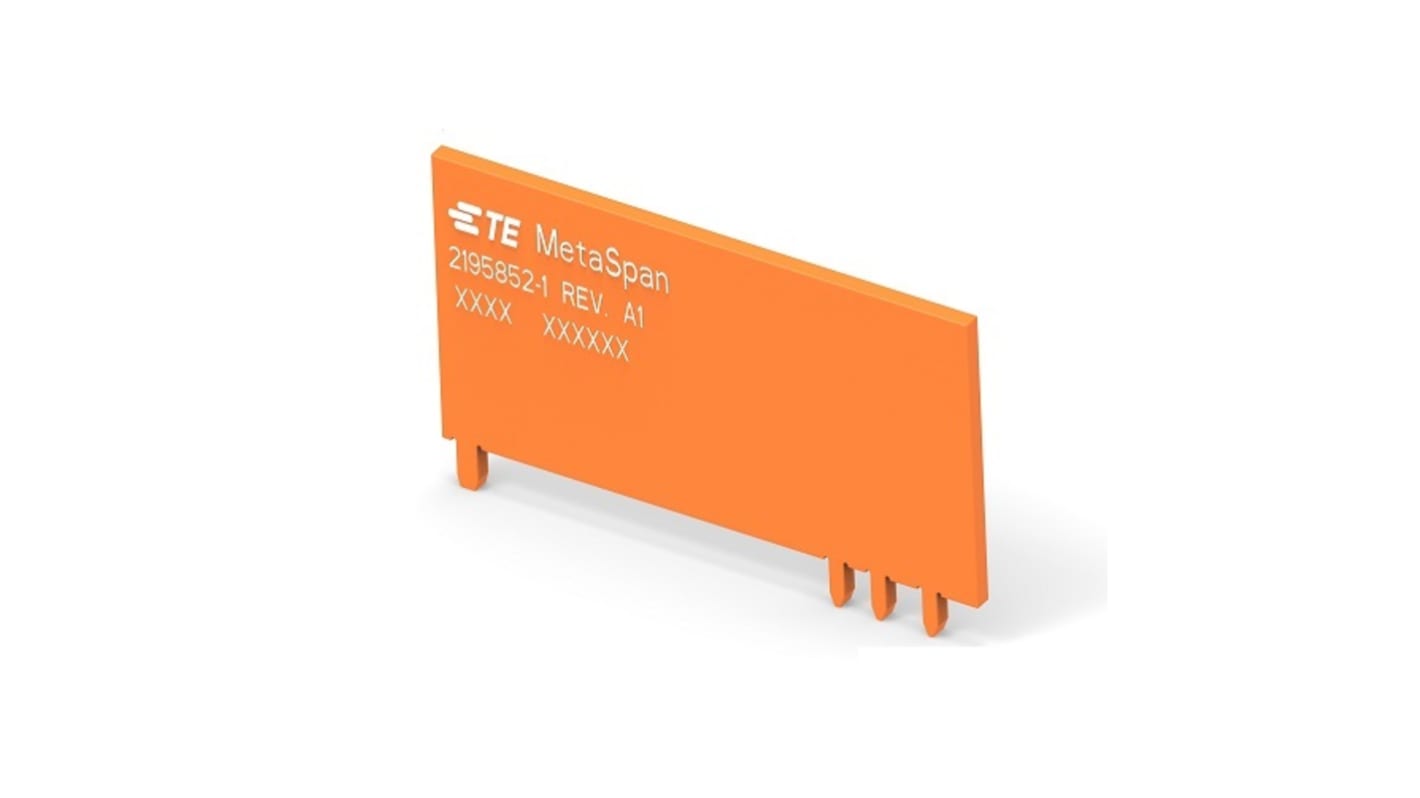

TE Connectivity 2195852-1 PCB Multiband Antenna, 3G (UTMS), 4G (LTE), 5G, NB-IoT
- RS Stock No.:
- 237-8088
- Mfr. Part No.:
- 2195852-1
- Brand:
- TE Connectivity
View all Multi-Band Antennas
4800 In stock - FREE next working day delivery available
Price Each (In a Box of 200)
£1.147
(exc. VAT)
£1.376
(inc. VAT)
| Units | Per unit | Per Box* |
| 200 - 200 | £1.147 | £229.40 |
| 400 - 800 | £1.032 | £206.40 |
| 1000 - 1800 | £0.929 | £185.80 |
| 2000 + | £0.859 | £171.80 |
| *price indicative | ||
- RS Stock No.:
- 237-8088
- Mfr. Part No.:
- 2195852-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The TE Connectivity 2195852-1 is an METASPAN 5G/4G/3G/2G, NB-IoT, Cat-M, GNSS, Wi-Fi 6 world band combination antenna, it has 698MHz to 7125MHz frequency range, 50Ω impedance rating. These antennas offer Tab mount PCB antenna. These Antennas performance with 110mm ground plane length.
Omnidirectional coverage
Tab mount PCB antenna
Uses MetaSpan technology for World band coverage for 3G, 4G, 5G, NB-IoT and Cat-M
Best performance with 110mm ground plane length
Wi-Fi 6 dual band and GNSS L1 included
Tab mount PCB antenna
Uses MetaSpan technology for World band coverage for 3G, 4G, 5G, NB-IoT and Cat-M
Best performance with 110mm ground plane length
Wi-Fi 6 dual band and GNSS L1 included
Specifications
Attribute | Value |
|---|---|
| RF Protocols | 3G (UTMS), 4G (LTE), 5G, NB-IoT |
| Internal/External | Internal |
| Frequency Range | 0.698 → 0.960 GHz, 1.42 → 1.630 GHz, 1.710 → 2.7 GHz, 3.2 → 3.8 GHz, 4.4 → 5.0 GHz, 5.15 → 5.875 GHz, 5.925 → 7.125 GHz |
| Physical Form | PCB |
| Antenna Physical Form | PCB |
| Antenna Mounting Type | PCB |
| Gain | 4.5dBi |
| Antenna Directivity | Omnidirectional |
