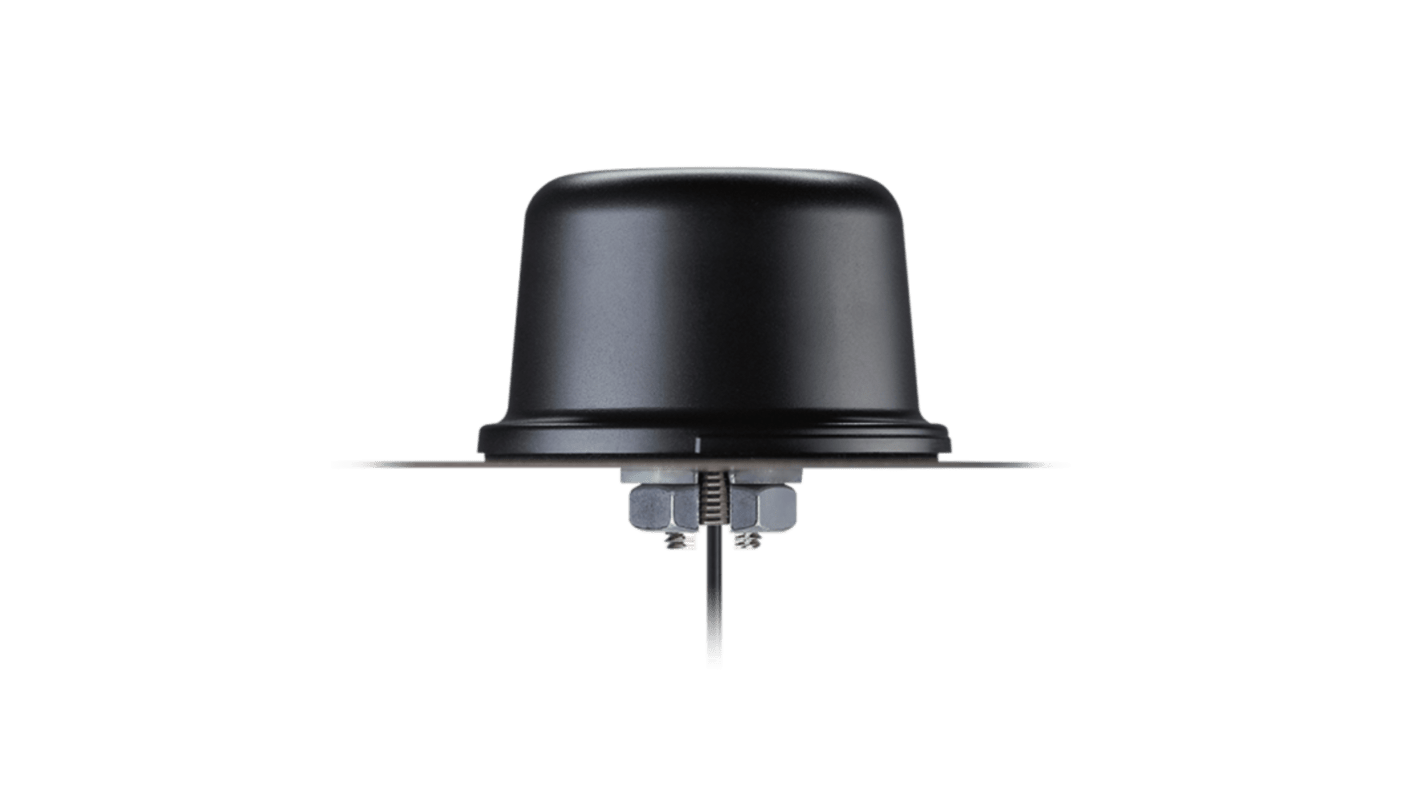

Taoglas XAHP.60.A.301111 Round Multi-Band Antenna with SMA Connector, GPS
- RS Stock No.:
- 690-803
- Mfr. Part No.:
- XAHP.60.A.301111
- Brand:
- Taoglas
Subtotal (1 unit)*
£275.48
(exc. VAT)
£330.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £275.48 |
*price indicative
- RS Stock No.:
- 690-803
- Mfr. Part No.:
- XAHP.60.A.301111
- Brand:
- Taoglas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Taoglas | |
RF Protocols | GPS | |
Frequency Range | 1176.45 → 1603 MHz | |
Connector Type | SMA | |
Antenna Physical Form | Round | |
Antenna Mounting Type | Screw | |
Gain | 27.3dB | |
Internal/External | External | |
Series | XAHP.60 | |
Lead Length | 3000mm | |
Select all | ||
---|---|---|
Brand Taoglas | ||
RF Protocols GPS | ||
Frequency Range 1176.45 → 1603 MHz | ||
Connector Type SMA | ||
Antenna Physical Form Round | ||
Antenna Mounting Type Screw | ||
Gain 27.3dB | ||
Internal/External External | ||
Series XAHP.60 | ||
Lead Length 3000mm | ||
- COO (Country of Origin):
- TW
The Taoglas Permanent Mount active multi-band GNSS antenna that has been carefully designed for high performance cm-level positional accuracy on the full GNSS spectrum. This allows the user to achieve higher location accuracy, as well as stability of position tracking in urban environments with their device. It has excellent performance across the full bandwidth of the antenna and its design has an even gain across the hemisphere giving almost excellent, broad axial ratio which in turn makes it resilient to multipath rejection and excellent phase center stability.
Excellent out of band rejection
Permanent mount and robust IP67 rated enclosure
Cable 3m RG 174
Connector SMA(M) Straight
Permanent mount and robust IP67 rated enclosure
Cable 3m RG 174
Connector SMA(M) Straight
