TE Connectivity L000836-05 FPC Multiband Antenna with MHF1 Connector, 5G

View all Multi-Band Antennas

Subtotal (1 box of 2000 units)*

£2,350.00

(exc. VAT)

£2,820.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
2000 +£1.175£2,350.00

*price indicative

RS Stock No.:
426-120
Mfr. Part No.:
L000836-05
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

RF Protocols

5G

Frequency Range

617 → 5000 MHz

Connector Type

MHF1

Gain

5.5dB

Antenna Physical Form

FPC

Internal/External

Internal

Antenna Mounting Type

Adhesive

Lead Length

250mm

Series

L000836

Antenna Directivity

Omnidirectional

Includes Lead

Yes

Physical Form

PCB

COO (Country of Origin):
CN

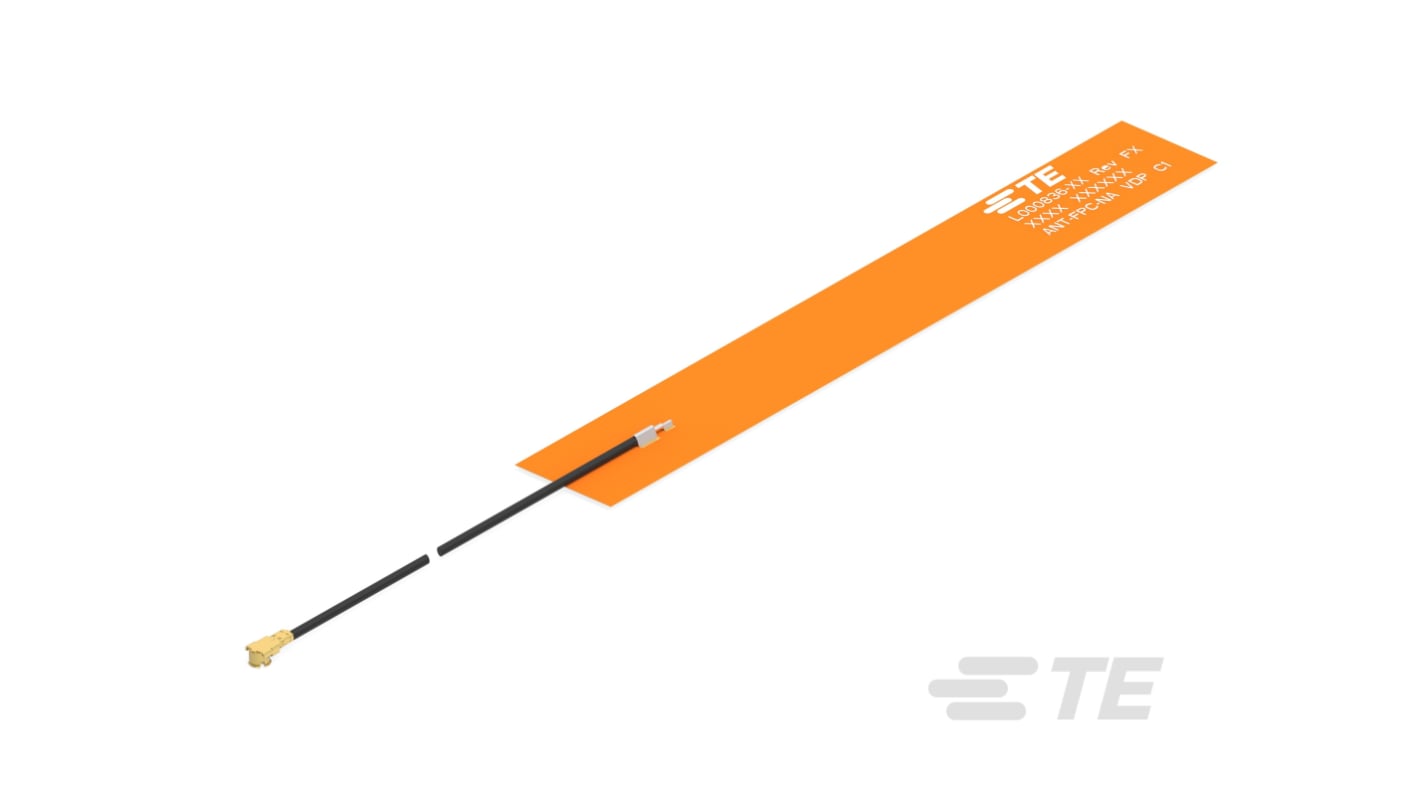

The TE Connectivity Antenna is designed for internal or embedded applications, featuring a flexible printed circuit board structure that enhances signal efficiency. It operates within multi-band frequencies ranging from 617 to 6000 megahertz, making it highly compatible with cellular and fifth-generation network technologies. The omnidirectional signal transmission and single connection port ensure seamless and stable connectivity. Designed for adhesive-based installation, it integrates smoothly into various devices. The linear signal orientation contributes to consistent communication quality. The coaxial cable comes with a maximum insulation diameter of 1.13 millimetres, ensuring strong signal transmission. The precision classification is standard, and packaging is available in both bag and box formats. This antenna meets North American network standards and supports advanced wireless applications.

Antenna connection type is MHF MHF1 UFL and UMCC
Maximum voltage standing wave ratio is less than 2.7 to 1
Peak signal boost ranges between 3 and 6 decibels isotropic
Maximum signal boost is 5.5 decibels
Weight of the product is 1.8 grams
