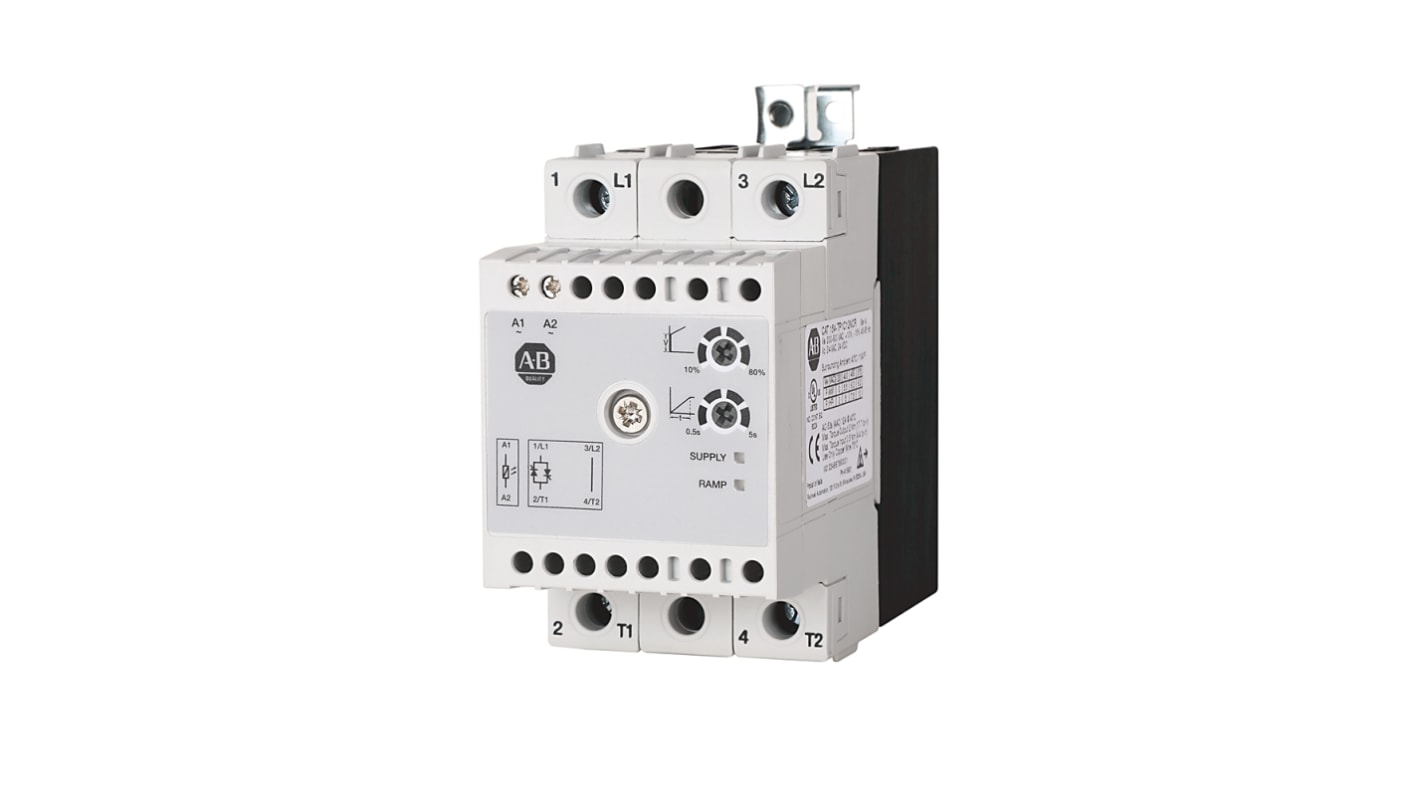

Rockwell Automation Soft Start, Soft Start, 15 kW, 600 V ac, 3 Phase, IP20

Need to protect your equipment against current surges during startup? Use this soft starter from Rockwell Automation. It's made from robust polyamide 66, which is a nylon material that's durable and resistant to the impacts and abrasion you'd expect in harsh industrial environments. An IP20 rating indicates the unit is touch-proof and shielded from objects larger than 12mm, which boosts workplace safety. This component has a current rating of 25A, which means it's ideally suited for heavy-duty electrical systems. You'll find it used in many applications that need a smooth start, including overhead doors and material handling equipment.

• Broad operating temperature range between -40°C and +60°C for use in tough environments
• Voltage rating of 600V AC suited to high-power applications
• Red LED indicator signals high temperature, for added protection
• DIN rail mount design easily attaches to standard equipment
• Power rating of 15kW for high-power load devices

• cULus
• CE
• IEC 60068-2-6

The Rockwell Automation bulletin 154 starting torque controller (STC) is fully solid state, it does not come equipped with a bypass, and one is not required. The controller is designed to run on full load motor current. It is designed to reduce system shock that is typically seen when directly starting on line voltage. The STC is rated for 600V AC three-phase motor up to 25 A

Fully solid-state
Operating Temperature -40°C to 60 °C

Yes, this component has a UL-94 V0 flammability rating, indicating that it will stop burning after 10 seconds if there's a fire.
