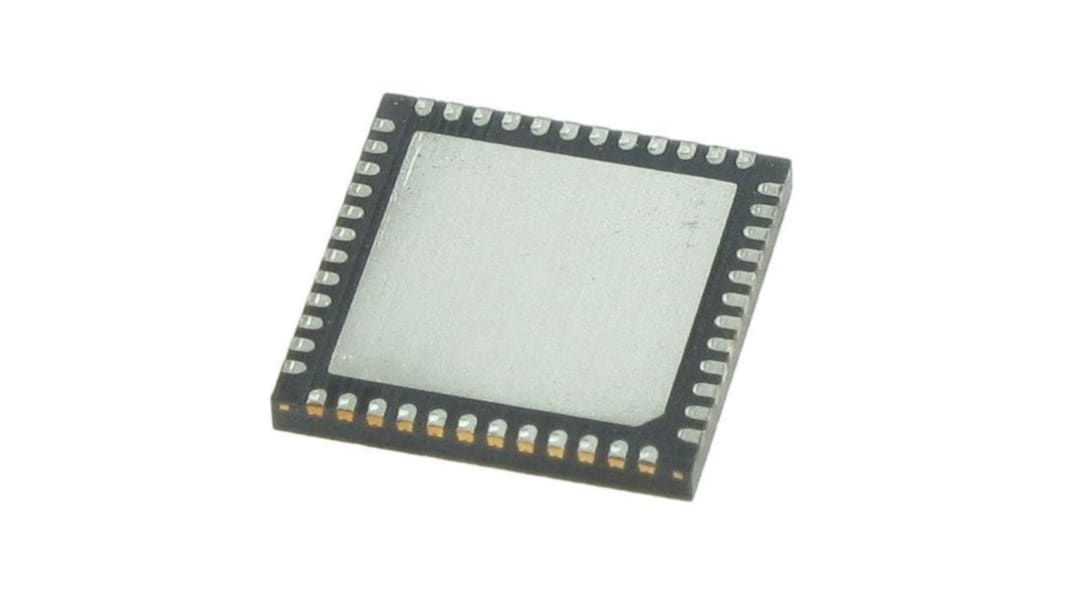

Toshiba TB67H401FTG(O,EL), Brushed Motor Driver IC 48-Pin, VQFN
- RS Stock No.:
- 214-8070
- Mfr. Part No.:
- TB67H401FTG(O,EL)
- Brand:
- Toshiba
Save 38% when you buy 2000 units
Subtotal (1 pack of 5 units)*
£9.82
(exc. VAT)
£11.785
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,450 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £1.964 | £9.82 |
50 - 95 | £1.744 | £8.72 |
100 - 495 | £1.572 | £7.86 |
500 - 1995 | £1.31 | £6.55 |
2000 + | £1.206 | £6.03 |
*price indicative
- RS Stock No.:
- 214-8070
- Mfr. Part No.:
- TB67H401FTG(O,EL)
- Brand:
- Toshiba
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Toshiba | |
Motor Type | Brushed DC | |
Output Configuration | Dual Half Bridge | |
Maximum Output Current | 6A | |
Maximum Supply Voltage | 5 V | |
Mounting Type | Surface Mount | |
Package Type | VQFN | |
Pin Count | 48 | |
Select all | ||
---|---|---|
Brand Toshiba | ||
Motor Type Brushed DC | ||
Output Configuration Dual Half Bridge | ||
Maximum Output Current 6A | ||
Maximum Supply Voltage 5 V | ||
Mounting Type Surface Mount | ||
Package Type VQFN | ||
Pin Count 48 | ||
The Toshiba brushed DC motor driver has dual integrated H-bridges that can be controlled independently. This IC is fabricated with the BiCD process and is rated at 50V, 3.0A/ch.
Capable of driving two brushed DC motors using dual H-Bridge mode (3.0 A/ch)
Capable of driving one brushed DC motor with large current, using single H-bridge mode (6.0 A)
Current limit and current limit detection output for each H-bridge
Low Ron (on) MOSFETs (High side + Low side=0.49 Ω (typ.), in the dual H-bridge mode)
Error detection features (Thermal shutdown (TSD), Over current detection (ISD), Power-on-reset (POR))
Error detection signal output (Error Output)
Internal VCC (5 V) regulator enables the driver to be operated with a single power supply (VM)
Adjustable internal PWM frequency using external components
Small package with thermal pad. (QFN48: 7.0 mm x 7.0 mm)
Capable of driving one brushed DC motor with large current, using single H-bridge mode (6.0 A)
Current limit and current limit detection output for each H-bridge
Low Ron (on) MOSFETs (High side + Low side=0.49 Ω (typ.), in the dual H-bridge mode)
Error detection features (Thermal shutdown (TSD), Over current detection (ISD), Power-on-reset (POR))
Error detection signal output (Error Output)
Internal VCC (5 V) regulator enables the driver to be operated with a single power supply (VM)
Adjustable internal PWM frequency using external components
Small package with thermal pad. (QFN48: 7.0 mm x 7.0 mm)
