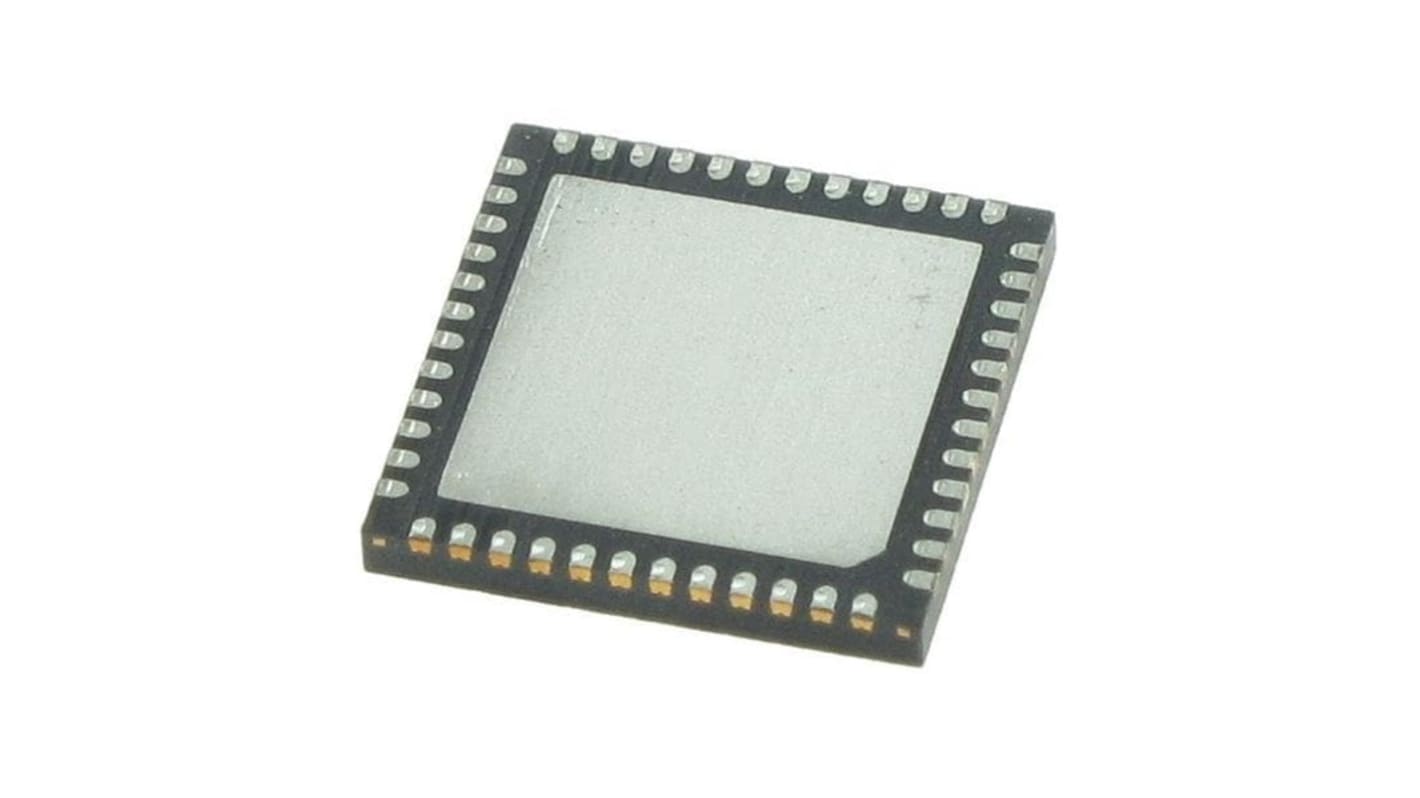

Toshiba TB67H420FTG(O,EL), Brushed DC Motor DC Motor Driver 48-Pin, VQFN

View all Motor Driver ICs

Subtotal (1 pack of 2 units)*

£7.76

(exc. VAT)

£9.32

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 3,890 unit(s), ready to ship
Units
Per unit
Per Pack*
2 +£3.88£7.76

*price indicative

Packaging Options:
RS Stock No.:
214-8074
Mfr. Part No.:
TB67H420FTG(O,EL)
Brand:
Toshiba
Find similar products by selecting one or more attributes.
Select all

Brand

Toshiba

Product Type

DC Motor Driver

Motor Type

Brushed DC Motor

Configuration

Dual

Mount Type

Surface

Package Type

VQFN

Pin Count

48

Output Current

9A

Maximum Supply Voltage

47V

Minimum Supply Voltage

10V

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

85°C

Standards/Approvals

RoHS

Length

7mm

Series

TB67H420FTG

Height

1mm

Automotive Standard

No

The Toshiba brushed DC motor driver has sense resistor less current control. The internal H-bridge can be controlled independently, as a two brushed DC motor driver or a single stepping motor driver using the dual H-bridge mode. This IC is fabricated with the BiCD process and is rated at 50 V, 9.0 A

Supporting large current (9.0 A) and high voltage (50 V) brushed DC motor operation

Capable of driving two brushed DC motors using dual H-Bridge mode

Capable of driving one stepping motor using dual H-bridge mode

Built-in sense resistor less current control. (ACDS: Advanced Current Detection System)

Low Rds (on) MOSFETs (High side+ Low side=0.33 Ω (typ.))

Error detection features (Thermal shutdown (TSD), Over current detection (ISD), Power-on-reset (POR), and Motor load open detection (OPD))

Error detection signal output (Error Output)

Internal VCC (5 V) regulator enables the driver to be operated with a single power supply (VM)

Adjustable constant current PWM frequency using external components

Small package with thermal pad. (QFN48: 7.0 mm x 7.0 mm)
