- RS Stock No.:
- 214-8072
- Mfr. Part No.:
- TB67H410FTG(O,EL)
- Brand:
- Toshiba
3705 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£2.286
(exc. VAT)
£2.743
(inc. VAT)
Units | Per unit | Per Pack* |
5 + | £2.286 | £11.43 |
*price indicative |
- RS Stock No.:
- 214-8072
- Mfr. Part No.:
- TB67H410FTG(O,EL)
- Brand:
- Toshiba
Technical Reference
Legislation and Compliance

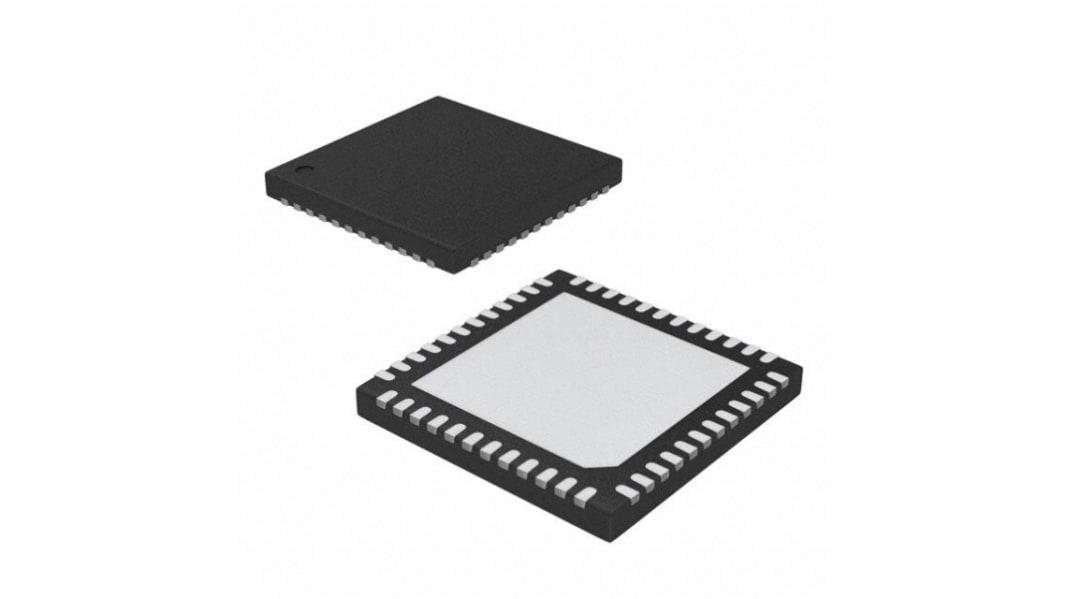

Product Details
The Toshiba brushed DC motor driver of a PWM chopper-type is a dual channel H-SW driver which can control two brushed DC motors. The parallel control function (Large mode) of an output part is built in, and 1ch high current drive is also possible. It is fabricated with the BiCD process, the TB67H410 is maximum rated at 50V, 2.5A(2ch)/ 5.0A(1ch).
2 drive modes (PWM controlled constant-current/ direct PWM)
4 operation modes (Clock-wise/Counter clock-wise/Brake/Stop(Off))
Low on-resistance output stage (High side+Low side:0.8Ω(typ.))
High voltage and current
Built-in error detection circuits (Thermal shutdown(TSD), over-current detection (ISD), and power-on reset (POR)
Built-in regulator allows the TB67H410 to function with a single VM power supply
Able to customize PWM (internal chopping) frequency by external components
4 operation modes (Clock-wise/Counter clock-wise/Brake/Stop(Off))
Low on-resistance output stage (High side+Low side:0.8Ω(typ.))
High voltage and current
Built-in error detection circuits (Thermal shutdown(TSD), over-current detection (ISD), and power-on reset (POR)
Built-in regulator allows the TB67H410 to function with a single VM power supply
Able to customize PWM (internal chopping) frequency by external components
Specifications
Attribute | Value |
---|---|
Motor Type | Brushed DC |
Output Configuration | Dual Half Bridge |
Maximum Output Current | 5A |
Maximum Supply Voltage | 47 V |
Mounting Type | Surface Mount |
Package Type | WQFN |
Pin Count | 48 |
