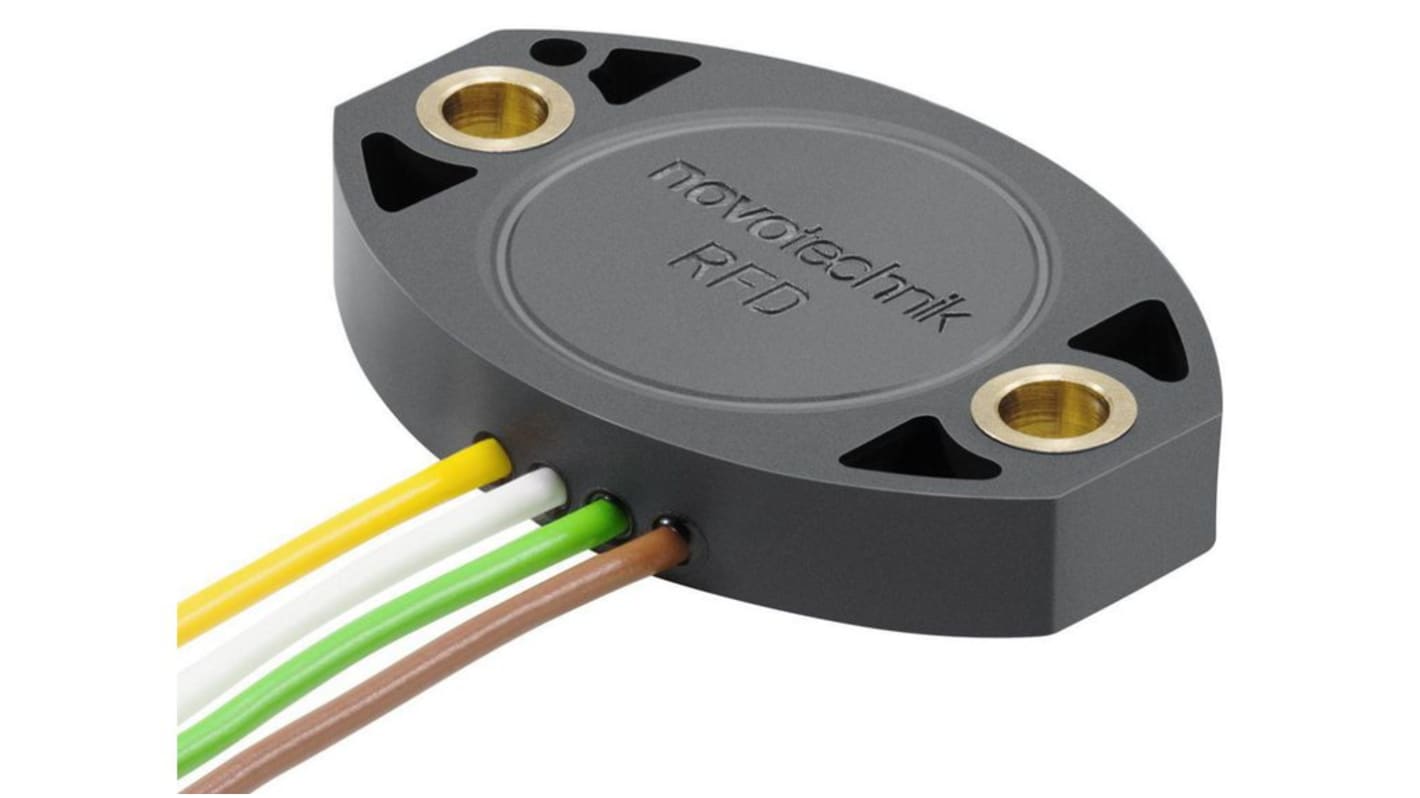

Novotechnik RFD-4000 Series Hall Effect Position Sensor 5.5V, Analogue Signal
- RS Stock No.:
- 288-3613
- Distrelec Article No.:
- 300-24-164
- Mfr. Part No.:
- RFD-4021-724-213-411
- Brand:
- Novotechnik
Subtotal (1 unit)*
£59.86
(exc. VAT)
£71.83
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £59.86 |
*price indicative
- RS Stock No.:
- 288-3613
- Distrelec Article No.:
- 300-24-164
- Mfr. Part No.:
- RFD-4021-724-213-411
- Brand:
- Novotechnik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Novotechnik | |
| Encoder Technology | Hall Effect | |
| Product Type | Position Sensor | |
| Series | RFD-4000 | |
| Output Signal Type | Analogue | |
| Interface Type | Analogue | |
| Terminal Type | Cable Terminal | |
| IP Rating | IP68, IP69, IP67 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Overall Depth | 53mm | |
| Standards/Approvals | RoHS | |
| Overall Width | 70mm | |
| Overall Height | 80mm | |
| Maximum Operating Temperature | 125°C | |
| Mount Type | Cable | |
| Switching Frequency | 2000Hz | |
| Select all | ||
|---|---|---|
Brand Novotechnik | ||
Encoder Technology Hall Effect | ||
Product Type Position Sensor | ||
Series RFD-4000 | ||
Output Signal Type Analogue | ||
Interface Type Analogue | ||
Terminal Type Cable Terminal | ||
IP Rating IP68, IP69, IP67 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Overall Depth 53mm | ||
Standards/Approvals RoHS | ||
Overall Width 70mm | ||
Overall Height 80mm | ||
Maximum Operating Temperature 125°C | ||
Mount Type Cable | ||
Switching Frequency 2000Hz | ||
- COO (Country of Origin):
- DE
The Angular Hall Effect Position Sensor is engineered with short circuit protection against both GND and + operating voltage. Featuring a simple screw mounting mechanism. With a very favourable price/performance ratio, this sensor provides cost effective yet high quality sensing solutions. It is suitable for use in machine and plant construction, pedals, steering systems, tool building, and other industrial applications.
Very compact size
Transmissive measurement and hall effect
Unlimited mechanical lifetime
