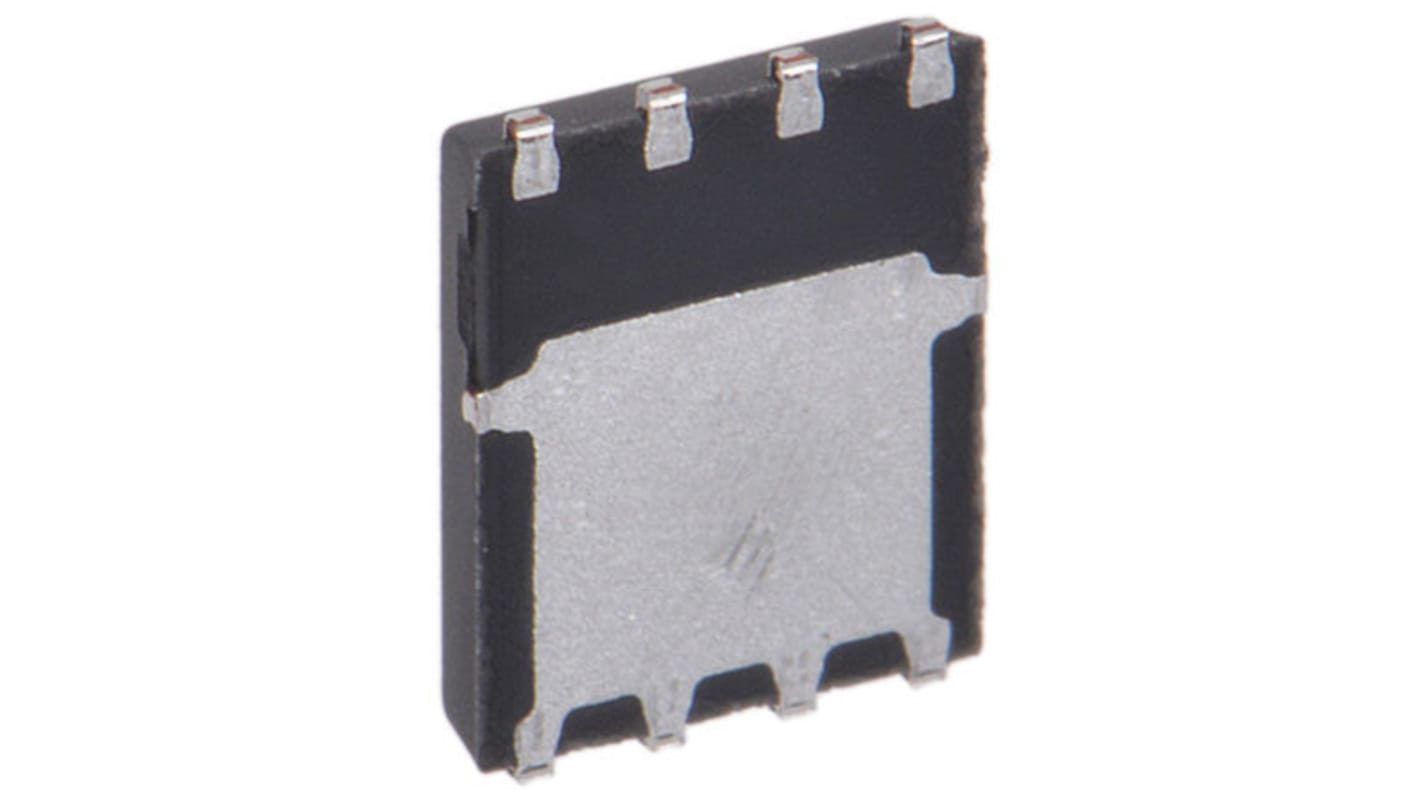

Vishay ThunderFET Type N-Channel MOSFET, 30 A, 80 V Enhancement, 8-Pin PowerPAK 1212 SIS468DN-T1-GE3
- RS Stock No.:
- 787-9383
- Mfr. Part No.:
- SIS468DN-T1-GE3
- Brand:
- Vishay
Subtotal (1 tape of 5 units)*
£5.80
(exc. VAT)
£6.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2,960 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 + | £1.16 | £5.80 |
*price indicative
- RS Stock No.:
- 787-9383
- Mfr. Part No.:
- SIS468DN-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 30A | |
| Maximum Drain Source Voltage Vds | 80V | |
| Series | ThunderFET | |
| Package Type | PowerPAK 1212 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 32mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 52W | |
| Forward Voltage Vf | 0.78V | |
| Typical Gate Charge Qg @ Vgs | 18.1nC | |
| Maximum Operating Temperature | 150°C | |
| Height | 1.12mm | |
| Standards/Approvals | No | |
| Width | 3.4 mm | |
| Length | 3.4mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 30A | ||
Maximum Drain Source Voltage Vds 80V | ||
Series ThunderFET | ||
Package Type PowerPAK 1212 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 32mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 52W | ||
Forward Voltage Vf 0.78V | ||
Typical Gate Charge Qg @ Vgs 18.1nC | ||
Maximum Operating Temperature 150°C | ||
Height 1.12mm | ||
Standards/Approvals No | ||
Width 3.4 mm | ||
Length 3.4mm | ||
Automotive Standard No | ||
N-Channel MOSFET, Medium Voltage/ThunderFET®, Vishay Semiconductor
MOSFET Transistors, Vishay Semiconductor
