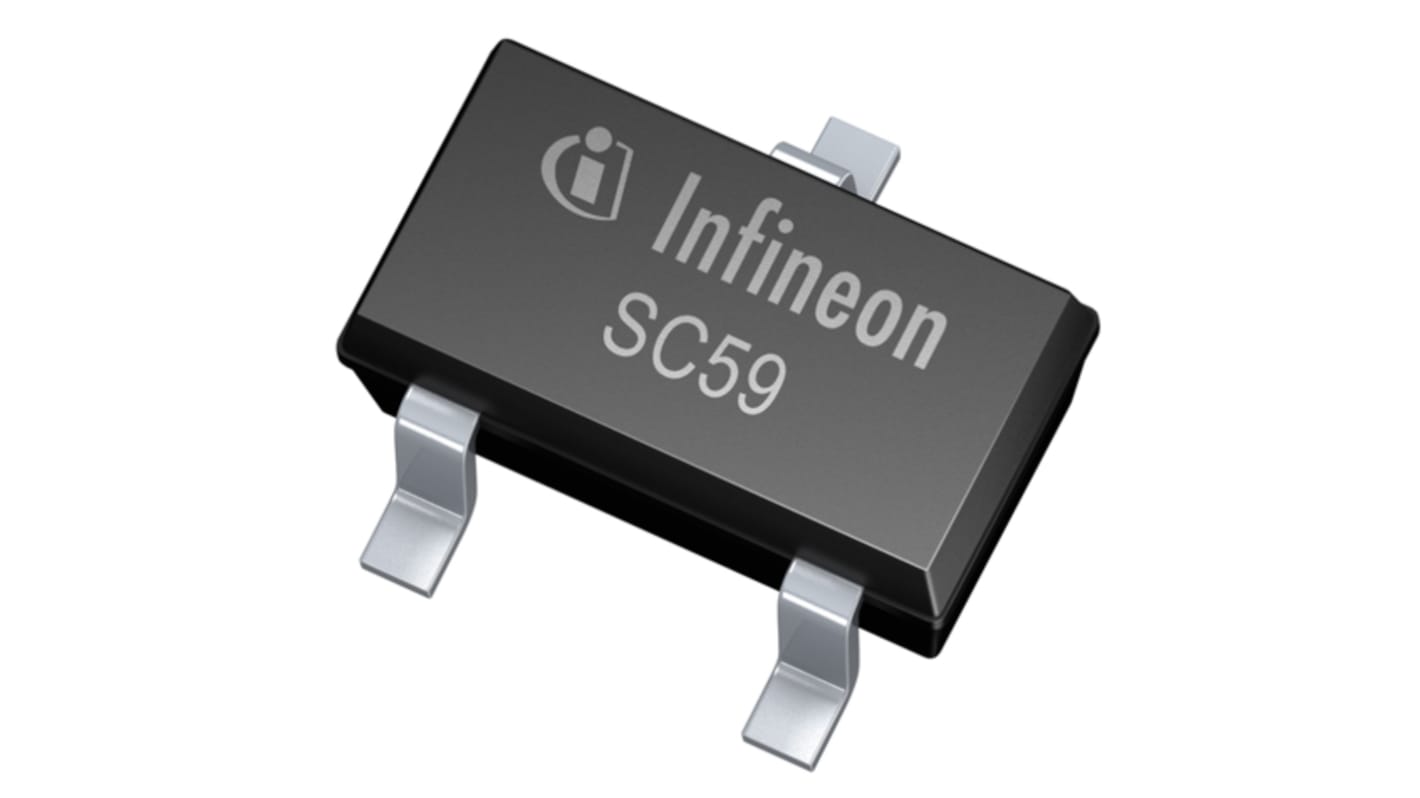

Infineon BSR202N Type N-Channel MOSFET, 3.8 A, 20 V Enhancement, 3-Pin PG-SC-59

RS Stock No.:: 273-7311
Mfr. Part No.:: BSR202NL6327HTSA1
Brand:: Infineon

Infineon BSR202N Type N-Channel MOSFET, 3.8 A, 20 V Enhancement, 3-Pin PG-SC-59

Bulk discount available

Subtotal (1 pack of 25 units)*

£6.675

(exc. VAT)

£8.00

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2,225 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
25 - 25	£0.267	£6.68
50 - 75	£0.262	£6.55
100 - 225	£0.245	£6.13
250 - 975	£0.226	£5.65
1000 +	£0.222	£5.55

*price indicative

RS Stock No.:: 273-7311
Mfr. Part No.:: BSR202NL6327HTSA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	3.8A
	Maximum Drain Source Voltage Vds	20V
	Package Type	PG-SC-59
	Series	BSR202N
	Mount Type	Surface
	Pin Count	3
	Maximum Drain Source Resistance Rds	33mΩ
	Channel Mode	Enhancement
	Typical Gate Charge Qg @ Vgs	5.8nC
	Minimum Operating Temperature	-55°C
	Forward Voltage Vf	0.8V
	Maximum Gate Source Voltage Vgs	±12 V
	Maximum Operating Temperature	150°C
	Standards/Approvals	RoHS Compliant
	Width	0.9 mm
	Length	1.3mm
	Height	0.8mm
	Automotive Standard	AEC-Q101
	Distrelec Product Id	304-41-650

	Select all
	Brand Infineon
	Product Type MOSFET
	Channel Type Type N
	Maximum Continuous Drain Current Id 3.8A
	Maximum Drain Source Voltage Vds 20V
	Package Type PG-SC-59
	Series BSR202N
	Mount Type Surface
	Pin Count 3
	Maximum Drain Source Resistance Rds 33mΩ
	Channel Mode Enhancement
	Typical Gate Charge Qg @ Vgs 5.8nC
	Minimum Operating Temperature -55°C
	Forward Voltage Vf 0.8V
	Maximum Gate Source Voltage Vgs ±12 V
	Maximum Operating Temperature 150°C
	Standards/Approvals RoHS Compliant
	Width 0.9 mm
	Length 1.3mm
	Height 0.8mm
	Automotive Standard AEC-Q101
	Distrelec Product Id 304-41-650

Datasheet - BSR202NL6327HTSA1

The Infineon MOSFET is a N channel small signal MOSFET that meet and exceed the highest quality requirements in well known industry standard packages. With unmatched levels of reliability and manufacturing capacity these components are ideally suited for a wide variety of applications including LED lighting, ADAS, body control units, SMPS and motor control.

RoHS compliant

Avalanche rated

Pb free lead plating

Enhancement mode

Qualified according to AEC Q101
