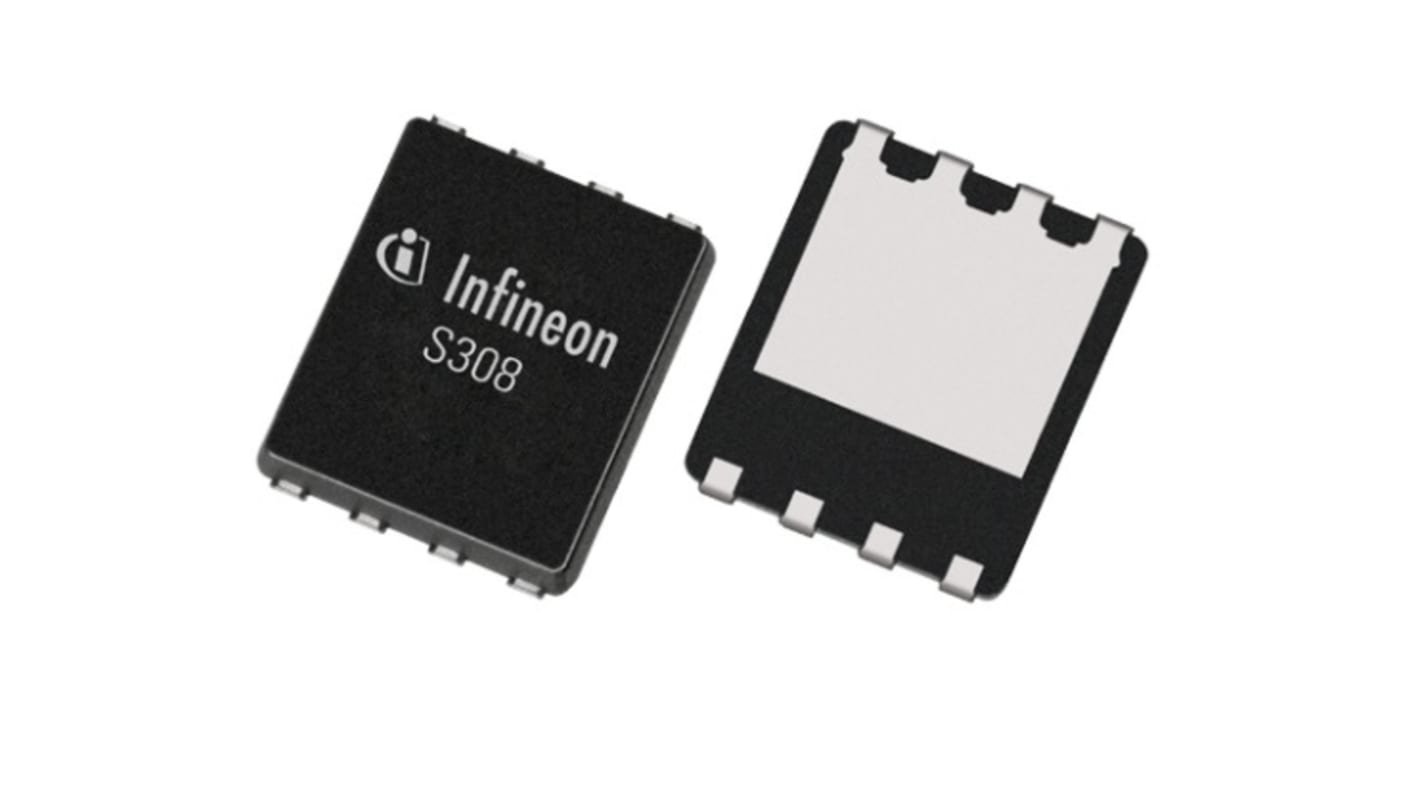

Infineon BSZ N-Channel MOSFET, 40 A, 30 V N, 8-Pin TSDSON BSZ0506NSATMA1
- RS Stock No.:
- 260-5079
- Mfr. Part No.:
- BSZ0506NSATMA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£5.65
(exc. VAT)
£6.80
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 01 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.13 | £5.65 |
| 50 - 120 | £1.006 | £5.03 |
| 125 - 245 | £0.736 | £3.68 |
| 250 - 495 | £0.622 | £3.11 |
| 500 + | £0.508 | £2.54 |
*price indicative
- RS Stock No.:
- 260-5079
- Mfr. Part No.:
- BSZ0506NSATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 40A | |
| Maximum Drain Source Voltage Vds | 30V | |
| Package Type | TSDSON | |
| Series | BSZ | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 5.30mΩ | |
| Channel Mode | N | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +150°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 40A | ||
Maximum Drain Source Voltage Vds 30V | ||
Package Type TSDSON | ||
Series BSZ | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 5.30mΩ | ||
Channel Mode N | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +150°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The Infineon N channel optiMOS power MOSFET operates in enhancement mode & optimized for high performance buck converters.
Superior thermal resistance
Pb free lead plating
