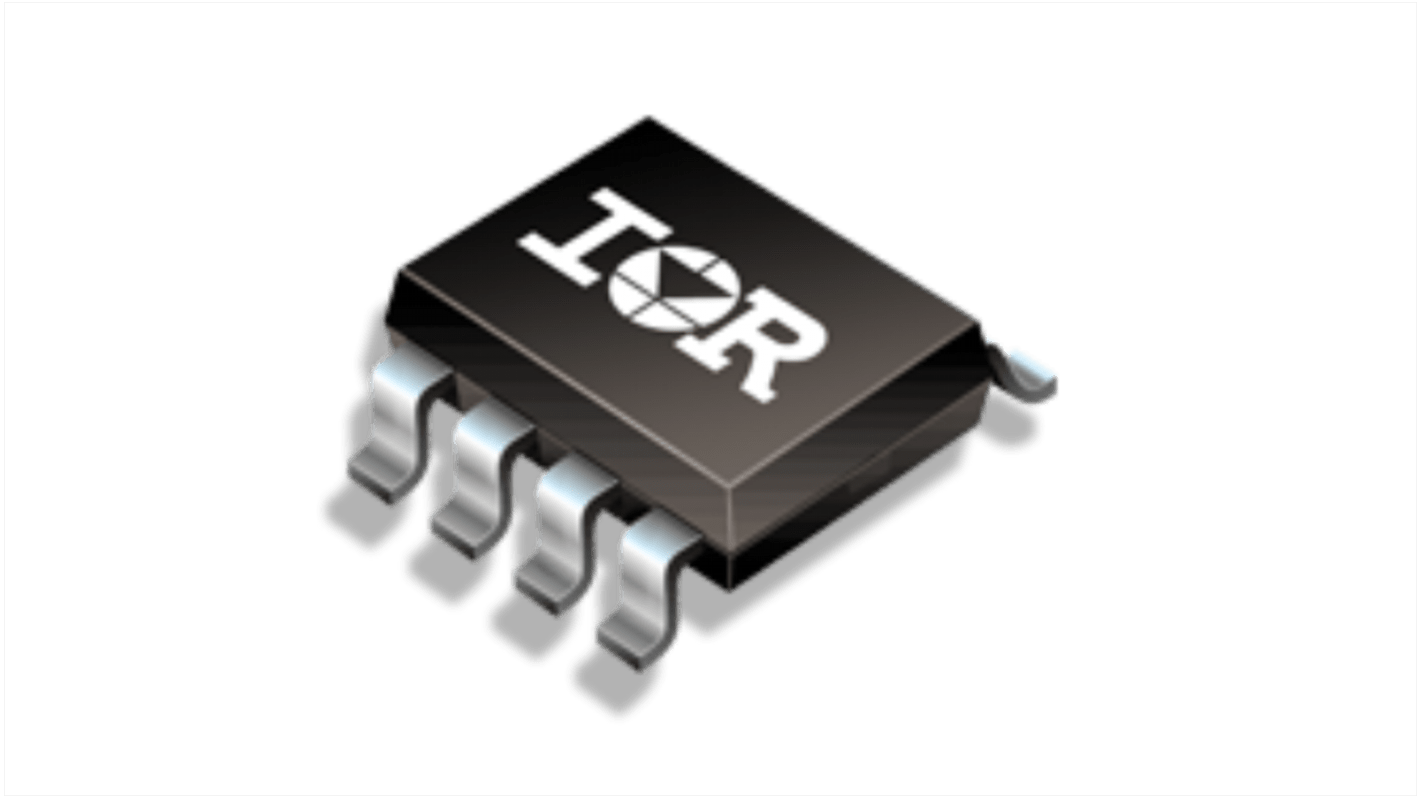

Infineon HEXFET Type N-Channel MOSFET, 10 A, 80 V, 8-Pin SO-8

RS Stock No.:: 257-9321
Mfr. Part No.:: IRF7854TRPBF
Brand:: Infineon

Infineon HEXFET Type N-Channel MOSFET, 10 A, 80 V, 8-Pin SO-8

Subtotal (1 reel of 4000 units)*

£2,076.00

(exc. VAT)

£2,492.00

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 30 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
4000 +	£0.519	£2,076.00

*price indicative

RS Stock No.:: 257-9321
Mfr. Part No.:: IRF7854TRPBF
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Channel Type	Type N
	Product Type	MOSFET
	Maximum Continuous Drain Current Id	10A
	Maximum Drain Source Voltage Vds	80V
	Package Type	SO-8
	Series	HEXFET
	Mount Type	Surface
	Pin Count	8
	Maximum Drain Source Resistance Rds	13.4mΩ
	Minimum Operating Temperature	-55°C
	Forward Voltage Vf	1.3V
	Maximum Power Dissipation Pd	2.5W
	Typical Gate Charge Qg @ Vgs	27nC
	Maximum Gate Source Voltage Vgs	±20 V
	Maximum Operating Temperature	150°C
	Standards/Approvals	RoHS Compliant
	Automotive Standard	No

	Select all
	Brand Infineon
	Channel Type Type N
	Product Type MOSFET
	Maximum Continuous Drain Current Id 10A
	Maximum Drain Source Voltage Vds 80V
	Package Type SO-8
	Series HEXFET
	Mount Type Surface
	Pin Count 8
	Maximum Drain Source Resistance Rds 13.4mΩ
	Minimum Operating Temperature -55°C
	Forward Voltage Vf 1.3V
	Maximum Power Dissipation Pd 2.5W
	Typical Gate Charge Qg @ Vgs 27nC
	Maximum Gate Source Voltage Vgs ±20 V
	Maximum Operating Temperature 150°C
	Standards/Approvals RoHS Compliant
	Automotive Standard No

Datasheet - IRF7854TRPBF

The Infineon IRF series is the 80V n channel strong IRFET power mosfet in a SO 8 package. The strong IRFET power mosfet family is optimized for low RDS (on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness.

Optimized for broadest availability from distribution partners

Product qualification according to JEDEC standard

Industry standard surface mount package

Silicon optimized for applications switching below 100 kHz
