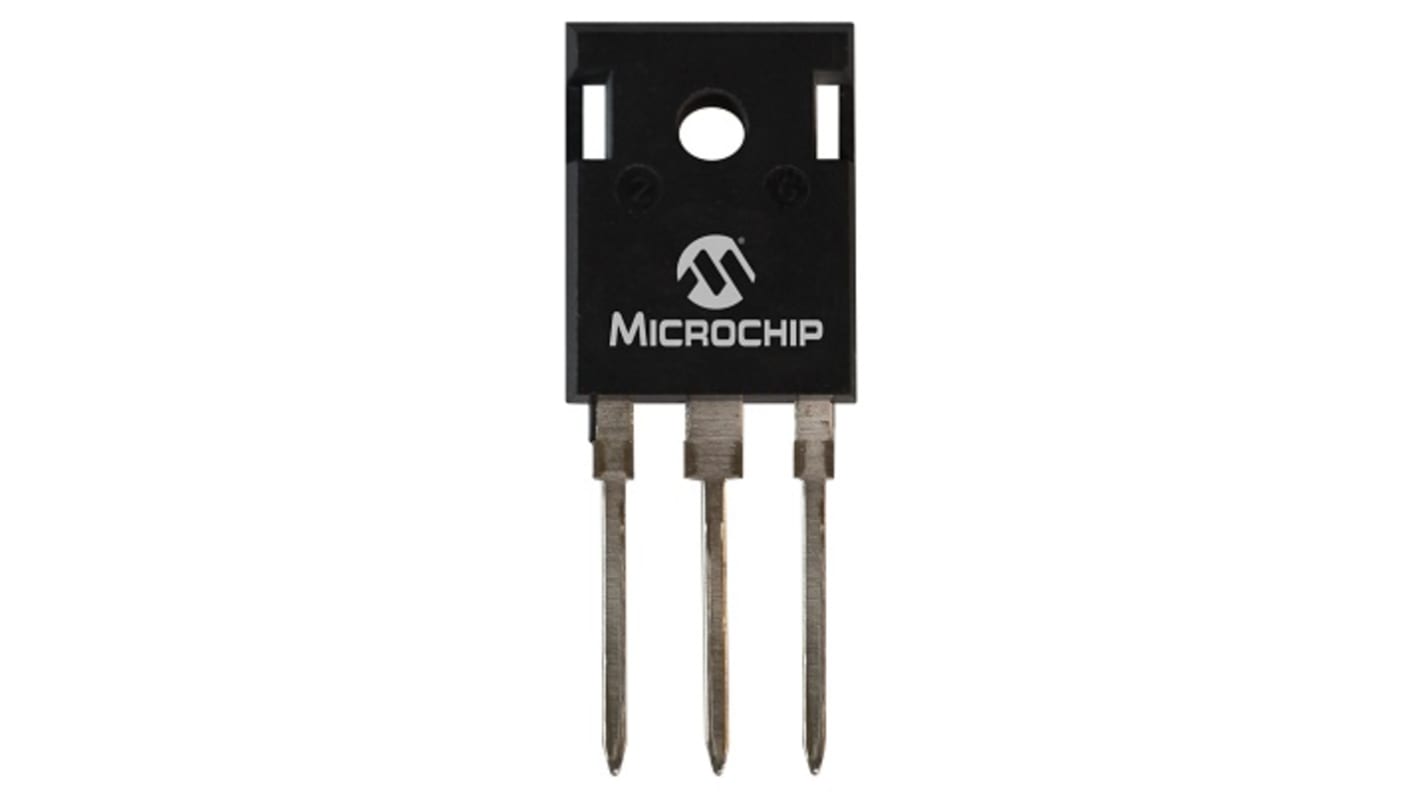

Microchip MSC040SMA120B Type N-Channel MOSFET, 46 A, 1200 V TO-247 MSC040SMA120B
- RS Stock No.:
- 241-9265
- Mfr. Part No.:
- MSC040SMA120B
- Brand:
- Microchip
Bulk discount available
Subtotal (1 unit)*
£15.68
(exc. VAT)
£18.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 143 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £15.68 |
| 5 - 9 | £15.37 |
| 10 - 99 | £15.05 |
| 100 + | £14.39 |
*price indicative
- RS Stock No.:
- 241-9265
- Mfr. Part No.:
- MSC040SMA120B
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 46A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Package Type | TO-247 | |
| Series | MSC040SMA120B | |
| Mount Type | Through Hole | |
| Maximum Drain Source Resistance Rds | 8Ω | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 2 V | |
| Typical Gate Charge Qg @ Vgs | 137nC | |
| Maximum Power Dissipation Pd | 1.6W | |
| Forward Voltage Vf | 1.8V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 46A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Package Type TO-247 | ||
Series MSC040SMA120B | ||
Mount Type Through Hole | ||
Maximum Drain Source Resistance Rds 8Ω | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 2 V | ||
Typical Gate Charge Qg @ Vgs 137nC | ||
Maximum Power Dissipation Pd 1.6W | ||
Forward Voltage Vf 1.8V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The Microchip silicon carbide power MOSFET product line from Micro semi increases the performance over silicon MOSFET and silicon IGBT solutions while lowering the total cost of ownership for high voltage applications.
Low capacitances and low gate charge
Fast switching speed due to low internal gate resistance
Stable operation at high junction temperature TJ(max) equal to 175 °C
Fast and reliable body diode
Superior avalanche ruggedness
RoHS compliant
