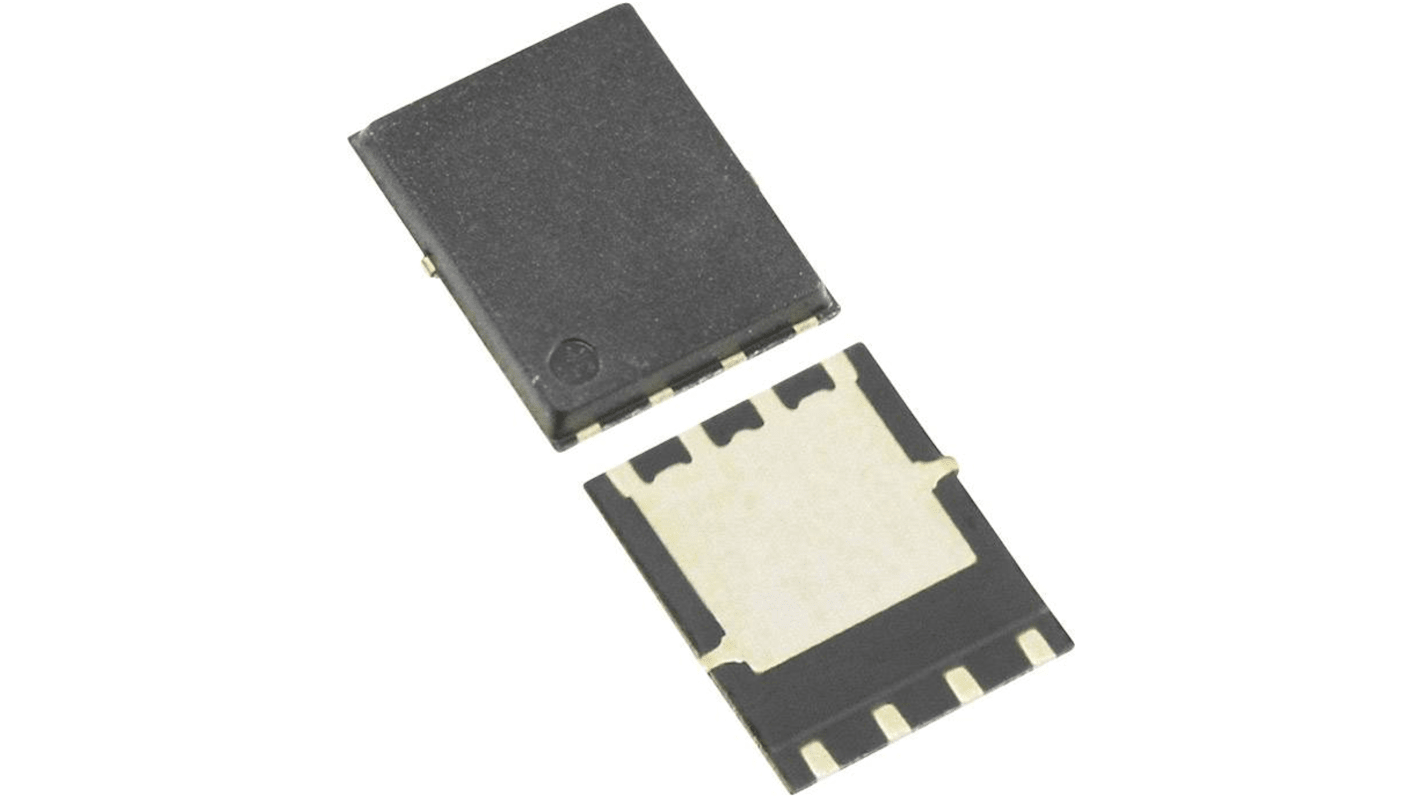

Renesas BEAM N-Channel MOSFET, 50 A, 30 V, 8-Pin WPAK RJK0391DPA-00#J5A
- RS Stock No.:
- 234-7152
- Mfr. Part No.:
- RJK0391DPA-00#J5A
- Brand:
- Renesas Electronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 234-7152
- Mfr. Part No.:
- RJK0391DPA-00#J5A
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
| Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 50 A | |
| Maximum Drain Source Voltage | 30 V | |
| Package Type | WPAK | |
| Series | BEAM | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance | 0.0029 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2.5V | |
| Number of Elements per Chip | 1 | |
| Select all | ||
|---|---|---|
| Brand Renesas Electronics | ||
| Channel Type N | ||
| Maximum Continuous Drain Current 50 A | ||
| Maximum Drain Source Voltage 30 V | ||
| Package Type WPAK | ||
| Series BEAM | ||
| Mounting Type Surface Mount | ||
| Pin Count 8 | ||
| Maximum Drain Source Resistance 0.0029 Ω | ||
| Channel Mode Enhancement | ||
| Maximum Gate Threshold Voltage 2.5V | ||
| Number of Elements per Chip 1 | ||
The Renesas Electronics N-channel single power MOSFET suitable for switching and load switch applications. It has high breakdown voltage of 30 V. It is capable of 4.5 V gate drive.
High speed switching
Low drive current
High density mounting
Low on-resistance
Pb-free
Halogen-free
Low drive current
High density mounting
Low on-resistance
Pb-free
Halogen-free
